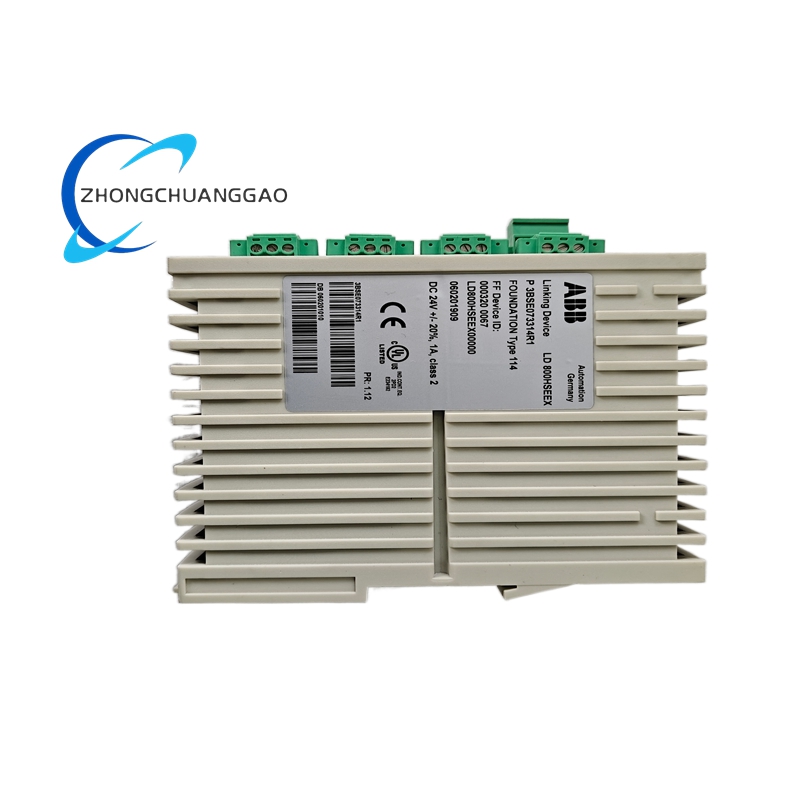

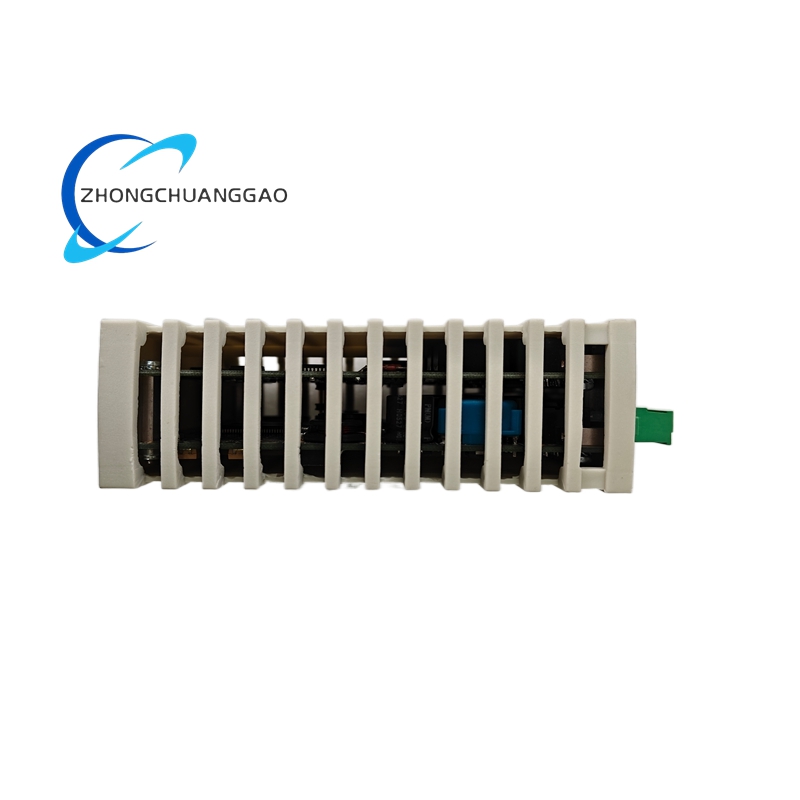

ABB LD800HSE EX 3BSE073314R1

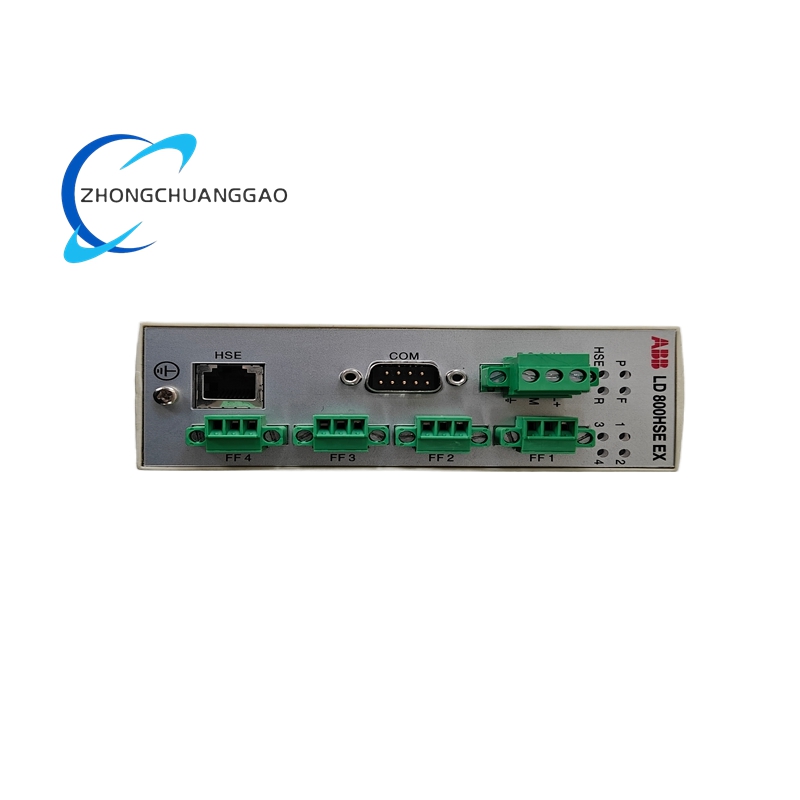

• Communication Ports:
  • One 10BASE-T/100BASE-TX Ethernet port (auto-sensing)
  • Four 31.25 kbit/s H1 fieldbus interfaces
• Standards Compliance:
  • FF HSE Class 42c
  • Supports redundant configuration
• Power Requirements:
  • Operating voltage: 24 V DC (±20%)
  • Typical current consumption: 200 mA
  • Power consumption: Approximately 4.8 W
• Environmental Adaptability:
  • Operating temperature range: 0°C to +55°C
  • Storage temperature range: -20°C to +70°C
  • Relative humidity: 0% to 95% (non-condensing)
• Mechanical Specifications:
  • Dimensions: Length 105 mm, Width 100 mm
  • Weight: Approximately 0.4 kg

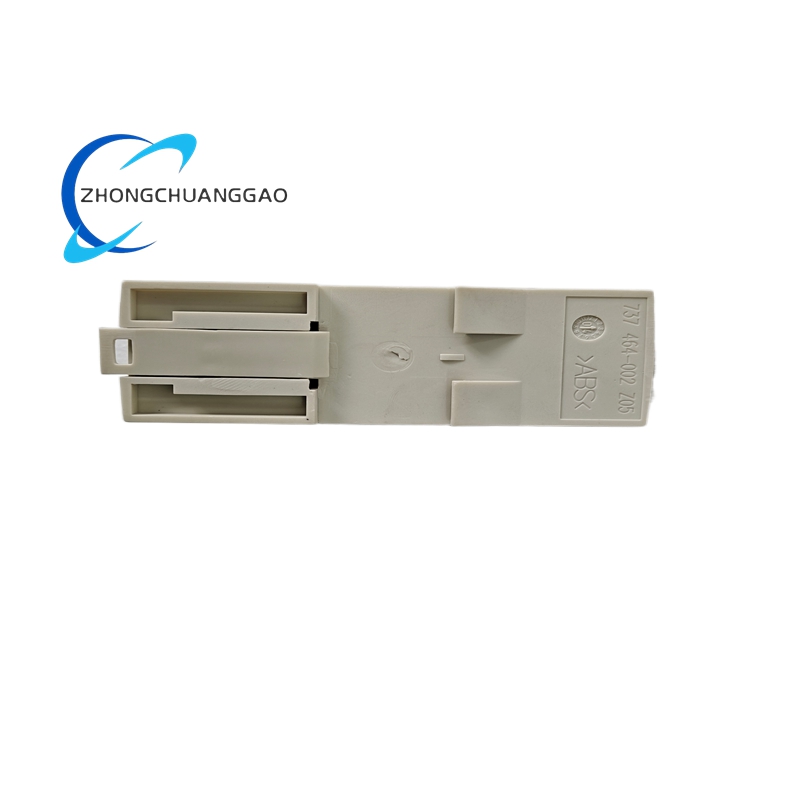

  • Suitable for DIN rail mounting
  • Requires horizontal installation for proper ventilation

Functional Characteristics

• Device Identification: Recognizes devices connected to the H1 links.
• Configuration Management: Configures connected H1 devices through HSE system and network management.
• Function Block Access: Accesses function blocks of connected H1 devices via HSE.
• Process Data Redistribution: Re-publishes process data between H1 links and HSE, and vice versa.
• Alarm and Event Distribution: Distributes alarms and events sent by H1 devices.
• Time Synchronization: Supports time synchronization via SNTP.
• Redundancy Support: Designed for redundant use, ensuring high availability and reliability.
• Diagnostic Capabilities: Provides real-time status information and performance data for proactive maintenance and troubleshooting.
• User-Friendly Interface: Features an intuitive interface and supports various configuration options for easy integration into existing industrial networks.

Application Scenarios

• Process Automation: Widely used in process control systems for industries such as petrochemicals, pharmaceuticals, and energy to monitor and control production processes.
• Factory Automation: Connects various devices within a factory, enabling efficient data transmission and control.
• Cross-Geographical Networks: Suitable for industrial networks spanning multiple locations, ensuring seamless communication between devices at different sites.
• Hazardous Areas: Certified for installation in Zone 2 hazardous areas, making it suitable for use in potentially explosive environments.
• Building Automation: Integrates with building management systems for efficient control of HVAC, lighting, and security systems.
