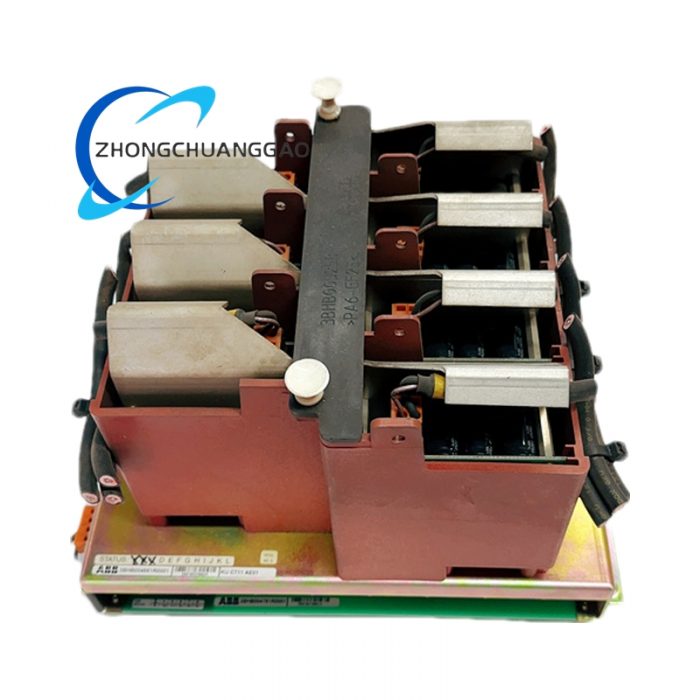

ABB KUC711AE101 3BHB004661R0101 Excitation Controller Module. - Image 1
Click to enlarge
ABB IDPG 940128102 Industrial Digital Control Board/Module
ABB IDPG 940128102 Industrial Digital Control Board/Module
Back to products
ABB KUC720AE01 3BHB003431R0101 3BHB000652R0101 Analog Input Module
ABB KUC720AE01 3BHB003431R0101 3BHB000652R0101 Analog Input Module

ABB KUC711AE101 3BHB004661R0101 Excitation Controller Module.

Technical Specifications

  • Power Supply
    • Rated Voltage: AC 100V – 240V (allowable range AC 85V – 264V)
    • Frequency: 50/60HZ
    • Allowable Instantaneous Power Failure: For instantaneous power failures below 10ms, the operation will continue
    • Power Fuse: AC 250V 5A
    • Inrush Current: Maximum 30A for less than 5ms / AC 100V; Maximum 65A for less than 5ms / AC 200V
    • Power Consumption: 34W
    • DC 24V External Output: 1200mA
  • Control Performance
    • Control Accuracy: ±0.1% (full scale)
    • Response Time: <1ms
  • Mechanical Parameters
    • Dimensions: 85×85×35mm
    • Weight: Approximately 350g
    • Housing Material: Aluminum Alloy
  • Environmental Adaptability
    • Operating Temperature Range: -25℃ to 55℃
    • Storage Temperature Range: -40℃ to 85℃
    • Protection Level: IP67
Category:
Description

Functional Features

  • High Performance: It adopts advanced digital signal processing technology and control algorithms to achieve fast and accurate excitation control.
  • Diversified Control Modes: It supports multiple control modes such as constant terminal voltage control and constant excitation current control, facilitating users to choose according to specific application requirements.
  • Modular Design: It adopts a modular design, which is convenient for users to configure and maintain. Meanwhile, the controller is scalable and can be integrated with other ABB modules.
  • Easy Programming: It supports multiple programming languages such as C and C++, facilitating users to conduct software development and logic control.
  • High Reliability: It is suitable for harsh industrial environments and has overload protection, short-circuit protection and overheating protection functions.
  • Friendly Human-Machine Interface: It is equipped with a user-friendly human-machine interface, facilitating users to perform parameter setting, status monitoring and fault diagnosis.

Application Scenarios

  • Power Generation Industry: It is used for the excitation control of generators in thermal power plants, hydropower plants and nuclear power plants, and also applicable to the excitation control of new energy power generation systems such as wind power and solar power.
  • Manufacturing Industry: It is used for the automatic control of production lines, data collection and process monitoring, and integrated into robots, conveyors and other industrial equipment to achieve precise control.
  • Other Industries: It is used in the automatic control of lighting, heating, ventilation and safety systems in the building automation field, and also applied to the infrastructure management of transportation systems and water treatment facilities.
