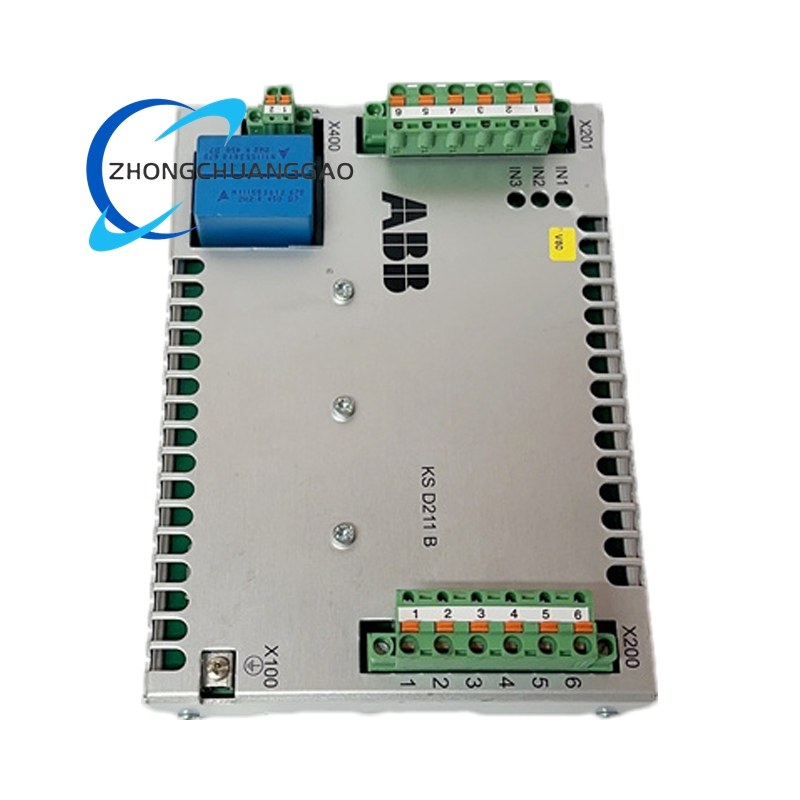

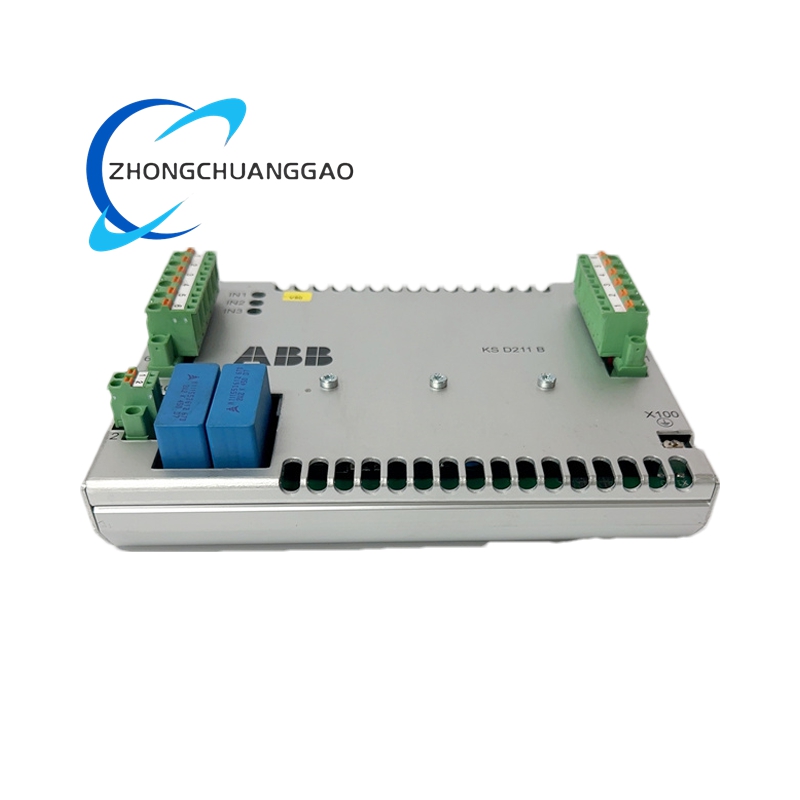

ABB KSD211B 3BHE022455R1101

• Switching Frequency:
  • Capable of high-frequency switching (up to several kHz) for applications requiring rapid on-off cycling, such as PWM control of motors or heaters.
• Thermal Design:
  • Integrated heat sink or thermal interface for efficient heat dissipation, ensuring stable operation under continuous load conditions.
  • Optional forced-air cooling for high-power variants to enhance thermal management.
• Protection Features:
  • Overcurrent protection with automatic shutdown to prevent damage from excessive current draw.
  • Overtemperature protection with thermal sensors to monitor internal temperature and trigger safety mechanisms if thresholds are exceeded.
  • Short-circuit protection to isolate faults and protect connected equipment.
• Electrical Isolation:
  • Galvanic isolation between input and output circuits to prevent electrical interference and ensure operator safety.
• Operating Environment:
  • Temperature range: -20°C to 60°C (or extended range with derating for specialized applications).
  • Humidity tolerance: Up to 95% non-condensing for reliable operation in humid industrial environments.
  • Protection rating: IP20 or higher (depending on enclosure configuration) to resist dust and accidental contact.

Key Features:

• Long Lifespan:
  • Solid-state design eliminates mechanical wear and tear, resulting in millions of switching cycles without degradation in performance.
• Fast Response Time:
  • Microsecond-level switching speeds enable precise control of dynamic processes and reduce system latency.
• Low Electrical Noise:
  • Semiconductor switching generates minimal arcing and electromagnetic interference (EMI), improving signal integrity in sensitive applications.
• Compact and Modular Design:
  • Space-saving form factor allows for easy integration into control panels, enclosures, or DIN rail mounting systems.
• High Reliability:
  • Robust construction and comprehensive protection features ensure continuous operation in harsh industrial conditions.
• Easy Installation and Maintenance:
  • Plug-and-play connectivity with standard industrial interfaces simplifies setup and reduces downtime during maintenance.

Application Scenarios:

• Industrial Automation:
  • Used in PLC-based control systems for switching motors, valves, pumps, and actuators in manufacturing, automotive, and food processing industries.
• Power Electronics:
  • Integrates into power supplies, inverters, and converters for precise control of electrical energy flow in renewable energy systems, battery storage, and uninterruptible power supplies (UPS).
• Heating and Cooling Systems:
  • Controls resistive heating elements or compressor motors in HVAC systems, industrial ovens, and refrigeration units for efficient temperature regulation.
• Lighting Control:
  • Manages high-intensity lighting systems, such as LED drivers or fluorescent ballasts, in commercial buildings, stadiums, and street lighting applications.
• Transportation Systems:
  • Powers auxiliary systems in trains, buses, and electric vehicles, including door controls, air conditioning, and battery management systems.
• Test and Measurement Equipment:
  • Provides reliable switching for automated test systems, data acquisition units, and laboratory instruments requiring high precision and repeatability.
