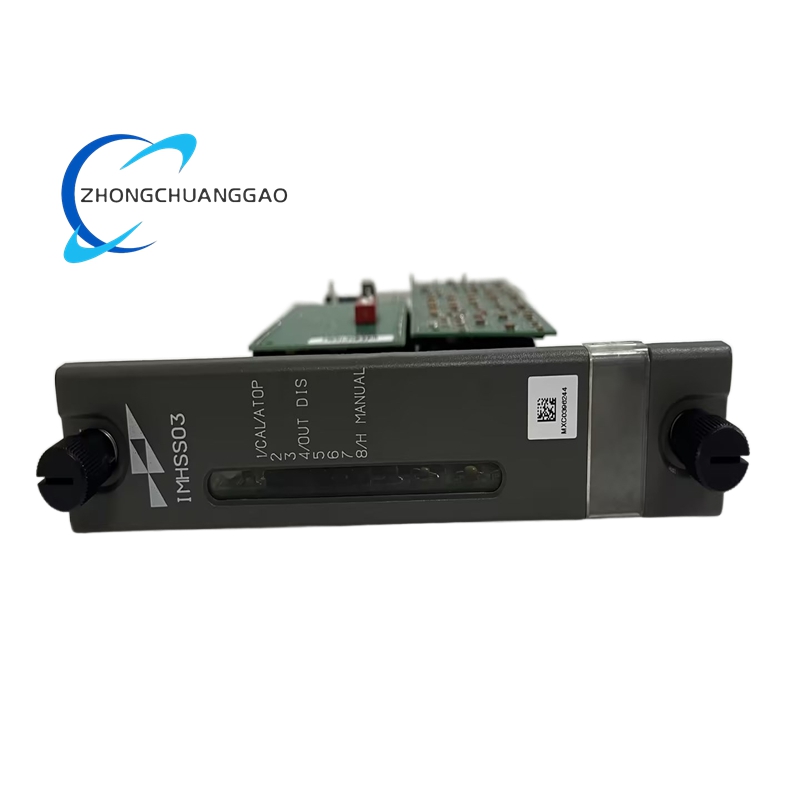

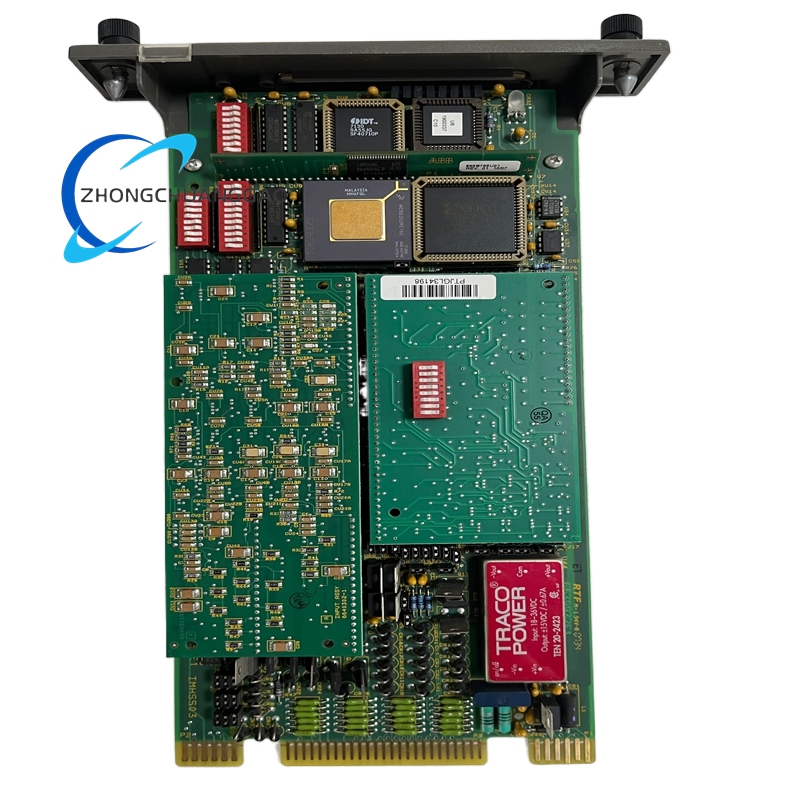

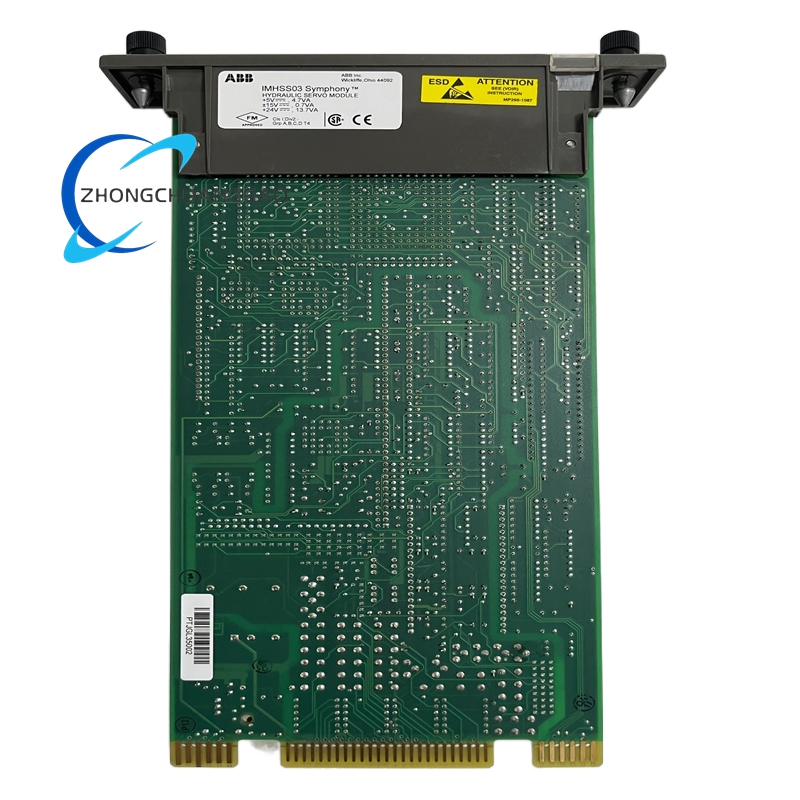

ABB IMHSS03 Hydraulic Servo Module

• Memory: 64MB SDRAM and 32MB NorFlash
• Operating Systems: Supports LINUX 2.6.17 and WINCE 4.2/5.0/6.0
• Analog-to-Digital Converter (ADC): 16-bit resolution for precise measurements
• Digital-to-Analog Converter (DAC): 16-bit resolution for accurate control signals
• Communication Interfaces:
  • Standard: RS-232, CAN bus
  • Optional: Ethernet, Modbus
  • Dual RJ-45 ports for redundant networking
• Power Supply:
  • Supports 5V/12V DC供电 (DC power supply)
  • Features a real-time clock with a backup battery
• Operating Temperature: -20°C to 70°C (expandable)
• Protection Rating: IP56 (with protective casing)
• Safety Standards: Complies with IEC/EN 61800-5-2

Functional Characteristics

• High Precision Control:
  • Enables closed-loop control of position, speed, and torque with high accuracy.
  • Supports millimeter-level positioning and microsecond-level response times, suitable for applications like precision machining and semiconductor manufacturing.
• Multi-axis Synchronization:
  • Facilitates synchronous control of multiple axes, coordinating the movement trajectories of various actuators.
  • Commonly used in robot joint control and CNC machine tool multi-axis联动 (multi-axis linkage).
• Rapid Response:
  • Optimized dynamic performance through advanced algorithms, reducing command execution delays.
  • Ideal for high-frequency action scenarios such as high-speed sorting and packaging lines.
• Reliable Protection Mechanisms:
  • Integrated protection against overload, overvoltage, overcurrent, and overheating, minimizing the risk of equipment damage due to sudden failures.
• Redundant Design:
  • Dual LVDT interfaces and servo valve outputs provide operational redundancy.
  • Supports hot-swapping and automatic fault switching with a switching time of ≤10ms, enhancing system reliability.
• Programmable Functionality:
  • Users can develop and debug customized control programs using programming software, allowing for flexible adaptation to specific application requirements.
• Easy Monitoring and Integration:
  • Capable of signal monitoring, particularly in complex control systems.
  • Can be connected to personal computers for communication, facilitating PLC programming and management.

Application Scenarios

• Power Generation:
  • Used in steam turbine throttle valve control to achieve precise speed regulation and stable operation.
  • Applied in wind turbine pitch control systems to enable millisecond-level adjustment of blade angles, ensuring efficient power generation.
• Chemical Processing:
  • Regulates reactor pressure to ensure the safety and stability of chemical production processes.
• Metallurgical Industry:
  • Controls blast furnace blowers to optimize airflow management in metallurgical processes.
• Manufacturing:
  • Enhances manufacturing precision and efficiency in CNC machine tools and robot joint drives.
  • In collaborative robots, it enables low-impact force operations during assembly tasks through multi-axis force control.
• Material Handling:
  • Synchronizes conveyor belt speeds to achieve automated coordination in logistics systems.
• Energy Sector:
  • Utilized in hydroelectric power stations for valve regulation, ensuring stable and efficient power generation.
