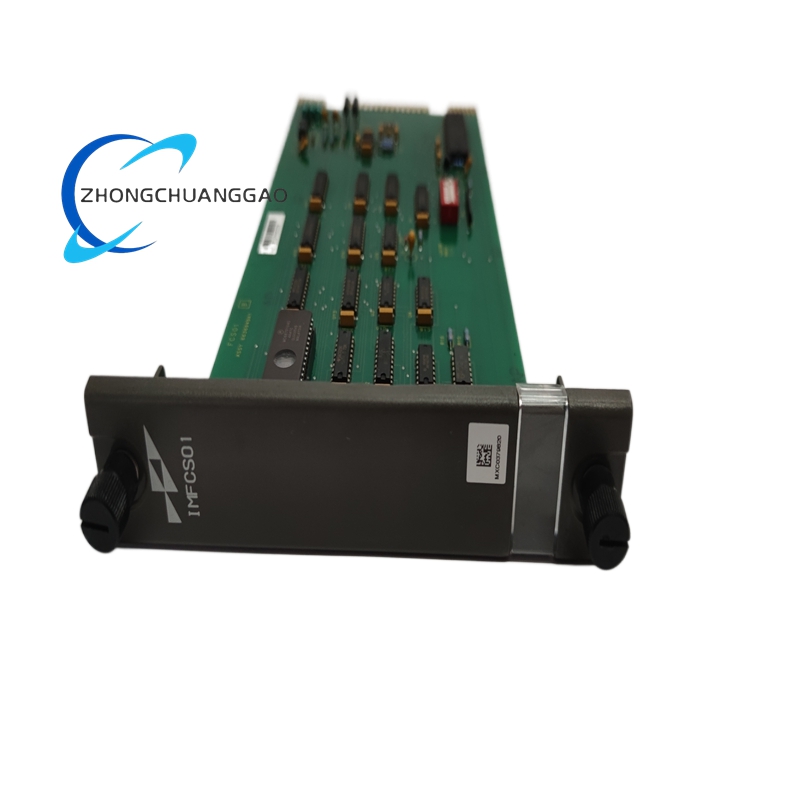

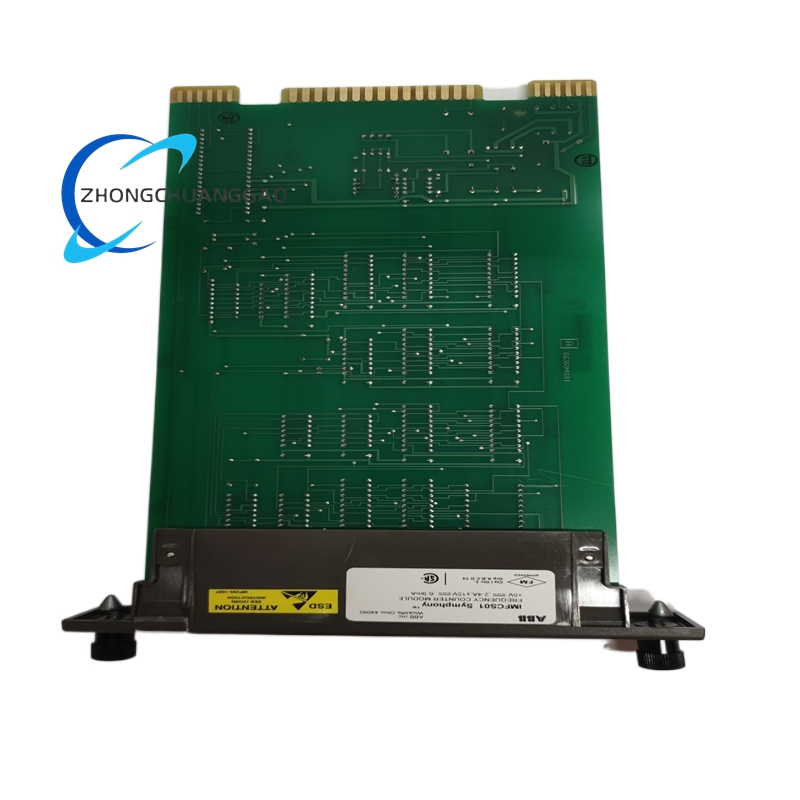

ABB IMFCS01 Frequency Counter Submodule

• Measurement Range: 1 Hz to 12.5 kHz
• Accuracy:
  • ±0.25 Hz (1 Hz to 5 kHz)
  • ±0.50 Hz (5 kHz to 10 kHz)
  • ±0.63 Hz (10 kHz to 12.5 kHz)
• Resolution: 0.1 Hz
• A/D Conversion Resolution: 24-bit
• Power Supply Voltage: +5 V DC, ±15 V DC, +24 V DC
• Power Consumption: 1.2 W (5 V DC), 0.185 W (±15 V DC)
• Operating Temperature Range: -20°C to +70°C
• Dimensions (Width × Height × Depth): 150 mm × 80 mm × 40 mm
• Weight: Approximately 0.5 kg
• Installation: Standard module installation unit (Harmony Rack)

Functional Characteristics

• High-Precision Frequency Counting: The IMFCS01 module offers exceptional accuracy in measuring input signal frequencies, making it suitable for applications requiring precise frequency data.
• Multiple Counting Modes: Supports various counting modes, including pulse counting, cycle measurement, and frequency measurement, to cater to diverse frequency counting needs.
• Flexible Input Interface: Equipped with an appropriate input interface that can receive a wide range of pulse signals, adapting to different input signal types and level requirements.
• Advanced Counting Algorithms: Utilizes sophisticated counting algorithms and technologies to ensure accurate and stable measurement results under varying working conditions.
• Standard Communication Interfaces: Connects to control systems via Ethernet, serial interfaces, or other standard communication protocols, facilitating seamless data exchange and integration with other devices and systems.
• Customizable Configuration: Offers flexible configuration options that can be tailored to specific application requirements, enabling adaptation to different frequency counting and measurement scenarios.

Application Scenarios

• Industrial Automation: Used in automation lines for frequency measurement and control, such as monitoring motor speeds, conveyor belt rates, and production line cycles.
• Power System Monitoring: Essential for frequency monitoring in power generation and distribution systems, ensuring stable and efficient power supply.
• Mechanical Equipment Maintenance: Monitors the operating frequencies of mechanical equipment, such as turbines, compressors, and pumps, to detect abnormalities and prevent failures.
• Process Control: Integral to process control systems in industries like chemical, petrochemical, and water treatment, where precise frequency measurement is crucial for maintaining optimal process conditions.
• Research and Development: Supports frequency measurement tasks in laboratory settings and R&D projects, providing accurate data for analysis and experimentation.
