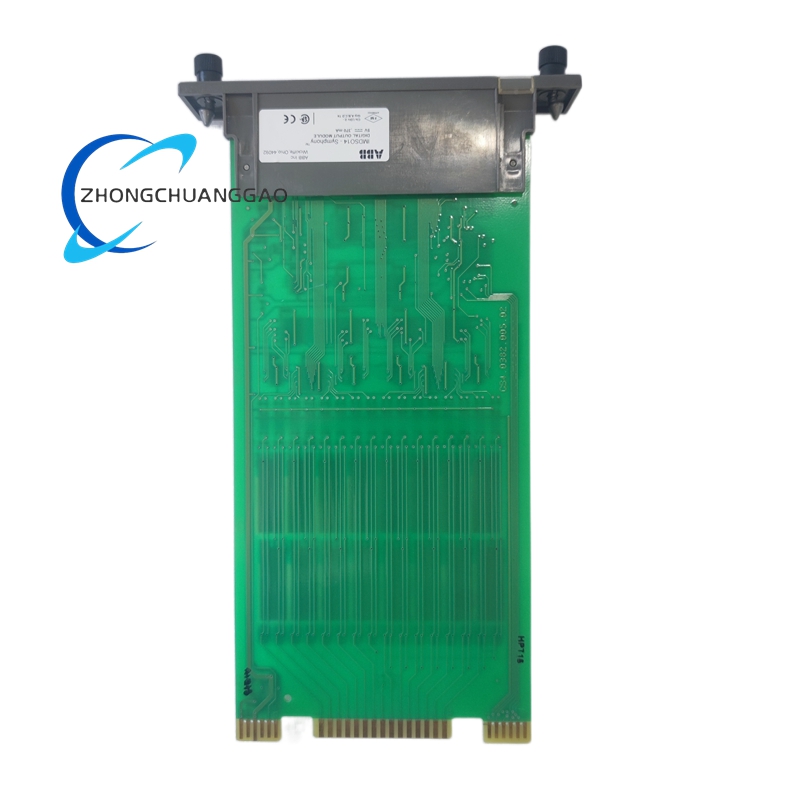

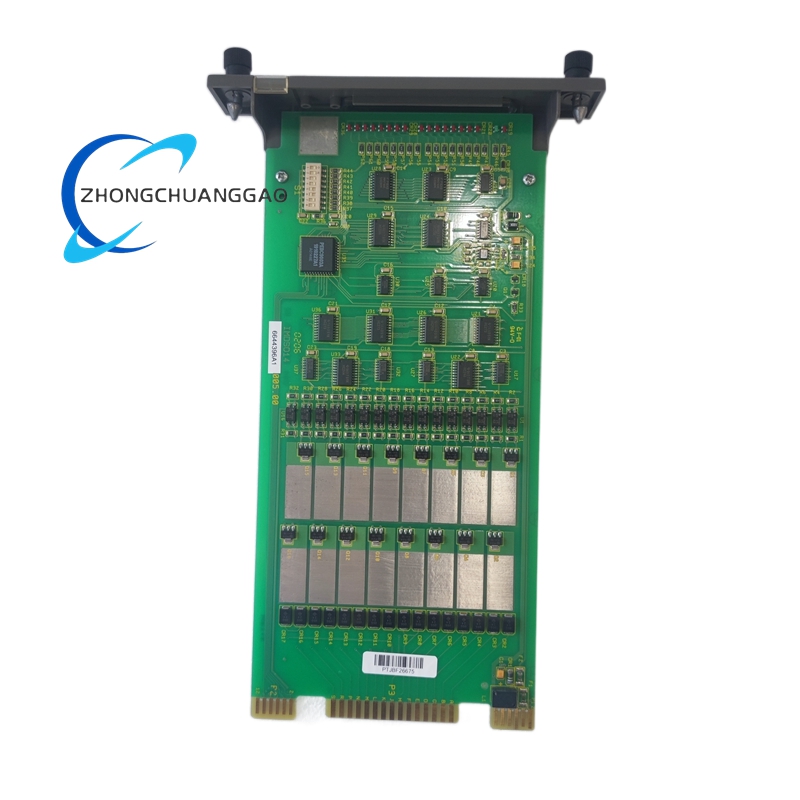

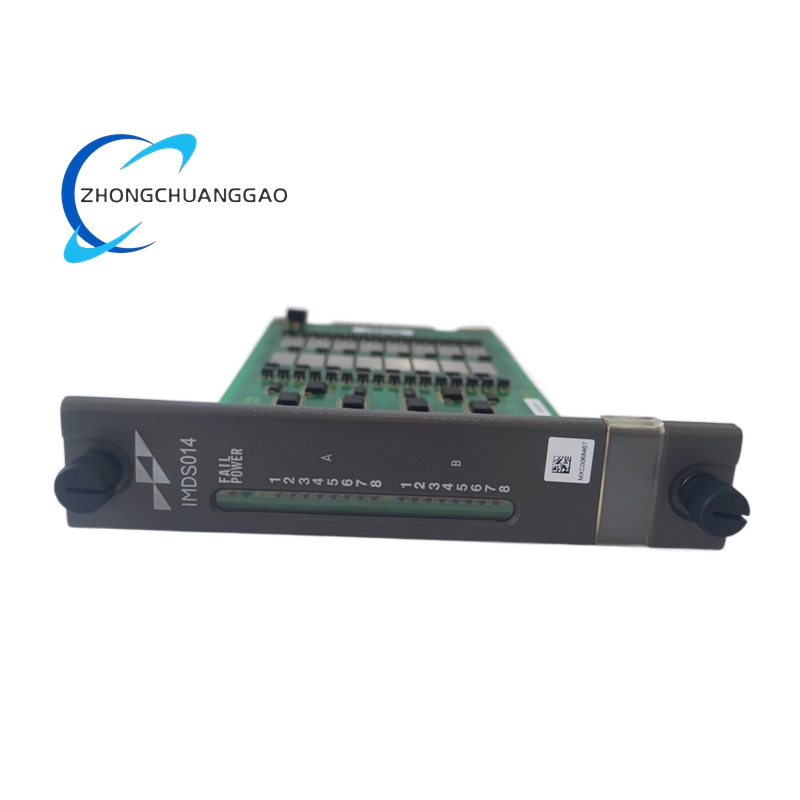

ABB IMDSO14 Digital Output Module

• Output Types: Supports relay contact outputs (dry contacts) or solid-state electronic outputs (transistors/thyristors)
• Load Capability:
  • Maximum load current per channel: 2A
  • Isolation voltage: 2500V AC
• Response Time: Less than 1μs, ensuring high-speed control capabilities
• Physical Dimensions: Approximately 115mm × 80mm × 25mm
• Mounting: DIN rail installation, supporting hot-swapping for easy maintenance
• Operating Temperature: -25°C to +55°C (with extended range up to -20°C to +70°C in some configurations)
• Protection Class: IP54/IP56, providing dust and water resistance
• Communication: Integrated sub-module bus (SMB) interface, compatible with Modbus, PROFINET, DeviceNet, and other protocols
• Redundancy: Supports redundant dual-network architecture with a fault switching time of ≤10ms

Functional Characteristics

• High Reliability: Designed for long-term stable operation in demanding industrial conditions, with a low failure rate and minimal maintenance requirements.
• Strong Anti-Interference Capability: Electrical isolation between channels and the system bus effectively blocks common-mode interference and ground loop noise.
• Flexible Configuration: Supports multiple output types and voltage levels, making it adaptable to various load requirements.
• High-Speed Response: The sub-microsecond response time ensures rapid control of field devices, enhancing system efficiency.
• Easy Integration: Compatible with ABB PLCs (such as the AC500 series), DCS (such as Advant OCS), and touchscreens, enabling seamless system integration.
• Expandability: Optional expansion I/O modules, EMC filters, and brake resistors can be added to enhance functionality and data transmission capabilities.

Application Scenarios

• Manufacturing Industry:
  • Automation control of production lines, packaging machinery, plastic machinery, and printing equipment.
  • Example: Controlling the start, stop, acceleration, and deceleration of motors in automotive assembly lines.
• Energy Sector:
  • Power system monitoring, oil and gas pipeline valve control, and boiler soot blower/damper drive applications.
  • Example: Regulating the operational status of power equipment based on sensor data in power plants.
• Infrastructure:
  • Traffic signal control, water system pump/valve regulation, intelligent building air conditioning/lighting centralized control, and municipal pump stations.
  • Example: Adjusting traffic flow by receiving signals from traffic lights and cameras.
• Special Environments:
  • Mine explosion-proof equipment (ExibI certification), rail transit ring network cabinets, photovoltaic inverters, wind turbine converters, and AGV vehicle collaborative control.

Key Advantages

• Precision: High-resolution output and accurate control capabilities ensure reliable operation of industrial processes.
• Versatility: Supports multiple output types and communication protocols, making it suitable for diverse applications.
• Stability: Robust design and isolation technology guarantee stable performance in electromagnetic-rich environments.
• Scalability: Modular architecture allows for easy expansion to meet growing system demands.
• Interoperability: Seamlessly integrates with a wide range of industrial equipment and control systems, enhancing overall system efficiency.
