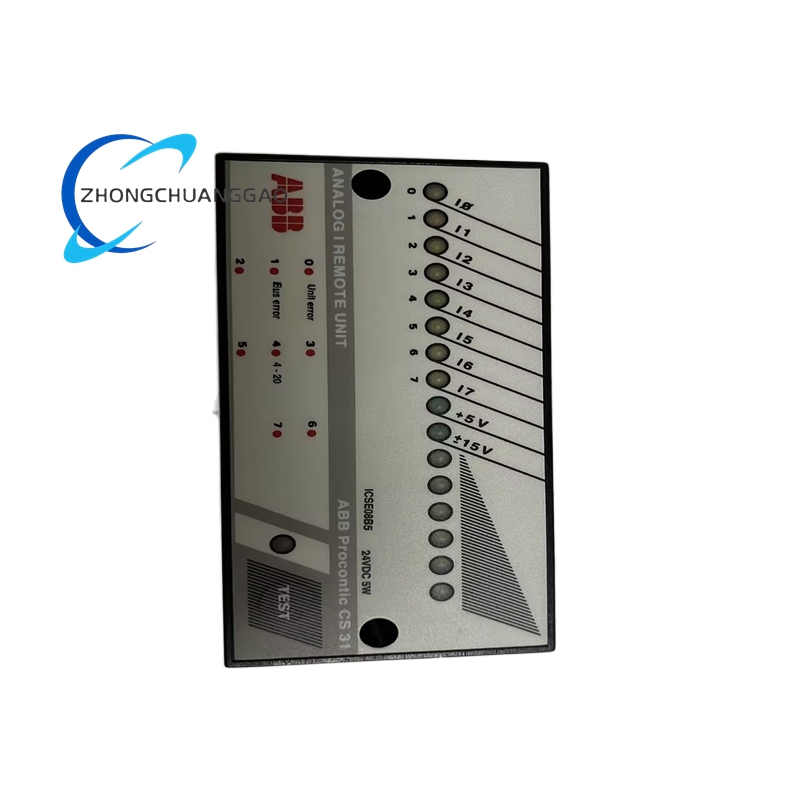

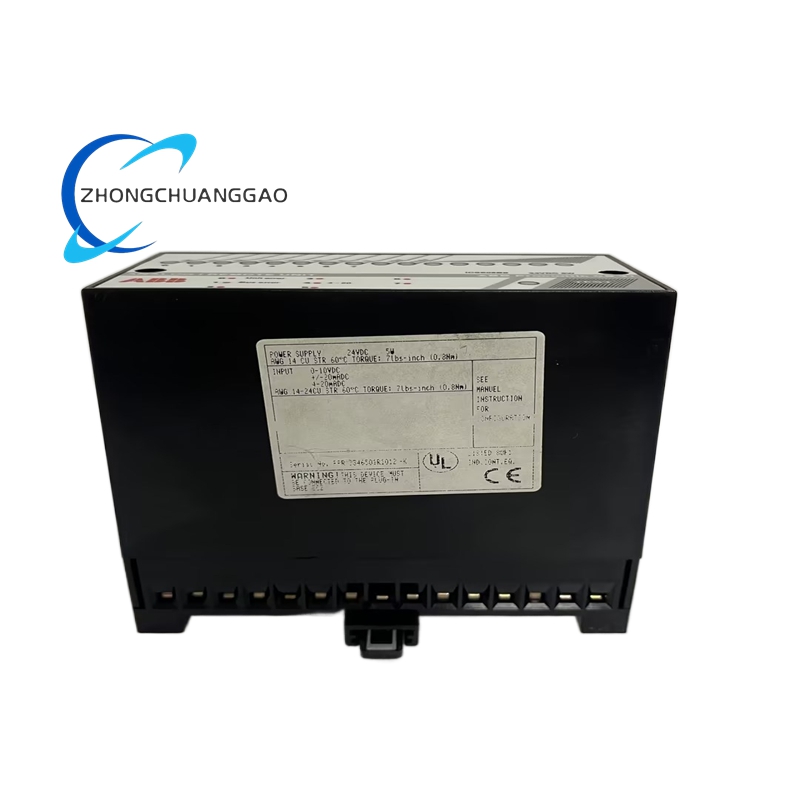

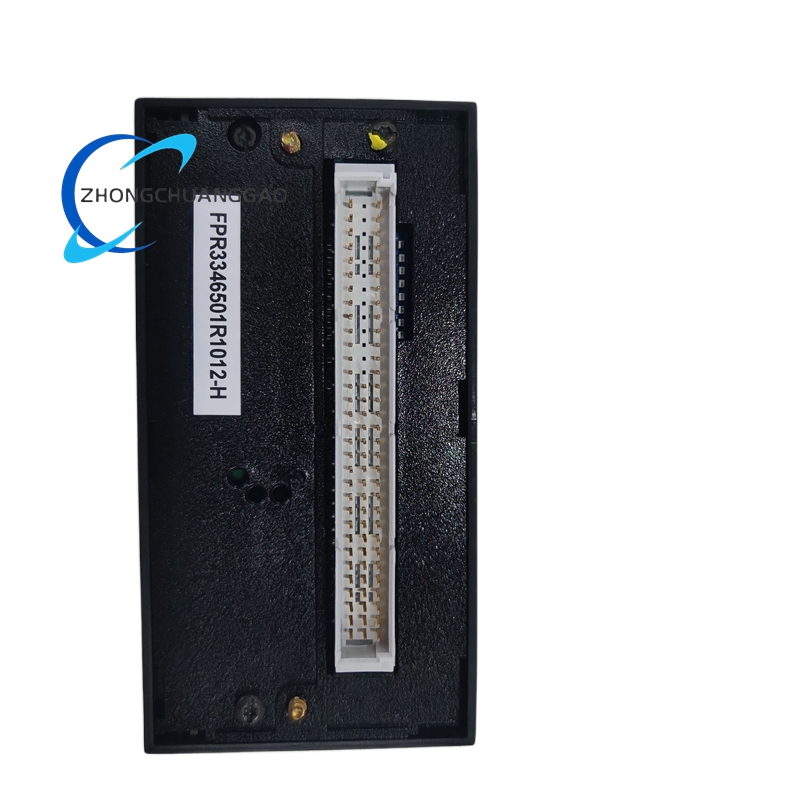

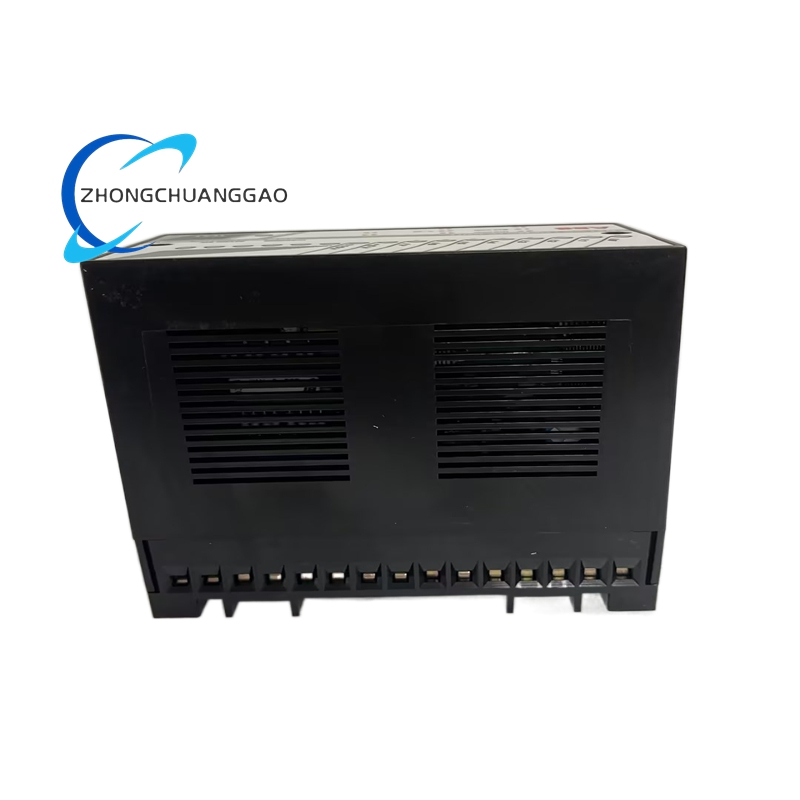

ABB ICSE08B5 FPR3346501R1012 Remote Analog Input Module

• Input Types: Accepts analog voltage (0–10 V) or current (4–20 mA) signals.
• Resolution: 12-bit or higher for precise measurement accuracy.
• Power Supply: 24 V DC.
• Input Signal Range: -10 V to +10 V.
• Accuracy: ±0.1% of full scale.
• Sampling Rate: 250 Hz.
• Communication Speed: Supports 960 kbps, 1.5 Mbps, 3 Mbps, and 6 Mbps.
• Dimensions: 125 mm (length) × 104 mm (width) × 80 mm (height).
• Weight: 0.28 kg.
• Operating Temperature: -20°C to +60°C.
• Protection Class: IP67 (dust-tight and water-resistant).

Functional Characteristics

• High Precision: 12-bit resolution ensures accurate measurement and system control.
• Multi-Channel Design: Supports up to 8 independent input channels for flexible configuration.
• Reliability: Built with industrial-grade components to withstand harsh environments.
• Configurable Parameters: Software-based setup allows customization for diverse applications.
• Fault Diagnosis: Monitors process variables to detect and alert anomalies promptly.

Application Scenarios

• Process Control: Used in chemical, petrochemical, and power generation plants to monitor and regulate variables like temperature, pressure, and flow.
• Manufacturing Automation: Enables precise control of machinery in automotive, electronics, and textile production lines.
• Energy Management: Supports grid stability and load balancing in renewable energy systems (e.g., solar farms, wind turbines).
• Building Automation: Integrates with HVAC, lighting, and security systems for smart infrastructure management.

Key Advantages

• High Accuracy: Ensures reliable data acquisition for critical industrial processes.
• Robust Design: Withstands extreme temperatures, dust, and moisture (IP67 rating).
• Flexible Configuration: Adaptable to various industrial requirements via software settings.
• Seamless Integration: Compatible with ABB’s AC31 I/O series and other industrial control systems.
• Scalability: Modular design supports easy expansion as system demands grow.
