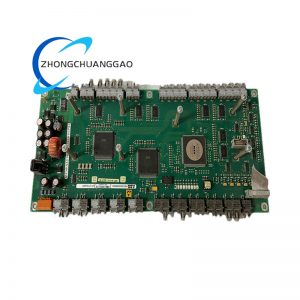

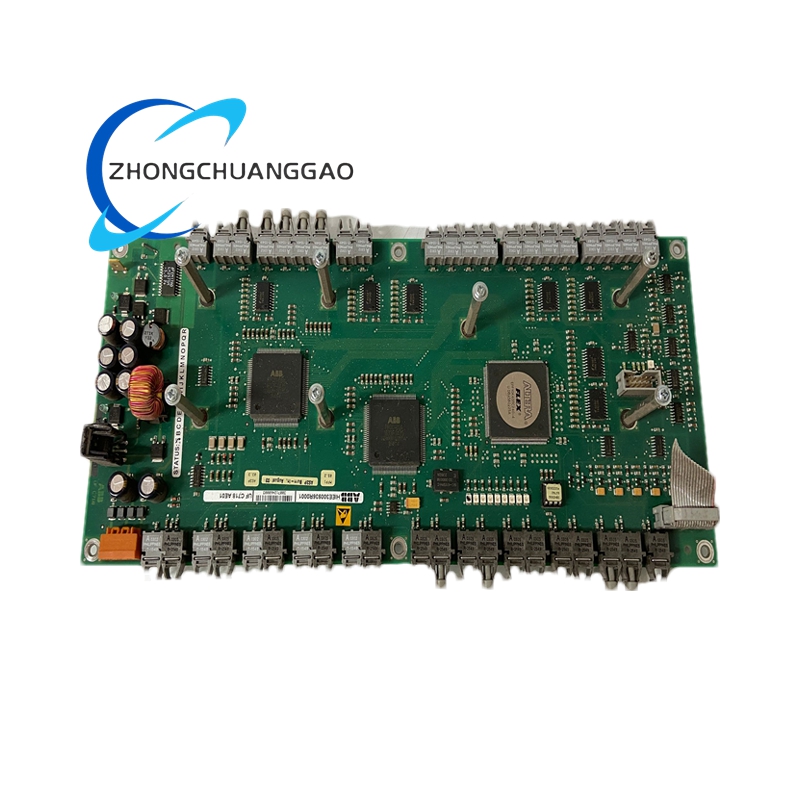

ABB HIEE300936R0001 UFC718AE01 HIEE300885R0001 PPC380AE01

• Response Time: ≤10 ms (step response: 90% of final output from digital command input)
• Isolation:
  • Channel-to-channel isolation: 500 V AC (rms) for 1 minute
  • Module-to-backplane isolation: 1500 V AC (rms) for 1 minute
• Operating Temperature Range: -25°C to +60°C (storage: -40°C to +85°C)
• Power Supply:
  • Backplane power: 5 V DC (compliant with AC 800M specifications)
  • Field power: 24 V DC (separate from backplane; for output circuit power)
  • Maximum power consumption: 4.0 W (backplane) + load-dependent power (field)
• Communication Interface: ABB proprietary backplane bus (compatible with AC 800M/AC 800xA; 100 Mbps data rate)
• Mechanical Dimensions:
  • Width: ~32 mm (single-width DIN rail-mount)
  • Height: ~120 mm
  • Depth: ~180 mm
• Certifications: IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4, UL 508, CE

1.4 Function Features

• Multi-Signal Flexibility: Supports 4-20 mA current and 0-10 V/±10 V voltage outputs, with configurable sinking/sourcing—compatible with diverse field actuators.
• High-Precision Signal Generation: 16-bit DAC and ±0.1% FS accuracy ensure minimal error, critical for tight closed-loop control (e.g., reactor temperature regulation).
• Robust Output Protection: Short-circuit, reverse polarity, and overvoltage safeguards prevent module/actuator damage from wiring errors or power surges.
• Channel-Level Isolation: Eliminates ground loops and cross-channel interference, maintaining signal integrity in multi-device setups.
• Fast Response: ≤10 ms step response meets real-time demands of dynamic processes (e.g., emergency valve actuation).
• Real-Time Diagnostics: Transmits output status (active/fault) and load impedance data to the CPU; local LEDs (power/active/fault) enable visual verification.
• Easy Configuration: Configurable via ABB Control Builder M (signal type, output range, fault recovery); DIN rail-mount design for quick installation.
• Rugged Design: Withstands -25°C to +60°C temperatures, 5 g peak vibration, and 20 g peak shock—suitable for harsh industrial settings.

1.5 Application Scenarios

• Process Industry:
  • Chemical plants: Regulates control valves (chemical flow) and temperature controllers (heater output).
  • Oil refineries: Adjusts VFDs (pipeline pump speed) and pressure control valves (distillation columns).
  • Power plants: Controls turbine governor actuators (steam flow) and boiler feedwater valves.
• Manufacturing Industry:
  • Automotive: Adjusts robotic arm position controllers and conveyor VFDs.
  • Electronics: Regulates reflow oven temperature and SMT component placement actuators.
• Utilities:
  • Water treatment: Controls pump VFDs (water transfer) and sludge dewatering actuators.
  • HVAC (data centers): Adjusts AHU damper actuators and chiller temperature controllers.
