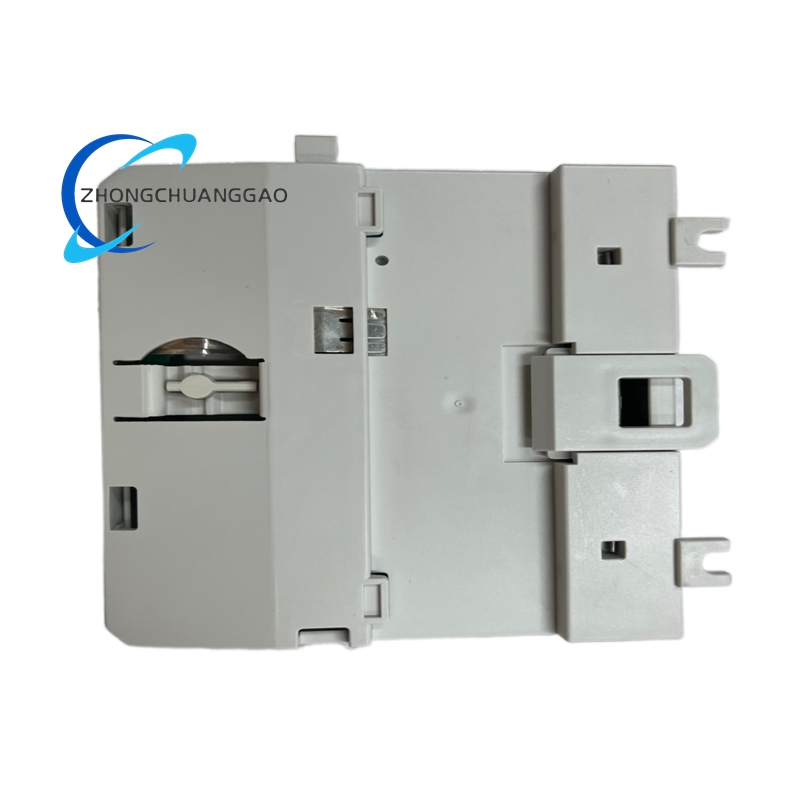

ABB GRBTU 3BSE013175R1 Universal Data Transmission Unit

Technical Specifications

• Operating Voltage: 24 V DC
• Operating Temperature Range: -40°C to +85°C
• Communication Protocols: Modbus TCP/IP, Ethernet/IP, Profibus DP
• Communication Speed: 10/100 Mbps
• Supported Data Formats: ASCII, RTU, TCP
• Dimensions: 125 mm x 110 mm x 40 mm
• Weight: Approximately 0.5 kg
• Material: Aluminum alloy housing with IP20 protection rating

Functional Features

• High Reliability: Designed for long-term stable operation in harsh industrial environments.
• Multi-Protocol Support: Enables seamless integration with various devices and systems, eliminating the need for protocol converters.
• High-Speed Data Transmission: Supports fast and efficient data transfer, ensuring real-time control and monitoring.
• Flexible Configuration: Offers a wide range of configuration options to meet diverse application requirements.
• Comprehensive Diagnostics: Monitors module health and provides alerts for potential issues, facilitating proactive maintenance.
• Compact Design: Space-saving design allows for easy installation in limited cabinet spaces.
• Robust Construction: High-strength materials ensure durability and resistance to vibration and shock.

Application Scenarios

• Industrial Automation: Used in production line control, process control, equipment monitoring, and regulation, enhancing production efficiency and process safety.
• Power Systems: Employed in power generation, distribution, and energy management for monitoring and controlling electrical parameters.
• Renewable Energy: Integral to wind turbine and solar inverter control systems, optimizing energy conversion and grid connection.
• Transportation: Utilized in electric vehicle charging infrastructure and rail vehicle traction systems for reliable power delivery and control.
• Process Monitoring and Optimization: Monitors various parameters in industrial processes and executes optimization algorithms to improve productivity and resource utilization.
• Device Scheduling and Coordination: Schedules and coordinates various devices and systems in industrial environments to ensure seamless production workflows.
• Data Acquisition and Processing: Collects and processes sensor data, converting it into useful information for control systems.
• Process Safety and Alarm Management: Implements process safety monitoring and alarm management, ensuring quick response in emergency situations.
