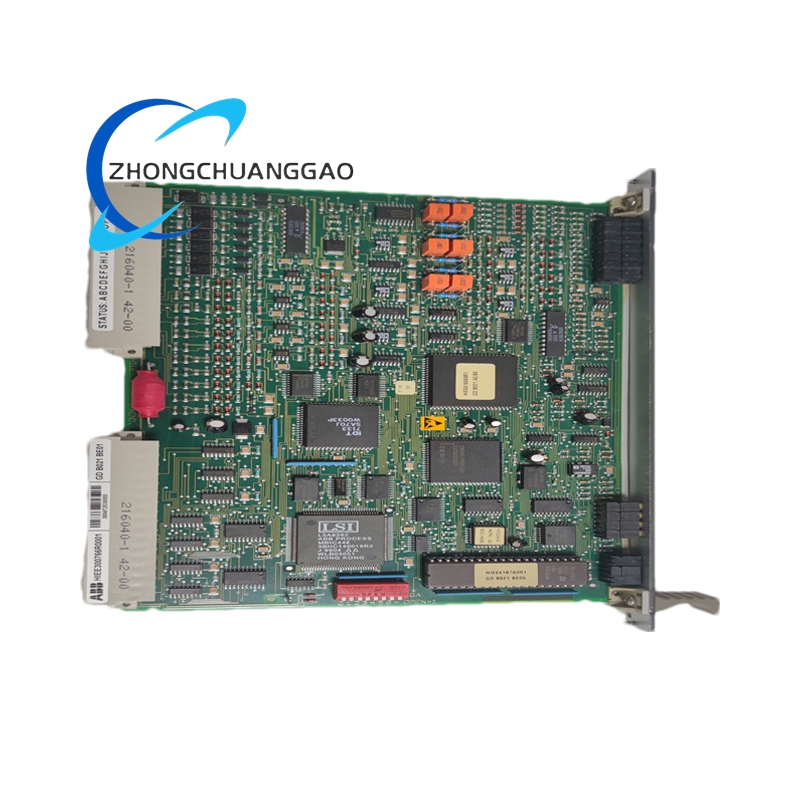

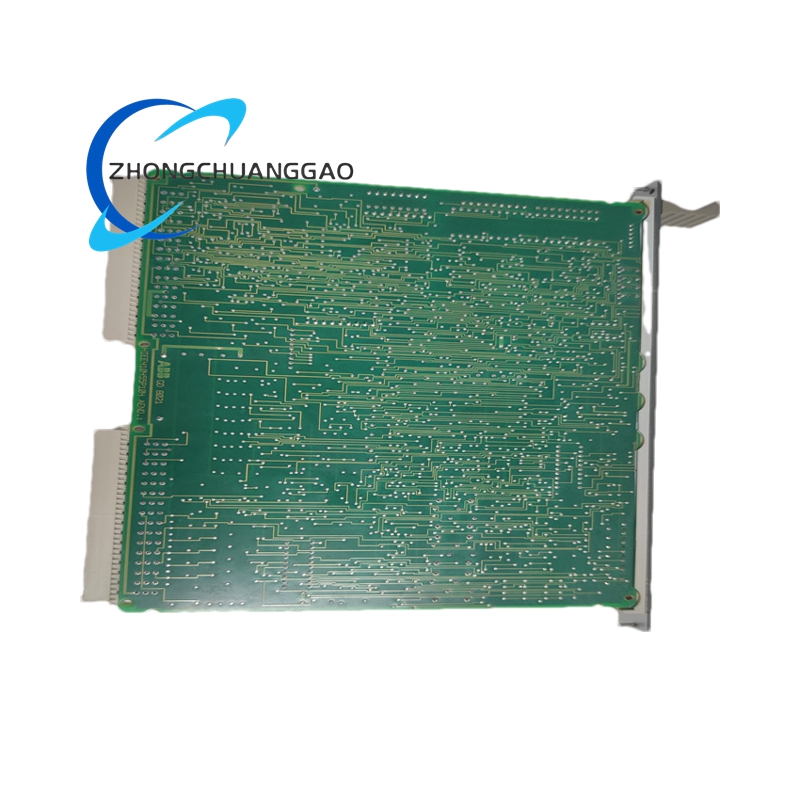

ABB GDB021BE01 HIEE300766R0001

• Response Time:
  • Maximum 1 ms per channel (captures fast state changes for time-sensitive control logic)
  • Software-configurable filter time: 0.1 ms to 100 ms (suppresses electrical noise from industrial environments)
• Isolation:
  • Group-to-group isolation: 500 V AC (rms) for 1 minute (prevents cross-group interference)
  • Module-to-backplane isolation: 1500 V AC (rms) for 1 minute (protects the control system backplane from field voltage spikes)
• Operating Temperature Range: -25°C to +60°C (suitable for harsh industrial environments)
  • Storage temperature range: -40°C to +85°C
• Power Supply Requirements:
  • Backplane power input: 5 V DC (compliant with ABB AC 800M system backplane specifications)
  • Maximum power consumption: 2.5 W (under full-load operation with all channels active)
• Communication Interface: ABB proprietary backplane bus (compatible with AC 800M/AC 800xA systems, data transfer rate up to 100 Mbps)
• Mechanical Dimensions:
  • Width: Approximately 32 mm (standard single-width DIN rail-mount size for ABB AC 800M modules)
  • Height: Approximately 120 mm
  • Depth: Approximately 180 mm
• Certifications:
  • IEC 61131-2 (industrial control equipment safety and performance standards)
  • IEC 61000-6-2 (electromagnetic compatibility (EMC) immunity for industrial environments)
  • IEC 61000-6-4 (EMC emissions to avoid interference with other equipment)
  • UL 508 (North American safety standard for industrial control equipment)
  • CE marking (compliance with European Union industrial directives)

Function Features

• High-Density Channel Design: 16 independent input channels in a compact 32 mm width, maximizing cabinet space utilization and reducing the number of modules required for large-scale I/O configurations.
• Rugged Isolation Protection: Group-level and module-level isolation prevents damage from voltage transients, ground loops, and electrical noise—ensuring signal integrity even in high-interference environments (e.g., near large motors or variable frequency drives).
• Fast Response & Configurable Filtering: 1 ms maximum response time captures rapid state changes (e.g., emergency stop triggers, limit switch activation), while adjustable filter time (0.1 ms–100 ms) optimizes signal stability: shorter filters for fast processes, longer filters for noisy settings.
• Comprehensive Diagnostics: Built-in self-diagnostic functions monitor:
  • Channel overloads (excessive input current)
  • Power supply abnormalities (under-voltage on backplane or field power)
  • Internal circuit faults (e.g., communication chip errors)

    Diagnostic data is transmitted to the central control system, enabling remote troubleshooting and minimizing downtime.

• Wide Voltage Tolerance: 19.2 V DC–30 V DC input voltage range accommodates fluctuations in field power supplies, ensuring consistent performance even in unstable electrical environments.
• Easy Installation & Configuration:
  • DIN rail-mountable design for quick integration into standard AC 800M racks.
  • Configurable via ABB Control Builder M software—users can set filter times, channel labels, and alarm conditions intuitively, with no physical hardware adjustments required.
• Seamless System Compatibility: Fully compatible with ABB AC 800M/AC 800xA control systems, including redundant CPU architectures. It synchronizes with the central controller to ensure consistent data transmission even during CPU failover.

 Application Scenarios

• Process Industry:
  • Chemical & Petrochemical Plants: Monitors status of valve position switches (open/closed), pump run/stop contacts, and pressure relief valve triggers—enabling the control system to track process flow and respond to upsets.
  • Oil & Gas Refineries: Integrates with pipeline block valve sensors, tank level limit switches, and emergency shutdown (ESD) triggers to ensure safe operation and prevent spills or overflows.
  • Power Generation (Thermal/Hydro): Tracks status of turbine auxiliary contacts, boiler feedwater pump switches, and generator circuit breaker positions—supporting grid stability and maintenance scheduling.
• Manufacturing Industry:
  • Automotive Assembly Lines: Detects presence of workpieces via photoeye switches, conveyor belt start/stop status, and robotic end effector clamp positions—ensuring synchronized operation of production stations.
  • Electronics Manufacturing: Monitors status of SMT (Surface Mount Technology) machine feeders (empty/full), conveyor lane gates, and ESD protection interlocks—maintaining product quality and operator safety.
  • Food & Beverage Processing: Tracks open/closed status of mixing tank lids, pasteurization unit door switches, and packaging line sensor triggers—ensuring compliance with hygiene standards and production schedules.
• Infrastructure & Utilities:
  • Water & Wastewater Treatment: Monitors pump run status, valve position switches (for inlet/outlet control), and overflow alarm sensors at treatment tanks—optimizing water flow and preventing environmental contamination.
  • Building Automation (Large Facilities): Integrates with HVAC system fan status switches, fire door position sensors, and elevator landing door contacts—enhancing energy efficiency and safety.
  • Mining Operations: Tracks status of conveyor belt emergency stop pulls, crusher feed gate switches, and ore silo level limit sensors—ensuring continuous material flow and worker safety….
