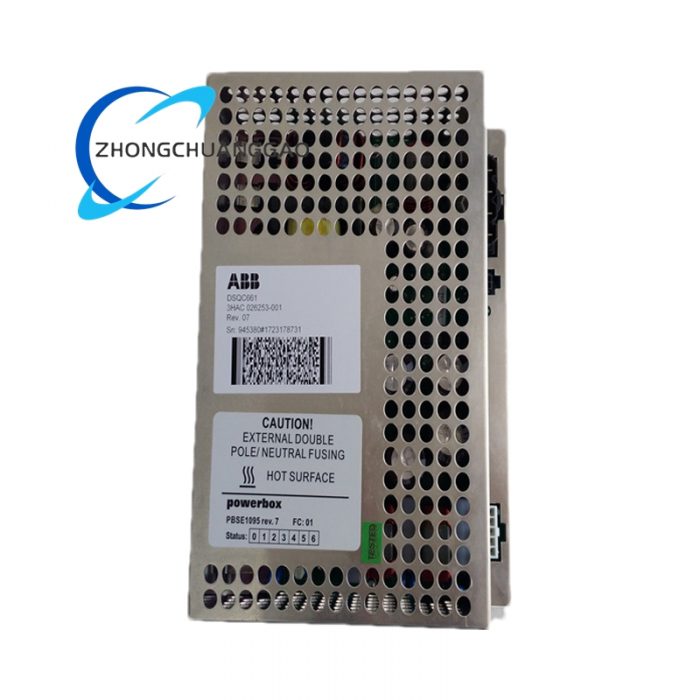

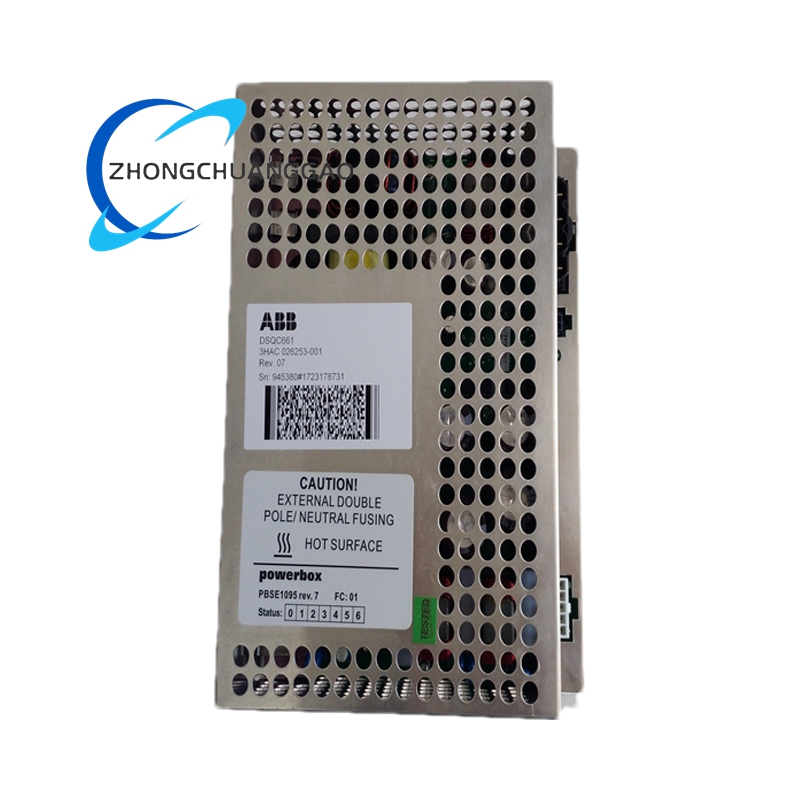

ABB DSQC661 3HAC026253-001 Communication and I/O Module - Image 1
ABB DSQC661 3HAC026253-001 Communication and I/O Module - Image 2
ABB DSQC661 3HAC026253-001 Communication and I/O Module - Image 3
Click to enlarge
ABB DSQC661 3HAC026253-001 Communication and I/O Module
ABB DSQC661 3HAC026253-001 Communication and I/O Module - Image 2
ABB DSQC661 3HAC026253-001 Communication and I/O Module - Image 3
ABB DSQC658 3HAC025779-001 Automation Controller Module
ABB DSQC658 3HAC025779-001 Automation Controller Module
Back to products
ABB DSQC679 3HAC028357-001
ABB DSQC679 3HAC028357-001

ABB DSQC661 3HAC026253-001 Communication and I/O Module

Technical Specifications

  • Brand: ABB
  • Model: DSQC661 3HAC026253-001
  • Communication Protocol: Supports DeviceNet, Profibus, or Ethernet/IP (depending on configuration)
  • I/O Capacity:
    • Digital Inputs: Up to 16 channels (24V DC)
    • Digital Outputs: Up to 16 channels (24V DC, 0.5A max)
    • Analog Inputs/Outputs: Optional expansion for 4-20mA or 0-10V signals
Category:
Description
  • Signal Processing: High-speed response time for real-time control applications
  • Power Supply: 24V DC nominal input with overvoltage protection
  • Environmental Rating: IP20 (standard); IP67 options available for harsh environments
  • Operating Temperature: -10°C to +55°C (non-condensing)

Functional Features

  • Multi-Protocol Support: Enables interoperability with diverse industrial networks and PLC systems.
  • Modular Design: Allows easy expansion of I/O channels to match specific application requirements.
  • Diagnostics and Monitoring: Built-in LED indicators for quick status checks and troubleshooting.
  • Hot Swapping: Supports module replacement without shutting down the robot controller.
  • Safety Compliance: Meets ISO 13849 and IEC 61508 standards for functional safety.

Application Scenarios

  • Automotive Industry: Used in robotic welding cells to monitor sensor data and control actuator outputs.
  • Material Handling: Manages conveyor systems, grippers, and vision systems in packaging and palletizing lines.
  • Electronics Assembly: Interfaces with precision tools for component placement and soldering automation.
  • Pharmaceutical Manufacturing: Ensures sterile process control in robotic filling and capping machines.
  • Metal Fabrication: Coordinates plasma cutters, press brakes, and other CNC equipment with robotic arms.
