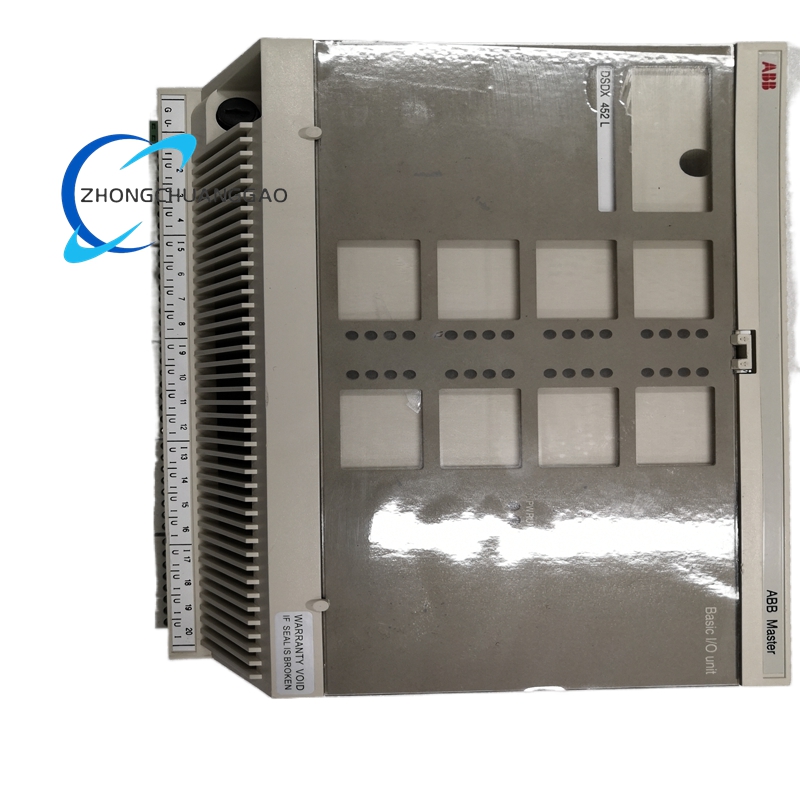

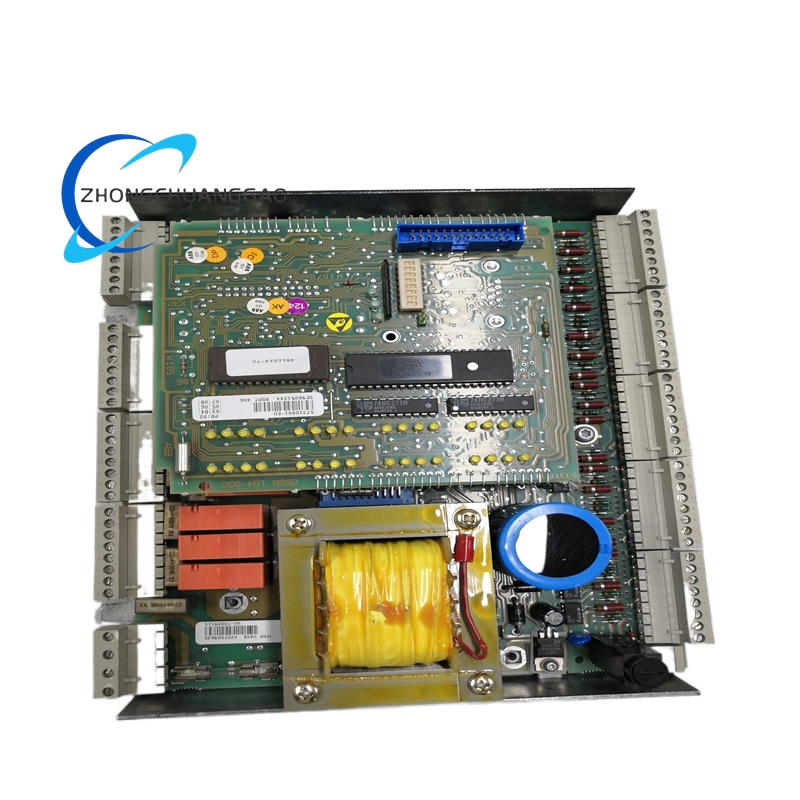

ABB DSDX452L Digital Input/Output Module

Technical Specifications

• Type: S800 Digital Mixed I/O Module, 32 DI/32 DO
• Input Voltage: 24 VDC (18-30 VDC range)
• Input Current: 2 mA per channel
• Output Voltage: 24 VDC, short-circuit protected
• Output Current: 0.5 A per channel, total 8 A
• Isolation: 500V logic ground isolation
• Response Time: 2 ms (0.2 ms optional with reduced filtering)
• Status Indicators: Each byte has a green/red LED for normal operation/fault indication
• Backplane: ModuleBus at 2 Mbit/s, refreshing CPU every 2 ms
• Operating Temperature: -25°C to +70°C
• Dimensions: 132 x 88 x 66 mm
• Weight: 0.28 kg
• Compliance: CE, UL 508, IEC 61131-2, RoHS, optional G3 coating

Functional Features

• High Density: The DSDX452L integrates 32 digital inputs and 32 digital outputs into a single module, optimizing space within control cabinets.
• Channel-Level Diagnostics: Each channel is equipped with diagnostic capabilities, allowing for quick identification and resolution of issues. LED indicators provide visual feedback on the status of each byte, facilitating rapid troubleshooting.
• Electrical Isolation: The module offers electrical isolation between channels and the logic ground, enhancing safety and reducing the risk of interference.
• Flexible Power Supply: All 64 lines reference the same floating logic power supply, enabling the mixing of source and sink loads without creating ground loops.
• Robust Design: Designed for harsh industrial environments, the DSDX452L operates reliably in temperatures ranging from -25°C to +70°C. It complies with IEC 61131-2 standards, ensuring consistent performance under demanding conditions.
• Low Power Consumption: The module consumes only 1.2 W of power, supporting energy-efficient operations and reducing overall system costs.
• High Mean Time Between Failures (MTBF): With an MTBF exceeding 300 years (based on Telcordia standards), the DSDX452L offers exceptional reliability, minimizing downtime and maintenance requirements.

Application Scenarios

• Packaging Lines: The DSDX452L is ideal for packaging applications where high-speed digital signal processing is required. It can read multiple sensors (e.g., photoeyes) and control actuators (e.g., air valves) with precision and speed.
• Automotive Manufacturing: In automotive plants, the module handles robotic feedback and valve control on the same card, streamlining operations and improving efficiency.
• Power Generation: The module monitors断路器 (circuit breaker) status and drives alarm relays in power plant auxiliary systems, ensuring safe and reliable operation.
• Process Industries: The DSDX452L is used in chemical, petrochemical, and other process industries to monitor and control various process parameters, contributing to operational stability and product quality.
• Building Automation: The module supports HVAC, lighting, and security systems in commercial and industrial buildings, enabling centralized monitoring and control for energy efficiency and comfort.
