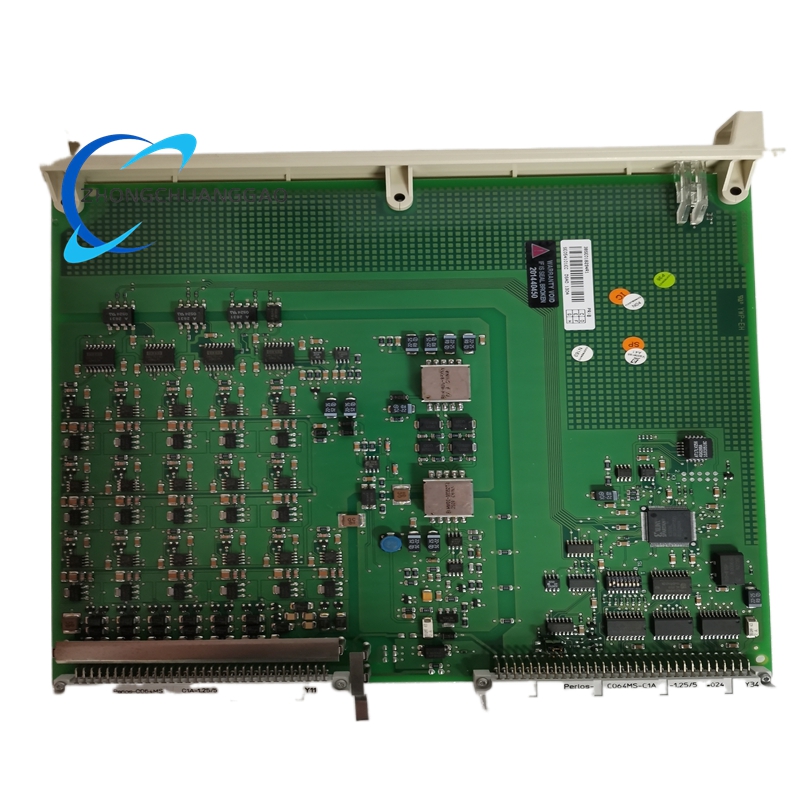

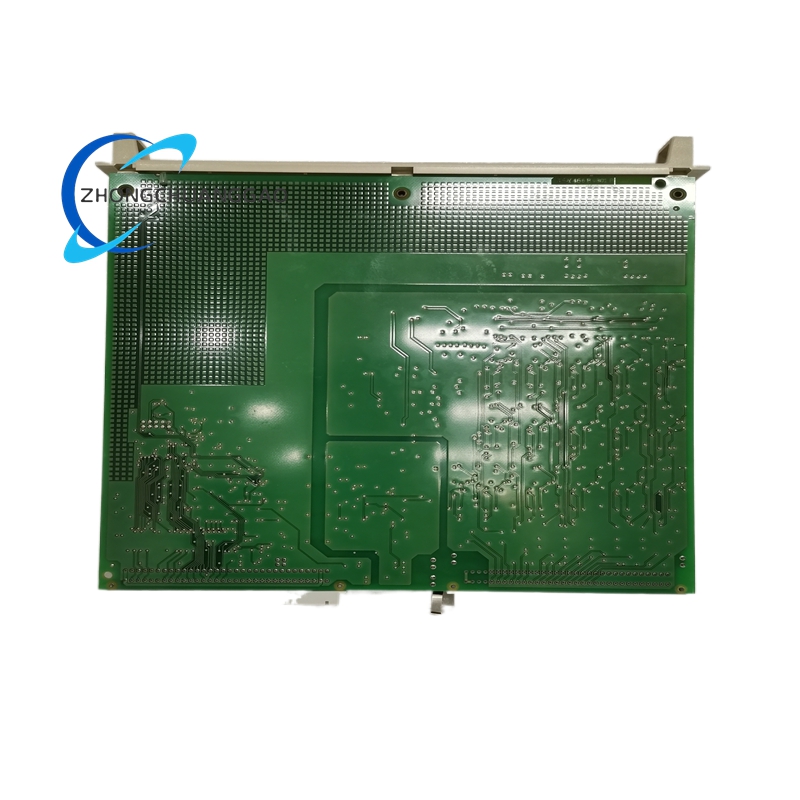

ABB DSAO130A Analog Output Module

Technical Specifications

• Model: DSAO130A
• Brand: ABB
• Input Voltage: DC 24V
• Output Voltage: DC 24V
• Maximum Output Current: 1.25A
• Number of Channels: 16
• Output Resolution: 12-bit (with sign)
• Output Signal Types: 0…20 mA
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP20
• Mounting: DIN rail mounting
• Dimensions: 110mm x 75mm x 30mm
• Weight: 0.2kg

Functional Features

• High Precision: Offers 12-bit resolution for accurate analog signal output.
• Multiple Channels: Supports up to 16 output channels, enabling control of multiple devices simultaneously.
• Wide Temperature Range: Operates reliably in extreme temperatures, making it suitable for various industrial environments.
• Electrical Isolation: Provides isolation between channels and between channels and the power supply, enhancing system safety and reducing interference.
• Easy Installation: Designed for DIN rail mounting, facilitating quick and easy installation in control cabinets.
• LED Indicators: Features LED indicators for monitoring the module’s operating status and diagnosing faults.

Application Scenarios

• Process Control: Used in chemical, petroleum, and gas industries for precise regulation of process parameters such as temperature, pressure, and flow rate.
• Power Generation: Applied in thermal power plants, hydroelectric power plants, and wind power plants for generator control and monitoring.
• Manufacturing Automation: Integrates with assembly lines, packaging machines, and material handling systems for accurate control of sequential operations.
• Building Automation: Manages HVAC, lighting, and security systems in commercial and industrial buildings for energy efficiency and comfort.
• Water Treatment: Monitors and controls water quality and flow in municipal and industrial water treatment facilities.
