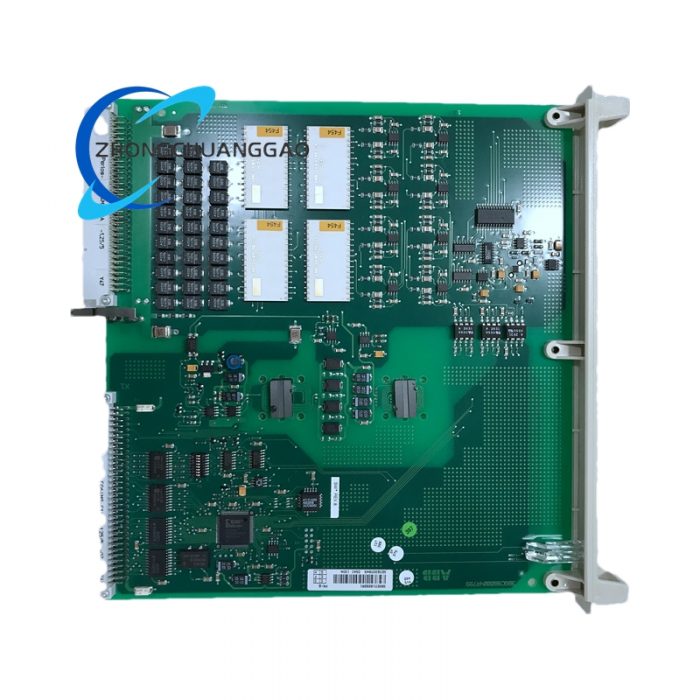

ABB DSAI130A 3BSE018292R1 Analog Input Module - Image 1

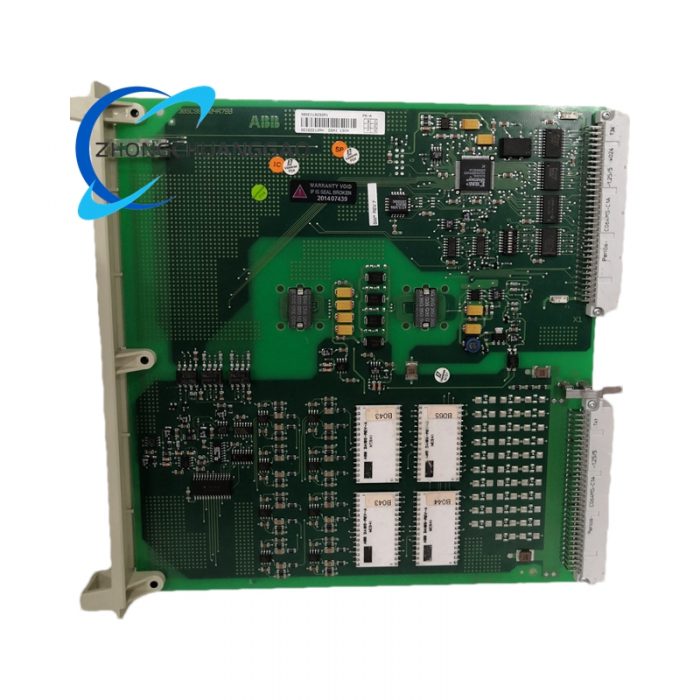

ABB DSAI130A 3BSE018292R1 Analog Input Module - Image 2

ABB DSAI130A 3BSE018292R1 Analog Input Module

Basic Parameters
- Module Type: Analog Input Module (AI)
- Platform: Symphony Plus / Harmony Rack
- Weight: Approximately 0.32kg
- Dimensions: 324mm (length) × 225mm (width) × 22.5mm (height)
Channel Performance
- Number of Channels: 16 analog input channels
- Input Signal Types: 0-10V, 1-5V, 4-20mA, etc.
- Input Impedance: High impedance (>1MΩ)
- Resolution: 12-bit / 16-bit (depending on system settings)
- Resolution Accuracy: 0.025%
- Electrical Isolation: Photoelectric isolation for each channel
- Response Time: 1ms
Power Supply and Communication
- Operating Voltage: 24V DC (powered by the system backplane)
- Communication Interface: Ethernet, Harmony Rack bus
- Supported Protocols: RS-232, RS-485, USB, Ethernet, Profibus, CAN bus, etc.

Category: ABB

Description

Installation and Indication
- Installation Method: Plug-in installation on Harmony rack, DIN rail installation optional
- Status Indicators: Channel status, fault, and communication indicators
- Redundancy Support: Supports system-level redundant architecture

Functional Features

High-Precision Sampling: Equipped with a high-precision ADC chip to ensure accurate signal restoration and reliable data acquisition.
Strong Anti-interference Ability: Complies with industrial-grade protection design standards, resistant to high temperatures and electromagnetic interference, and can adapt to various extreme environments.
Easy Installation and Maintenance: Adopts a modular slot design, supports hot-swapping, enabling simple and quick maintenance and replacement.
Wide Compatibility: Fully integrated with ABB Symphony Plus and INFI90 systems, supporting automatic identification and meeting diverse industrial communication requirements.
Signal Isolation Protection: Features strong electrical isolation to prevent signal crosstalk and ensure the safe and stable operation of the system.
Remote Monitoring and Diagnosis: Supports the system to monitor channel status and input abnormalities online, facilitating convenient fault diagnosis.

Application Scenarios

Power Industry: Used for process control in thermal power plants and hydropower plants, collecting analog signals such as current, voltage, and grid status.
Petrochemical Industry: Applied in the collection and feedback control of petrochemical processes, involving the acquisition of parameters like temperature, pressure, and flow in the production process.
Manufacturing Industry: Utilized in cement production lines and metallurgical industry automation systems to collect and control production process parameters.
Building Automation: Employed in the control of fans, valves, solenoid valves, etc., in HVAC systems, collecting signals such as temperature, pressure, and humidity.
Other Fields: Used in environmental monitoring and data recording systems, as well as pharmaceutical industry precision control systems, to achieve accurate collection and transmission of analog signals.
