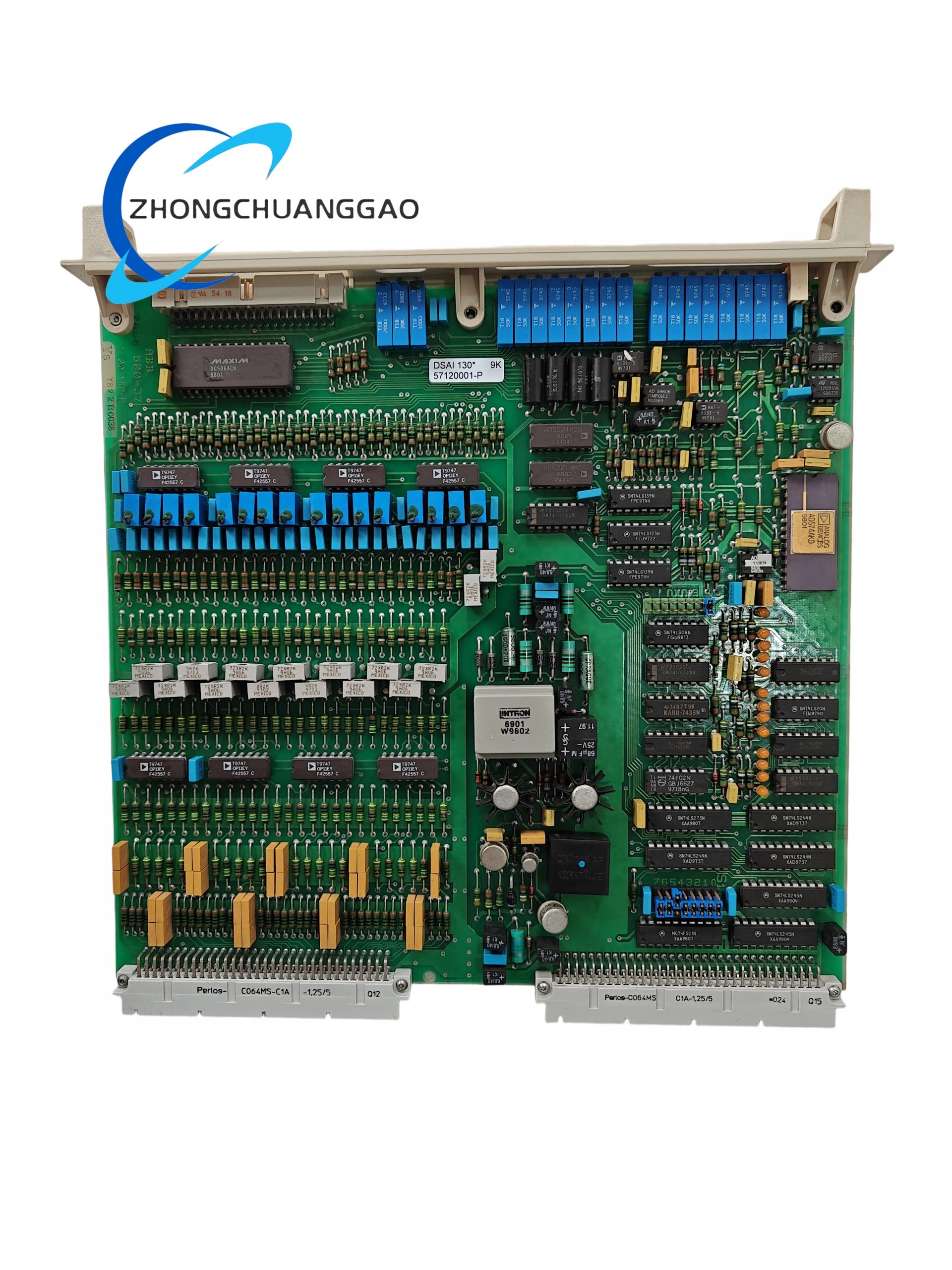

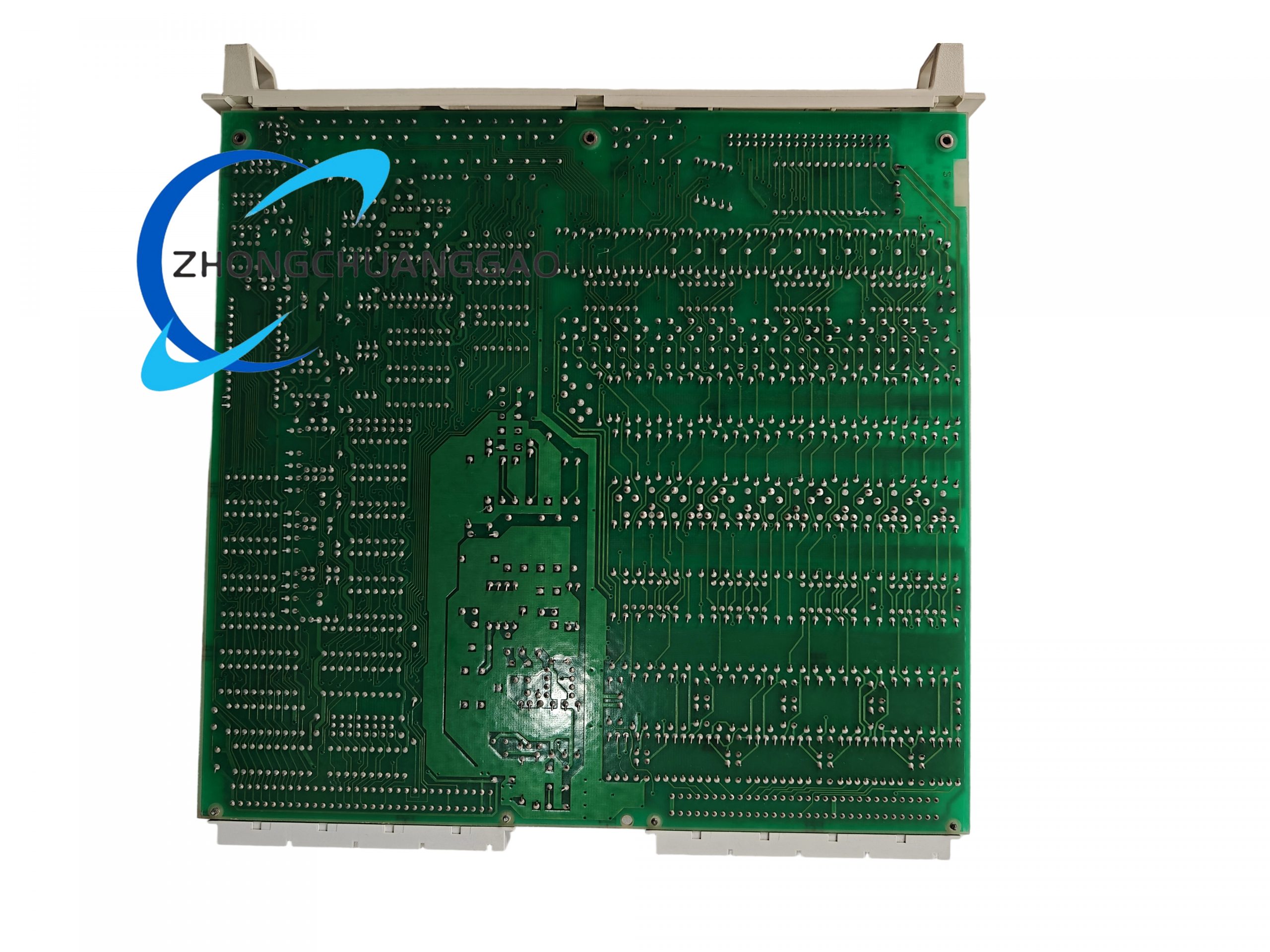

ABB DSAI130 Analog Input Module

• Power Supply: Compatible with standard industrial power supplies (specific voltage range not detailed in all sources but typically aligns with 24 V DC systems)
• Operating Temperature: Suitable for industrial environments (exact range not specified in all sources but implied to meet standard automation requirements)
• Isolation: Electrical isolation between channels and system for enhanced safety and reliability
• Dimensions:
  • Length: 324 mm
  • Height: 22.5 mm
  • Width: 225 mm
• Weight: Approximately 0.32 kg (varies slightly by configuration)
• Mounting: Rack-mountable design for easy integration into control systems
• Communication Interfaces: Supports standard industrial protocols for seamless data transmission to controllers (e.g., Ethernet, Profibus, Modbus, though specific protocols may depend on system configuration)

Functional Characteristics:

• High Precision: The 0.025% accuracy ensures reliable and consistent signal acquisition, critical for process control and safety applications.
• Multi-Signal Support: Compatible with both voltage and current inputs, providing flexibility for different sensor types and applications.
• Differential Input Design: Reduces noise and interference, improving signal quality in industrial environments.
• Robust Construction: Designed for durability and long-term operation in harsh conditions.
• Easy Integration: Rack-mountable design simplifies installation and space optimization in control cabinets.
• Fault Monitoring: Equipped with diagnostic capabilities to detect and report module or sensor issues, enhancing system reliability.

Application Scenarios:

• Industrial Process Control: Monitors and adjusts process parameters such as temperature, pressure, and flow rate in chemical, petrochemical, and pharmaceutical industries.
• Safety-Critical Systems: Used in high-risk industries like chemical and petroleum to ensure safe operation of safety controllers (e.g., Safeguard safety controllers and MasterPiece series).
• Power Generation and Distribution: Facilitates communication between power generation and distribution systems, ensuring stable operation of smart grids and substations.
• Water and Wastewater Treatment: Monitors and controls pumps, valves, and flow meters in treatment plants, ensuring efficient and reliable operation.
• Building Automation: Integrates with building management systems for HVAC, lighting, and security control, optimizing energy usage and operational efficiency.
• Manufacturing Automation: Powers automation systems in manufacturing, enabling precise control of machinery, conveyors, and robotic systems.
