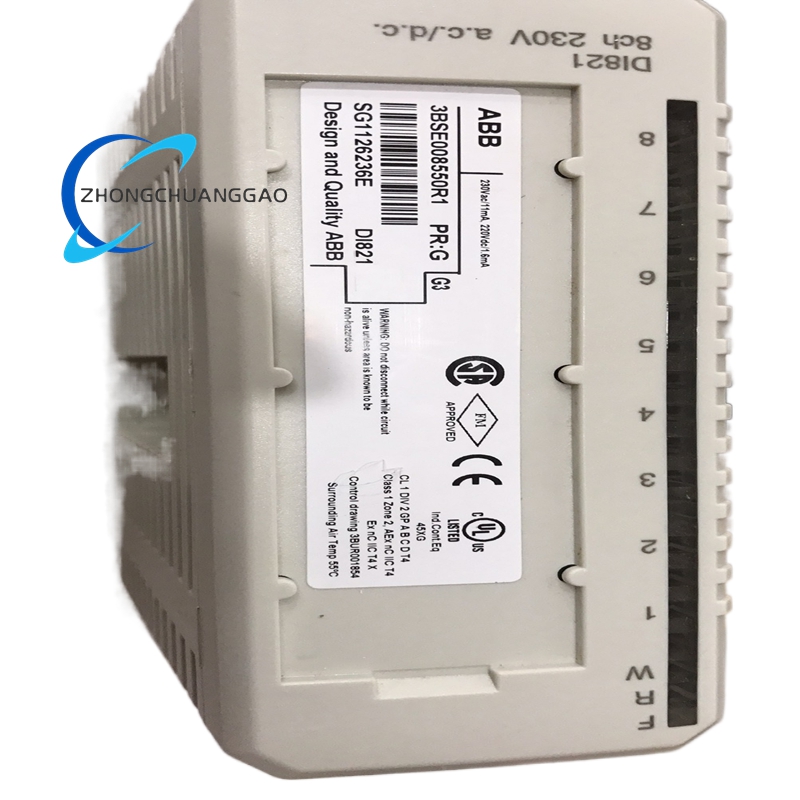

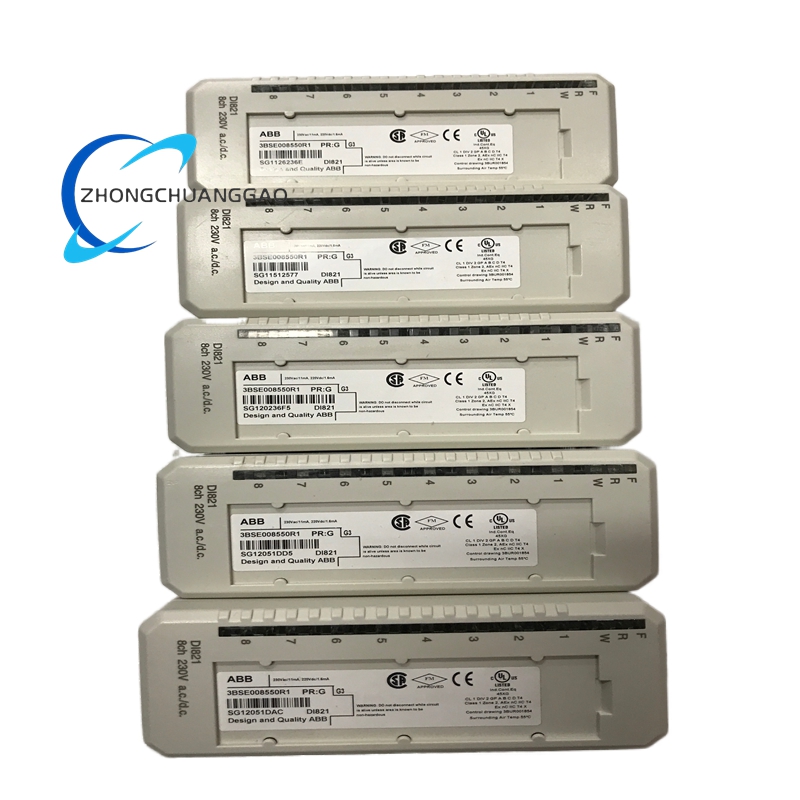

ABB DI821 3BSE008550R1 Digital Input Module

Technical Specifications

• Input Channels: Multiple independent digital input channels (typically 16 or 32, depending on configuration).
• Input Voltage Range: Suitable for standard industrial digital input levels, such as 24V DC or 48V DC.
• Signal Type: Dry contact or sink/source input.
• Response Time: High-speed input capability with a response time of ≤10ms.
• Isolation Voltage: Channel-to-channel isolation voltage of up to 1500V AC.
• Communication Protocol: Connects to the controller via S100 I/O bus or other fieldbus protocols.
• Operating Temperature: -20°C to +60°C.
• Storage Temperature: -40°C to +85°C.
• Protection Class: IP20 (standard for indoor use).
• Mounting: DIN rail or panel mounting.

Functional Features

• High Reliability: Utilizes high-quality electronic components and manufacturing processes to ensure stable operation in harsh industrial environments.
• High Precision: Accurately captures digital input signals with minimal delay.
• Flexible Configuration: Supports configurable input filtering time (1-100ms adjustable) to suppress signal noise.
• Fault Diagnosis: Provides real-time monitoring of input signal quality and module status through LED indicators (RUN/FAIL/CHx).
• Hot Swapping: Supports hot plugging and unplugging (when the system permits) for easy maintenance without interrupting operations.
• Electrical Isolation: Each channel is electrically isolated to prevent interference between inputs and enhance system safety.

Application Scenarios

• Power Generation: Used in thermal power plants, hydroelectric power plants, and wind power plants for generator status monitoring and control.
• Process Control: Applied in chemical, petroleum, and gas industries for process parameter monitoring and safety interlock systems.
• Water Treatment: Monitors water quality and flow in municipal and industrial water treatment facilities.
• Manufacturing Automation: Integrates with assembly lines, packaging machines, and material handling systems for precise control of sequential operations.
• Building Automation: Controls HVAC, lighting, and security systems in commercial and industrial buildings for energy efficiency and comfort.

Advantages

• Enhanced System Performance: Improves overall system responsiveness and accuracy in digital signal acquisition.
• Reduced Downtime: Minimizes unplanned outages through robust fault diagnosis and hot-swapping capabilities.
• Scalability: Supports easy expansion of input channels to accommodate evolving automation needs.
• Cost-Effective: Lowers operational costs by optimizing energy use and simplifying maintenance.
• Future-Proof: Compatible with ABB’s advanced control systems, ensuring long-term viability and support.
