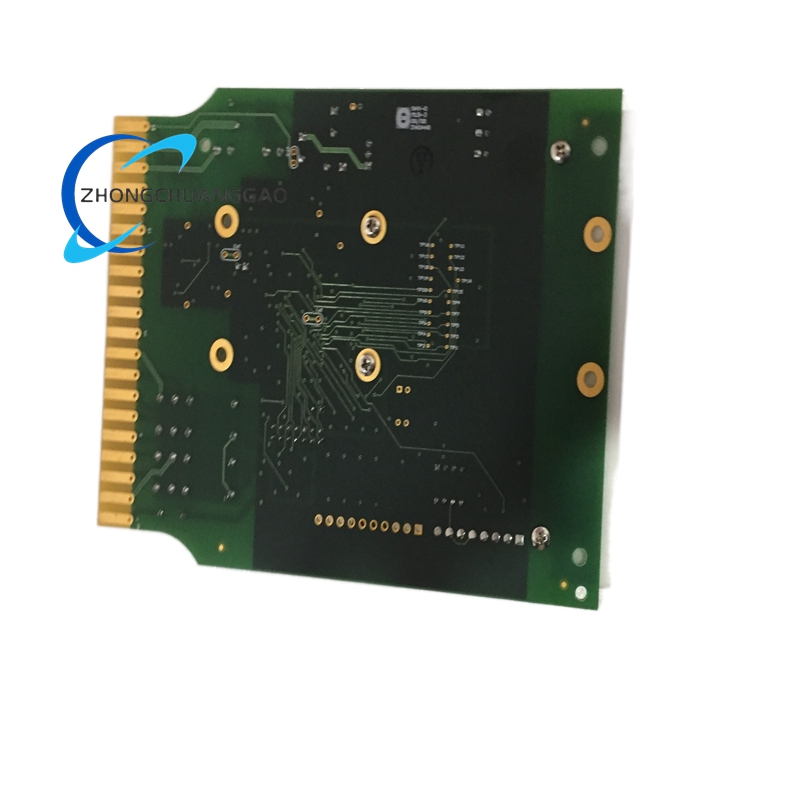

ABB DFI-110-340F Digital Input/Output Module

Technical Specifications

• Input Channels: 16 digital input channels
• Output Channels: 16 digital output channels
• Power Supply Voltage: 24V DC
• Maximum Current Consumption: Typically low, suitable for industrial environments
• Key Backlight Control:
  • Automatic: Illuminates when power is turned on or any key is pressed; turns off after approximately 30 seconds of inactivity.
  • ON: Constant illumination
  • OFF: No illumination
• External Signal Input (DI) Functions:
  • Run/Stop: Controls the operation status of connected devices.
  • Reset: Resets the system or device to its initial state.
  • Fast: Accelerates the operation speed of connected devices.
  • PTN 1-20: Selects different operating modes with corresponding BCD codes (e.g., PTN 1 = BCD code “1”).
• External Signal Output (DO) Functions:
  • TS1-TS8: Time signals for various timing control applications.
  • Run/Stop Status: Indicates the current operation status of connected devices.
  • Reset Status: Shows whether the system or device is in a reset state.
  • Wait Status: Indicates if the system is in a waiting mode.
  • End Status: Signals the completion of a process or operation.

Functional Characteristics

• High Reliability: Designed for stable operation in harsh industrial environments, ensuring continuous and accurate performance.
• Versatile Connectivity: Supports a wide range of digital devices, providing flexibility in system configuration and integration.
• Easy Installation: Features a compact and modular design for simple mounting and wiring, reducing installation time and effort.
• Diagnostic Capabilities: Includes built-in diagnostic tools to monitor module status and detect faults, facilitating quick troubleshooting and maintenance.
• Customizable Backlight: Allows users to set the backlight mode according to their preferences, improving usability in different lighting conditions.
• Clear Signal Indication: Provides clear status indications for both input and output signals, enhancing system monitoring and control.

Application Scenarios
The ABB DFI-110-340F module is widely used in various industrial automation fields, particularly in:

• Robot Systems: Manages robot actions and detects the position and status of robot end effectors, enhancing precision and efficiency.
• Machine Control: Controls conveyor belts, actuators, and other equipment on production lines while monitoring sensor status.
• Process Control: Monitors and controls production processes in chemical, petroleum, pharmaceutical, and other industries, ensuring optimal operation and safety.
• Power Generation and Distribution: Manages electrical equipment in power plants and substations, ensuring reliable power supply and distribution.
• Water Treatment: Controls chemical dosing and process variables in water treatment plants, optimizing treatment efficiency and water quality.
• Automotive Manufacturing: Controls production lines and monitors the status of various equipment in automobile manufacturing plants, ensuring high-quality and efficient production.
