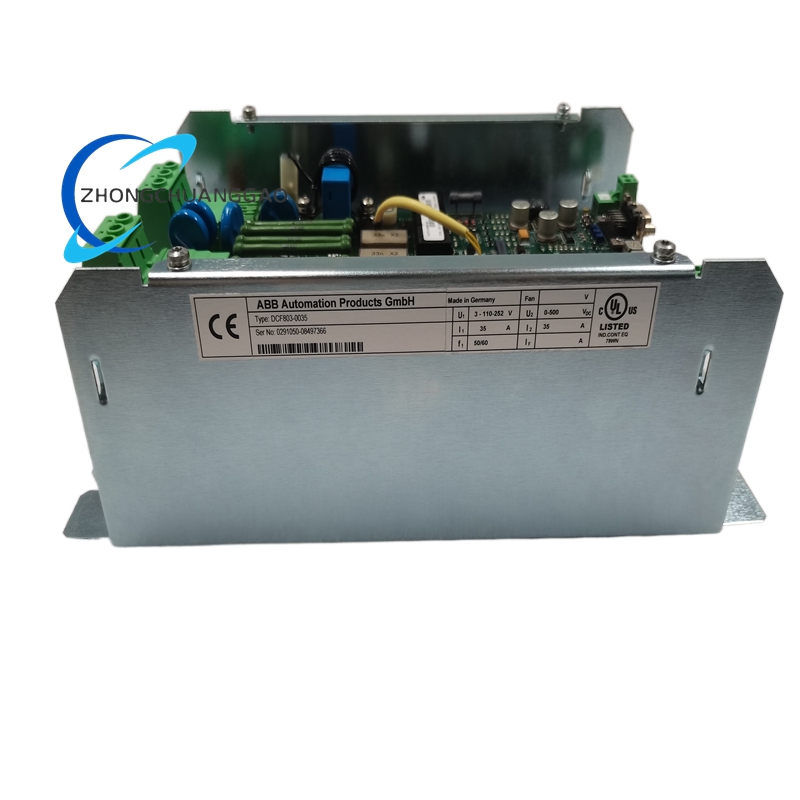

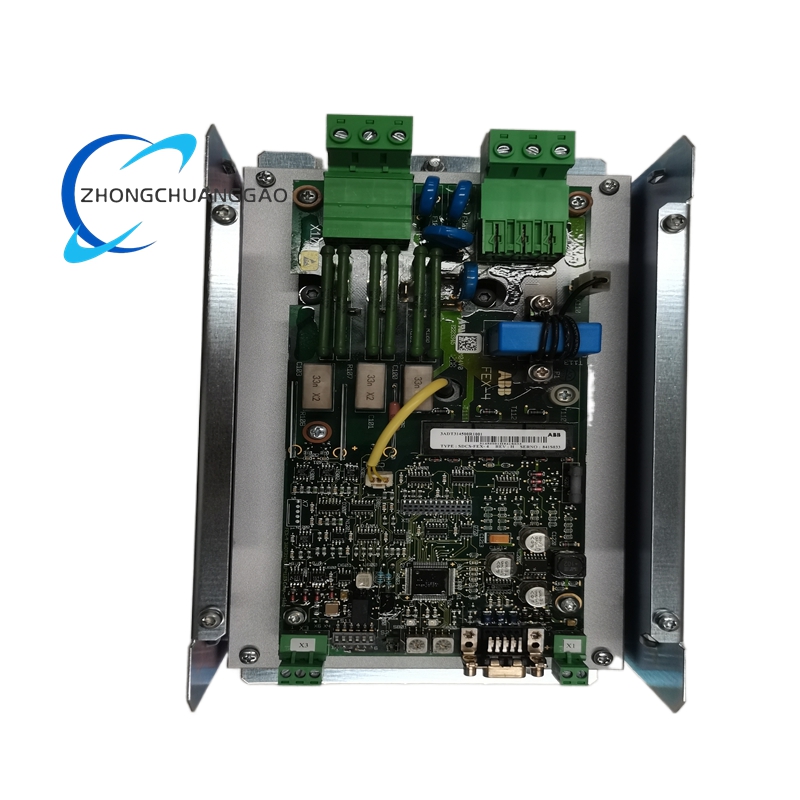

ABB DCF803-0035 Excitation Control Unit

Technical Specifications

• Input: Three-phase 500 V AC, 50/60 Hz
• Output: 35 V DC, 35 A (efficiency > 90%)
• Voltage Stability: Fluctuation < ±1%
• Dynamic Response Time: < 10 ms
• Channel Insulation Resistance: ≥ 100 MΩ (tested at 500 V DC)
• Power Consumption: Approximately 33 W
• Operating Temperature Range: -20 °C to 55 °C
• Storage Temperature Range: -40 °C to 70 °C
• Protection Class: IP20
• Communication Protocols: Profibus-DP/V1, Modbus
• Compatibility: ABB 800xA automation platform, SDCS-IOB series expansion modules
• Certifications: CE, UL, cUL

Functional Features

• Stable Voltage Regulation: Maintains generator outlet voltage and reactive power stability through precise excitation current control.
• High Efficiency: Output current of 35 A with efficiency exceeding 90%, reducing energy loss.
• Robust Protection: Built-in overload, short-circuit, over-temperature protection, and automatic recovery functions.
• Remote Diagnostics: Supports remote monitoring and firmware updates via ABB diagnostic tools. Error codes can be read for troubleshooting (e.g., communication interruptions, unresponsive boards).
• Modular Design: Hot-swappable for easy maintenance, with a repair time of ≤ 15 minutes. Supports single-channel independent operation or dual-channel hot standby.
• Anti-Interference: Utilizes shielding and filtering technologies to resist electromagnetic interference, complying with IEC 61800-3 standards.
• High Reliability: Average Mean Time Between Failures (MTBF) of 100,000 hours.

Application Scenarios

• Power Generation: Used in hydroelectric, thermal, and wind power plants for generator excitation control.
• Industrial Automation: Integrates with ABB DCS500/DCS800 drive systems for motor excitation in manufacturing and process control.
• Energy Infrastructure: Supports grid stability in renewable energy systems and power transmission networks.
• Critical Facilities: Ensures reliable operation in data centers, hospitals, and other mission-critical environments requiring uninterrupted power supply.

Advantages

• Enhanced System Performance: Improves overall efficiency and responsiveness of excitation systems.
• Reduced Downtime: Minimizes unplanned outages through robust protection and self-diagnostic capabilities.
• Scalability: Modular design allows for easy expansion and integration with existing systems.
• Cost-Effective: Lowers operational costs by optimizing energy use and simplifying maintenance.
