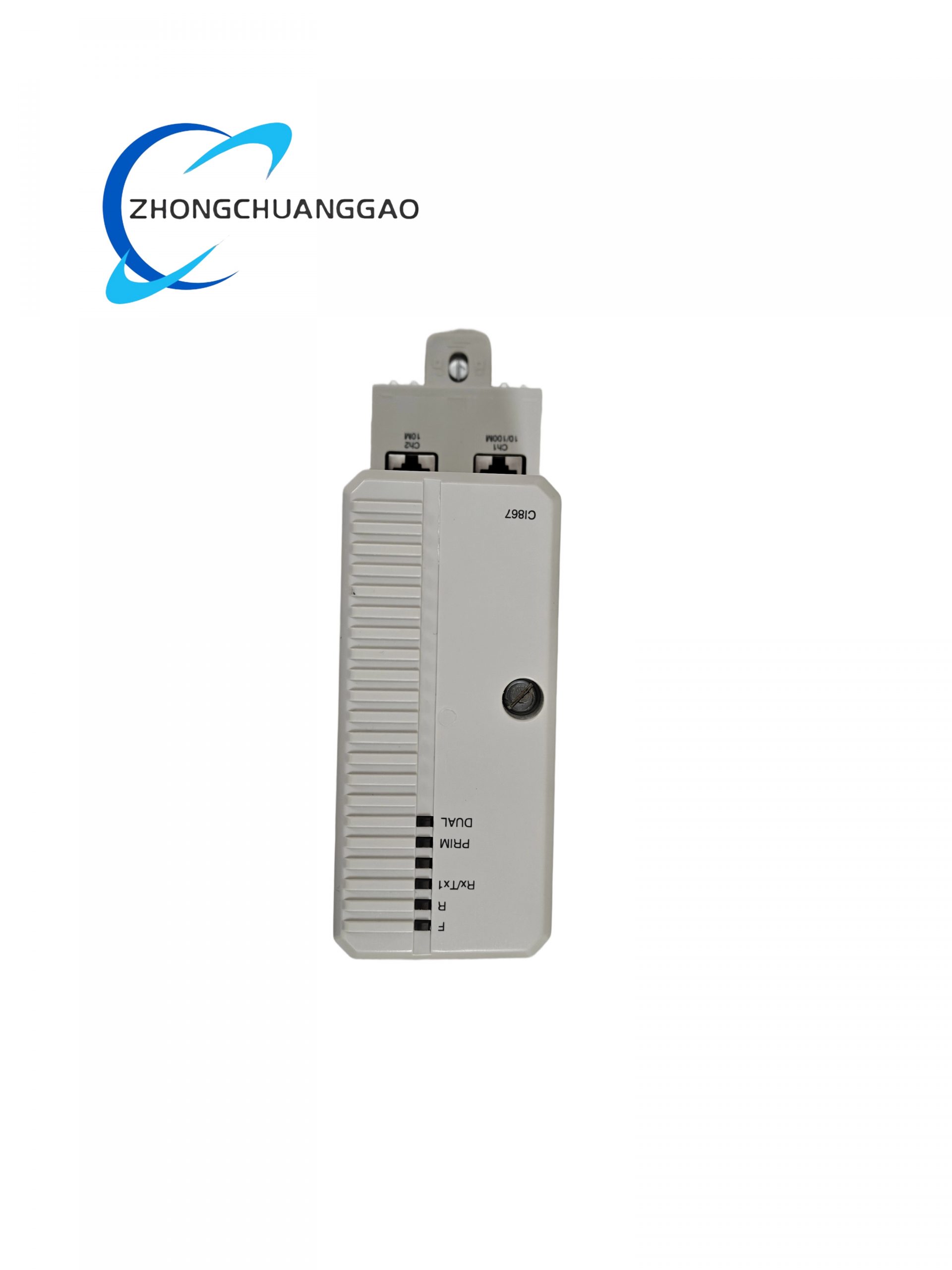

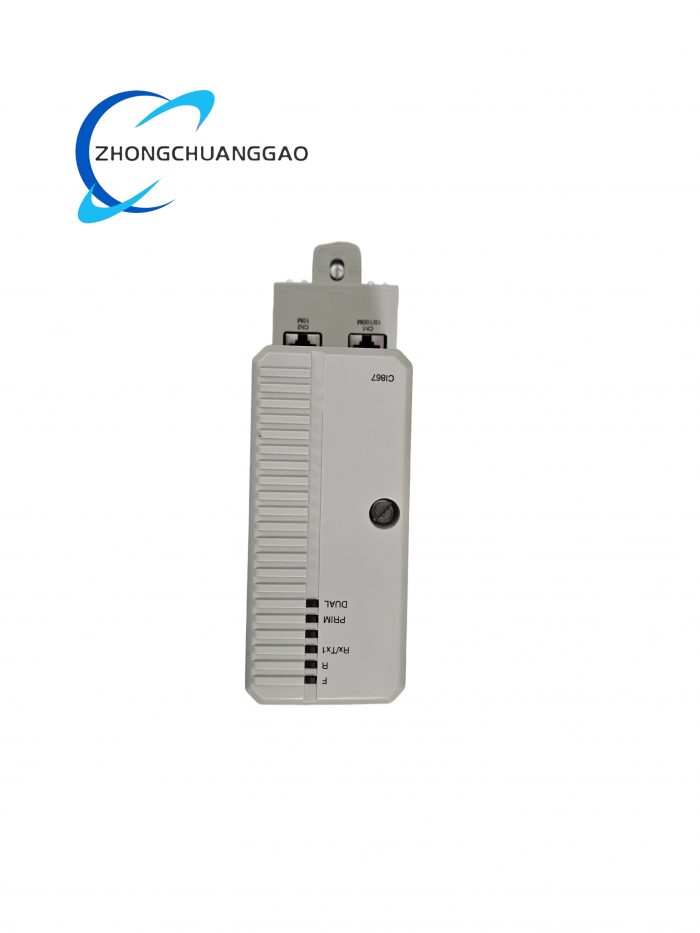

ABB CI867K01 3BSE043660R1 Communication Module - Image 1

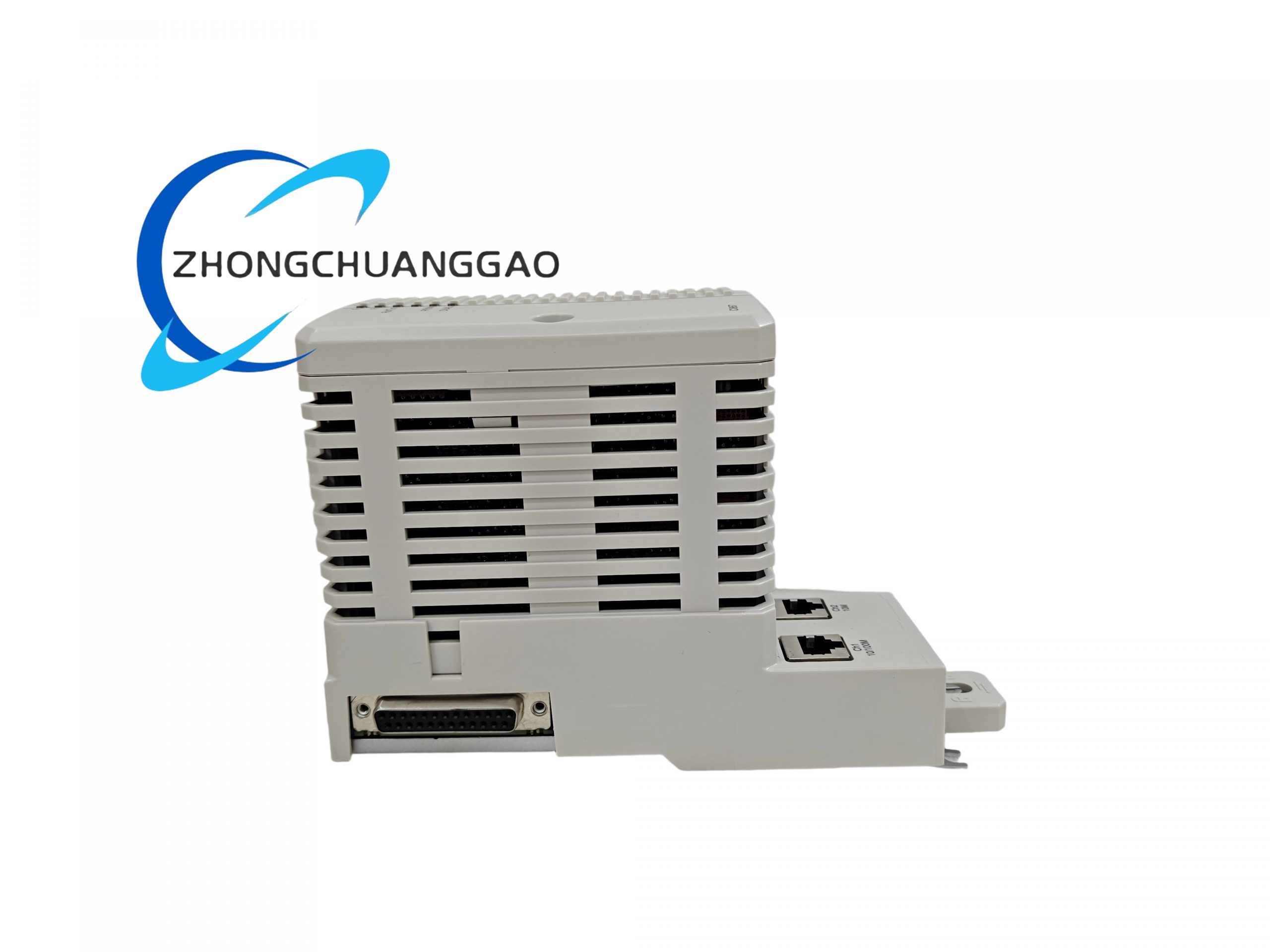

ABB CI867K01 3BSE043660R1 Communication Module - Image 2

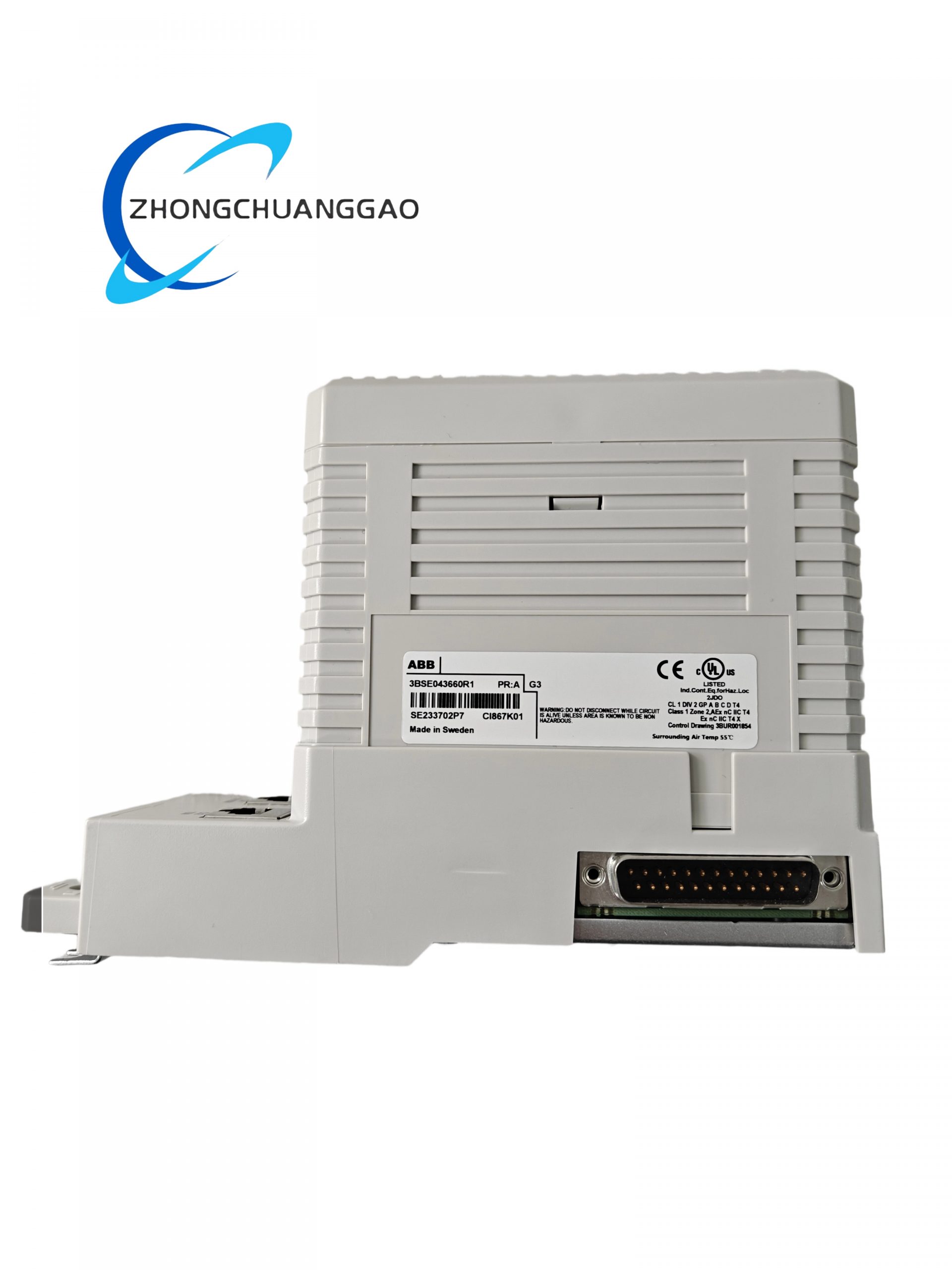

ABB CI867K01 3BSE043660R1 Communication Module - Image 3

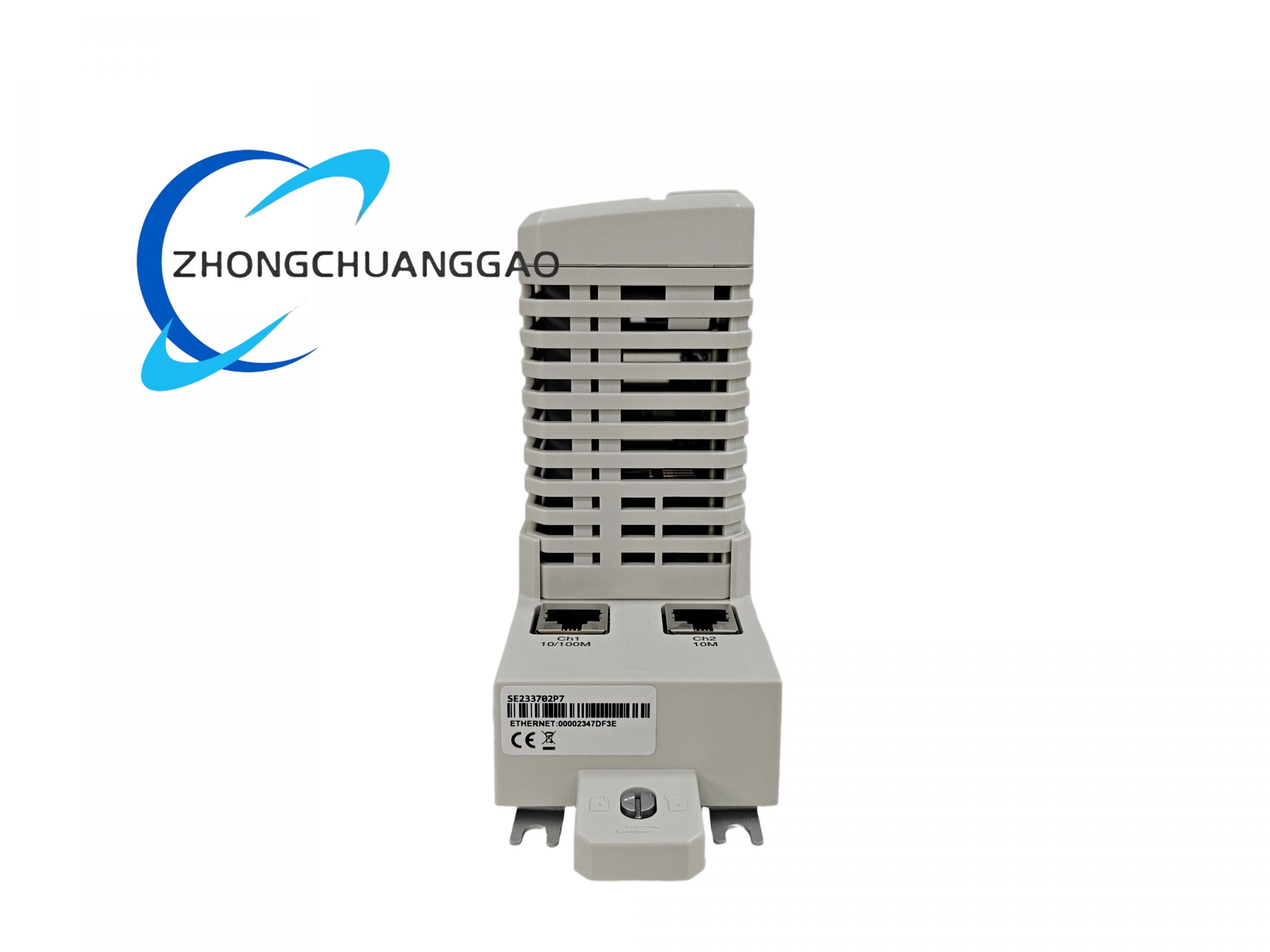

ABB CI867K01 3BSE043660R1 Communication Module - Image 4
Click to enlarge
ABB CI867K01 3BSE043660R1 Communication Module
ABB CI867K01 3BSE043660R1 Communication Module - Image 2
ABB CI867K01 3BSE043660R1 Communication Module - Image 3
ABB CI867K01 3BSE043660R1 Communication Module - Image 4
ABB BDFC-01C Backplane Module
ABB BDFC-01C Backplane Module
Back to products
ABB DKTFM418B Motor Drive Module
ABB DKTFM418B Motor Drive Module

ABB CI867K01 3BSE043660R1 Communication Module

Technical Specifications

  • Communication Protocol: Modbus TCP (OSI layer 7).
  • Channels: 2 independent channels. Channel 1 is 10/100 Mbit/s full – duplex, and Channel 2 is 10 Mbit/s half – duplex.
  • Device Capacity: Supports up to 70 slaves + 8 masters.
  • Redundancy & Hot – swap: Has module redundancy and hot – swap function.
  • Hardware Interfaces: Connects to the CEX bus, and the network interface is an RJ – 45 female connector. It allows 12 units on the CEX bus.
  • Power Consumption: Typical 160 mA @ 24 V DC.
  • Physical Parameters: Dimensions are 185 mm x 59 mm x 127.5 mm, and the weight is 700 g.
  • Operating Temperature: Up to 55 °C.
  • Protection Level: IP20.
Category:
Description

Functional Features

  • Multiple Communication Interfaces: Supports various communication interfaces such as Ethernet, serial port, and CAN bus, which can be integrated with a variety of industrial control systems, providing great flexibility and compatibility.
  • High – speed Data Processing: The module is equipped with a high – performance processor, which has a fast data transmission speed and can process a large amount of data in real – time to meet the high – real – time requirements of industrial automation systems.
  • Easy Configuration and Management: The configuration and management process of the module is very simple. It can be configured and monitored through standard network management tools, reducing maintenance and management costs.
  • Redundancy Design: With module redundancy function, it can improve the reliability and stability of the system.
  • Hot – swap Function: Allows for hot – swapping, which is convenient for maintenance and replacement without stopping the system.

Application Scenarios

  • Industrial Automation: It can communicate with various industrial devices such as sensors, actuators, PLCs, and DCSs, and is widely used in manufacturing, energy, transportation, communication and other industries.
  • Process Control: In industries such as chemical plants, power plants, and pharmaceutical plants, it is used to monitor and control various processes, realizing data exchange and control instruction transmission.
  • Data Acquisition and Monitoring: It can be used in data acquisition systems to obtain data from various sensors and devices and transmit these data to the monitoring system for real – time monitoring and analysis.
