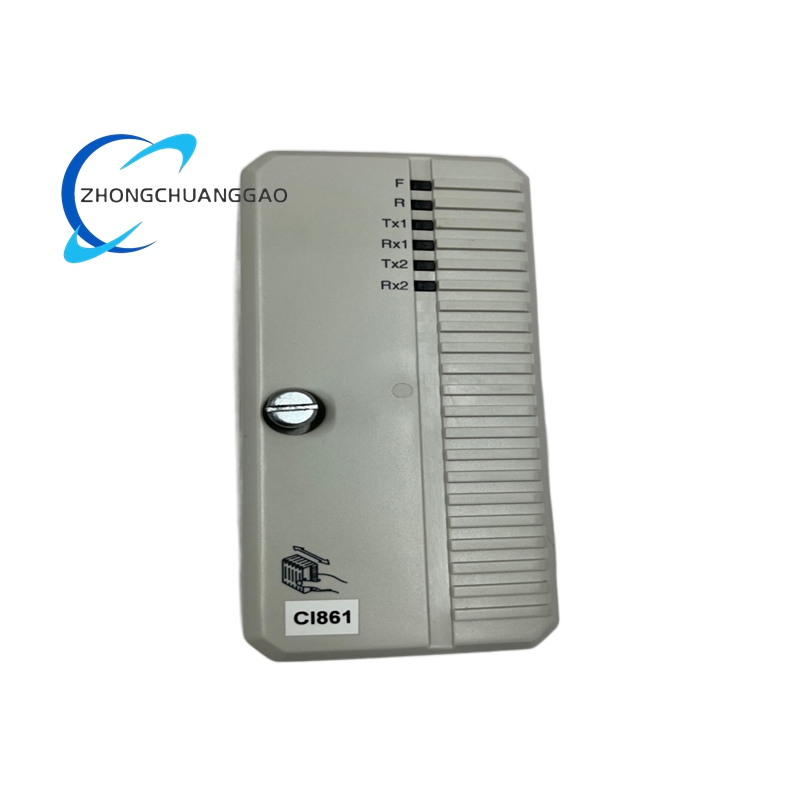

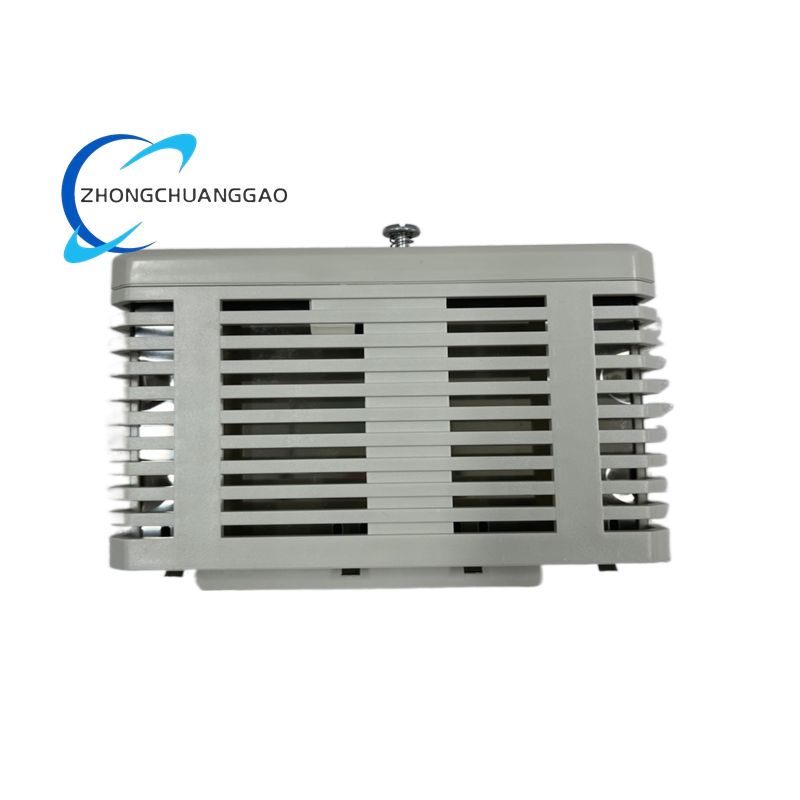

ABB CI861 3BSE058590R1 Communication Interface Module

Technical Specifications

• Communication Protocols: Supports Modbus RTU/TCP, PROFIBUS DP, EtherNet/IP, DeviceNet, and other industrial protocols.
• Communication Rate: Up to 12 Mbps, depending on the protocol and network configuration.
• Number of Ports: Typically includes two PROFIBUS ports for line redundancy, along with optional Ethernet and serial ports (RS485/RS232).
• Operating Temperature: -40°C to +70°C (industrial version), suitable for extreme environments.
• Protection Rating: IP20 design, with enhanced electromagnetic interference (EMI) and radio frequency interference (RFI) protection.
• Power Supply: 24 V DC, supplied via the I/O backplane.
• Dimensions: 63 x 99 x 132 mm, compact design for DIN rail mounting.
• Weight: Approximately 0.3 kg, lightweight for easy installation and maintenance.

Functional Characteristics

• Multi-Protocol Support: The CI861 module breaks down communication barriers by supporting multiple industrial protocols, allowing seamless integration of devices from different vendors.
• High Reliability: Built with high-quality components and a reliable circuit design, the module ensures stable operation in harsh industrial conditions, with a mean time between failures (MTBF) of up to 600,000 hours.
• Redundancy Support: Supports channel-level redundancy, enhancing system availability and reducing downtime. In case of a fault, the module automatically switches to a backup channel.
• Flexible Configuration: Users can easily configure the module using ABB’s engineering software, such as Control Builder M, to set communication parameters, I/O mapping, and diagnostic functions.
• Rich Diagnostic Capabilities: The module features built-in diagnostic tools, including LED status indicators and a diagnostic buffer, enabling quick identification and resolution of communication issues.
• Hot Swapping: Supports hot swapping, allowing modules to be replaced online without interrupting system operation, simplifying maintenance and reducing downtime.

Application Scenarios

• Chemical and Petrochemical Industry: The CI861 module connects pressure transmitters, temperature sensors, and safety instrumented systems (SIS) in chemical plants and refineries. It enables real-time monitoring of reaction kettle parameters and triggers SIS interlocks to prevent accidents, enhancing safety and reducing unplanned downtime.
• Power Generation and Distribution: In power plants, the module integrates generator control units, transformer monitoring devices, and grid communication equipment. It facilitates reliable data transmission between the AC 800M controller and field devices, ensuring stable power generation and distribution.
• Water Treatment: The CI861 module collects data from remote I/O stations at pump stations in water treatment plants and uploads it to the central SCADA system. It monitors the status of grating machines and blowers, optimizing treatment efficiency and ensuring water quality.
• Metal Smelting: In metallurgical plants, the module communicates with rolling mill main drives and ACS880 frequency converters at high speeds, ensuring precise speed synchronization and improving product quality.
• Discrete Manufacturing: The CI861 module serves as an EtherNet/IP master station in automotive production lines, connecting 12 ABB robots and 200 I/O points. It synchronizes welding and painting processes with a communication delay of less than 1 ms, boosting production efficiency and product qualification rates.
