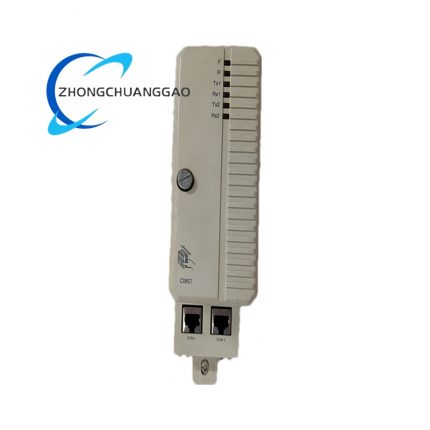

ABB CI857K01 3BSE018144R1 Industrial Communication Interface Module
ABB CI857K01 3BSE018144R1 Industrial Communication Interface Module

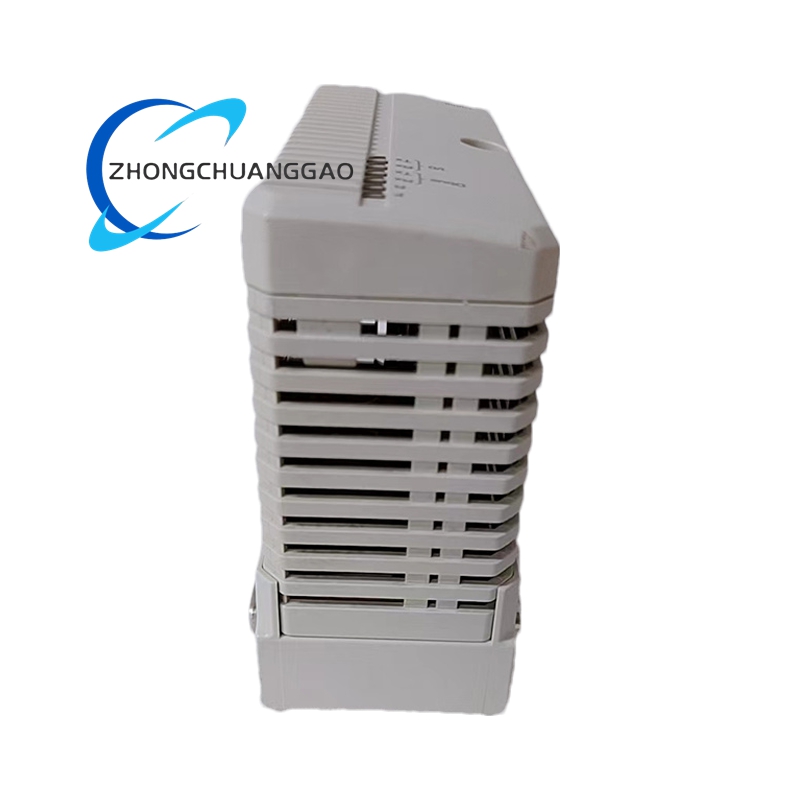

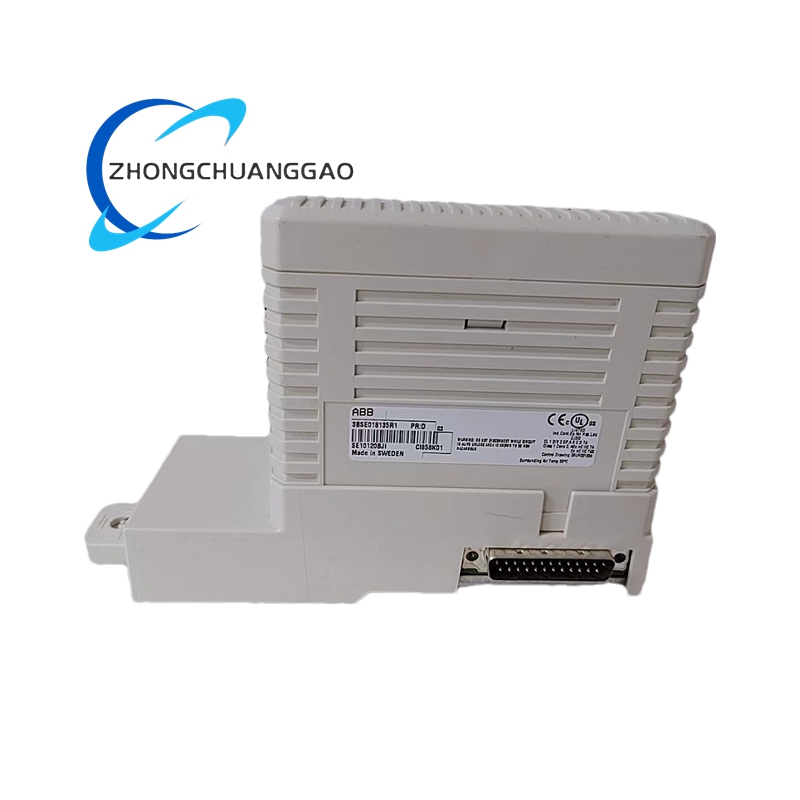

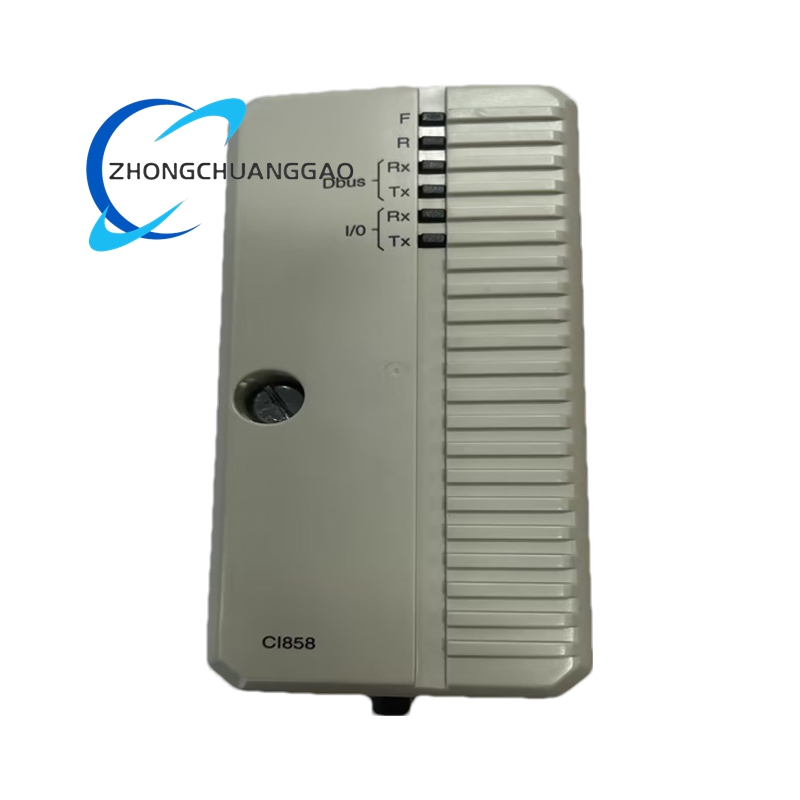

ABB CI858K01 3BSE018135R1 Drive Bus Interface Module

Technical Specifications
  • Communication Specifications
    • Protocols: Supports multiple industrial communication protocols such as PROFIBUS, PROFINET, EtherCAT, Modbus RTU, ABB Drives, ABB SPA-bus, and DriveBus.
    • Interface Type: DriveBus interface, RJ45, 25-pin D-type connector.
    • Transmission Rate: Up to 40000 kbit/s, 1 Mbps, or 1.5 Mbps (different parameter sources, subject to actual products).
    • Number of Nodes: Supports up to 32 nodes or 64 field device nodes (different parameter sources, subject to actual products).
    • Cable Length: Maximum 1000 meters.
Category:
Description
  • Power Specifications
    • Power Supply Mode: Powered by the processor unit through the CEX bus, no additional external power supply is required.
    • Power Supply Voltage Range: 19 – 30 VDC or 24 VDC (different parameter sources, subject to actual products).
    • Maximum Power Consumption: 4W.
  • Environmental Specifications
    • Operating Temperature: 0°C – 55°C, 0°C – 60°C, or -20°C – 60°C (different parameter sources, subject to actual products).
    • Storage Temperature: -25°C – 85°C or -40°C – 85°C (different parameter sources, subject to actual products).
    • Relative Humidity: 5% – 95% (non-condensing).
    • Protection Level: IP20 or IP65 (different parameter sources, subject to actual products).
  • Physical Specifications
    • Dimensions: 125mm × 65mm × 30mm, 71mm × 135mm × 72mm, 115mm × 60mm × 25mm, or 127.5mm × 185mm × 59mm (different parameter sources, subject to actual products).
    • Weight: 200g, 0.55kg, or approximately 1.2kg (different parameter sources, subject to actual products).
    • Installation Method: DIN rail mounting.
  • Certification: Complies with CE, UL, IEC 60529, EMC Directive 2014/30/EU, and RoHS Directive 2011/65/EU (different parameter sources, subject to actual products).
Functional Features
  • High-Speed and Efficient Communication: It has a fast data transmission speed and good real-time performance, which can quickly transmit the status, parameters, fault information of the frequency converter, and ensure the efficient operation of the system.
  • Multi-Protocol Support: Supports a variety of communication protocols, which can be flexibly configured according to different application requirements and is compatible with multiple devices.
  • High Reliability: It adopts industrial-grade design, high-quality materials and advanced circuit design, with anti-interference, lightning protection, and stable operation capabilities, suitable for harsh industrial environments.
  • Hot Swappable: Supports hot swapping, which is convenient for maintenance and expansion without affecting the normal operation of the system.
  • Easy Installation and Maintenance: The modular design is easy to install, maintain, and can be quickly integrated into the existing system.
  • Flexible Configuration: Provides a variety of configuration options to meet different application scenarios and realize customized functions.
  • Multi-Frequency Converter Connection: One module can connect multiple ABB frequency converters, improving the scalability of the system.
  • Star Topology Construction: Through the branch unit NDBU, a logical bus with a physical star topology can be constructed.
Application Scenarios
  • Industrial Automation Production Lines: Used in various industrial automation systems such as production lines and packaging lines to realize the communication and control of equipment.
  • Process Control Field: Applied to process control systems such as temperature control and flow control, and used in the chemical, electric power, and metallurgical industries.
  • Robot and Discrete Automation: Used in the automotive manufacturing, electronics, packaging, and logistics industries to realize the automation and intelligence of the production process.
  • Drive Control System: Suitable for drive control systems such as rolling mill drive systems and paper machine control systems, and used for the segmented drive of rolling mills and paper machines.
  • Water Treatment Field: Applied to sewage treatment and tap water treatment systems to realize the monitoring and control of related equipment.
  • Building Automation: Used in air conditioning and ventilation systems in building automation to ensure the stable operation of the equipment.
