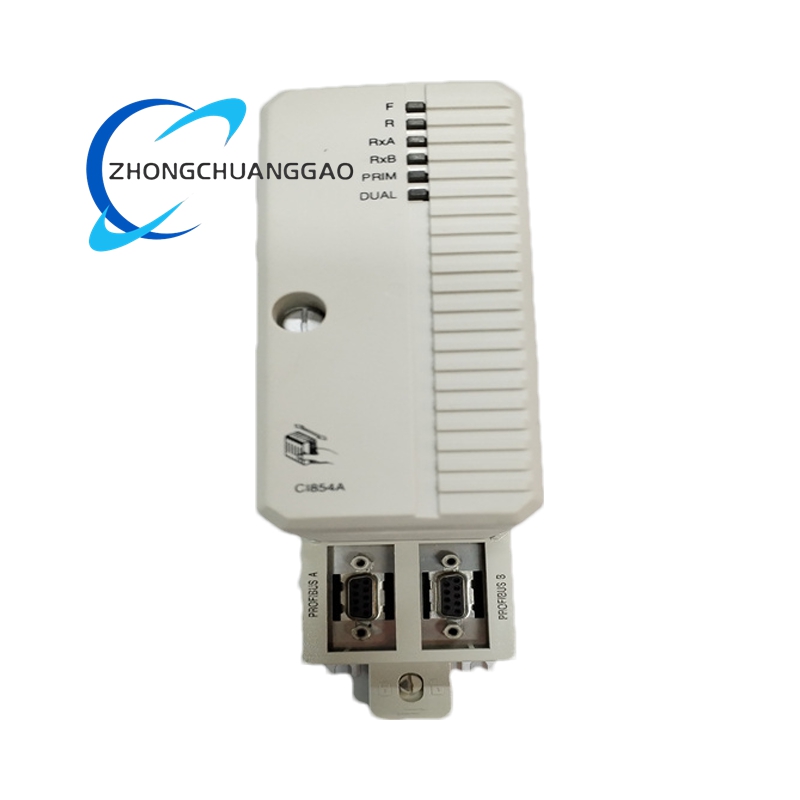

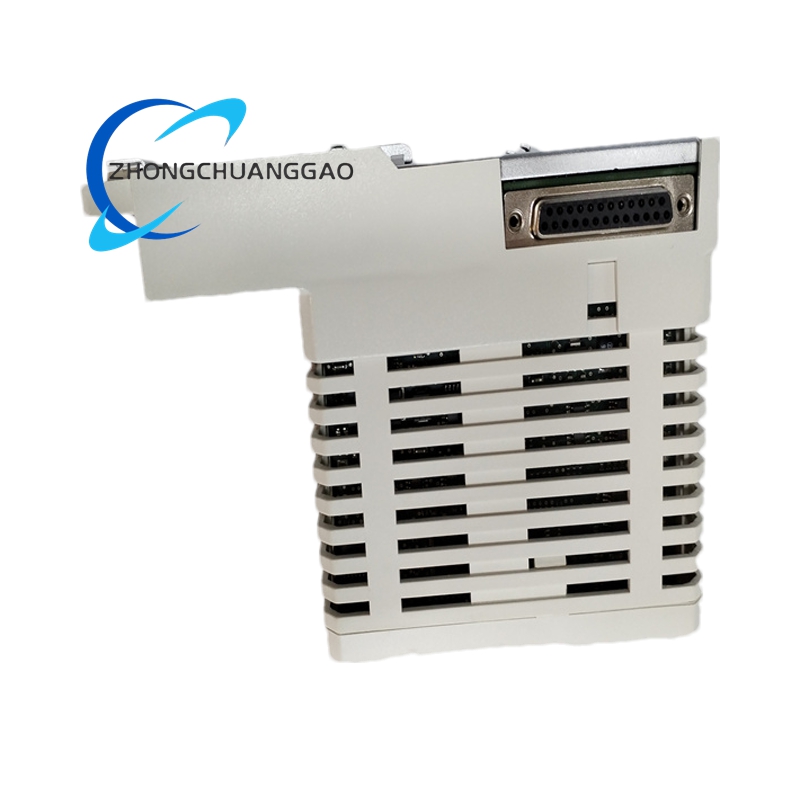

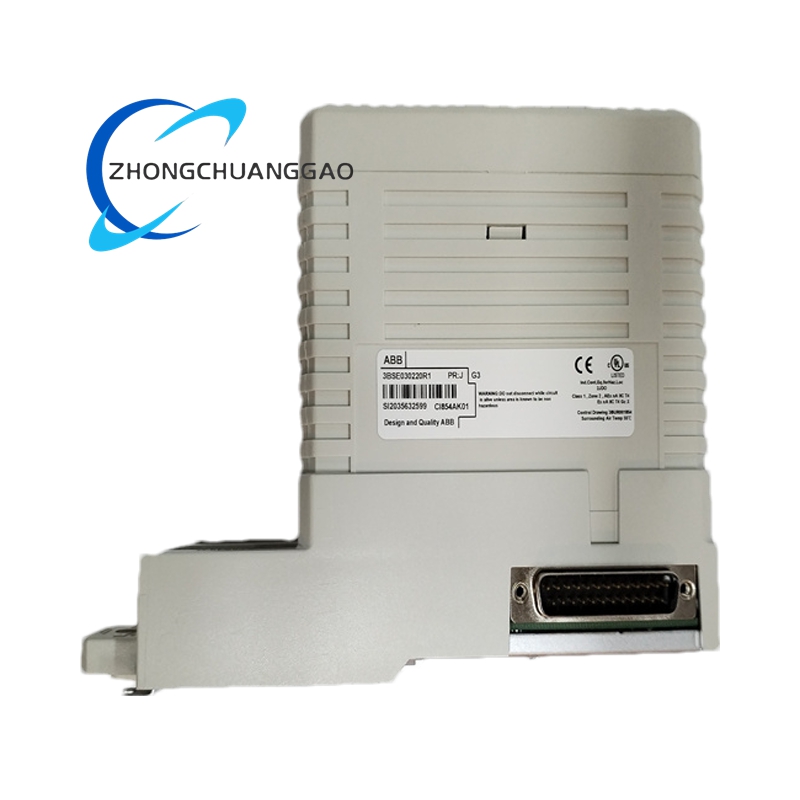

ABB CI854AK01 Communication Interface Module

• Noise: <0.2mVrms.
• Power Supply Voltage: 24V DC ±20%.
• Power Consumption: 5W.
• Input Current: Maximum 5mA (input current), maximum 0.5A (another input current parameter).
• Operating Temperature: -20°C to +60°C.
• Storage Temperature: -40°C to +85°C.
• Protection Level: IP65 (compliant with relevant standards).
• Dimensions: There are two sets of data. One is 127.5mm (depth) × 185mm (height) × 59mm (width), and the other is 110mm × 60mm × 25mm.
• Weight: There are three sets of data, approximately 0.59kg, 0.2kg, and 0.8kg respectively.
• Installation Method: Installed in the chassis of the AC 800M controller, and can also be installed on a DIN rail.

Functional Features

• High Compatibility: Supports PROFIBUS-DP/V1, Modbus TCP, Ethernet/IP and other protocols, and can be compatible and communicate with different devices and systems.
• High Performance: It has 4-channel analog input, 12-bit resolution, and a sampling rate of up to 1kHz, with high precision and low noise, ensuring the accuracy and reliability of measurement data.
• Redundancy Function: Supports line redundancy and master station redundancy functions. When a line or master station fails, the system can automatically switch to a backup line or master station to ensure the continuity and stability of communication.
• Hot-Swappable: The module can be inserted or pulled out at any time without shutting down the machine, which is convenient for maintenance and replacement work.
• High-Speed Processing Capacity: It can process a large amount of data at a fast speed, which helps to improve the real-time performance and efficiency of the system.
• Programmability: Users can program it to control industrial processes and machines to meet different control requirements.
• Security: It can protect industrial processes and machines from external interference and attacks, ensuring the safe operation of the system.
• Easy Maintenance: The modular design is easy to plug and unplug, and remote diagnosis and maintenance can be realized, reducing maintenance costs and time.

Application Scenarios

• Industrial Automation Control: It is widely used in various industrial automation fields such as process control, discrete control, data acquisition, monitoring, and protection, to realize the connection and data transmission between field devices and the control system.
• Chemical Industry: It can be used in the automation control process of chemical production equipment, such as monitoring and controlling parameters such as temperature, pressure, and flow in chemical reactors.
• Petroleum and Natural Gas Industry: Applied to the automation system of oil and gas exploration, exploitation, and transportation equipment to ensure the safe and efficient operation of the equipment.
• Power Industry: Used in power generation, transmission, and distribution systems to realize data collection and control of power equipment, improving the stability and reliability of the power system.
• Water Treatment Industry: It is used in the automation control of water treatment processes such as water purification and sewage treatment to monitor and adjust various water quality parameters.
• Food and Beverage Industry: It can be integrated into the production line automation system of the food and beverage industry to control production processes and ensure product quality and production efficiency.
• Automobile Manufacturing Industry: Applied to the automation control of automobile production lines, such as the control of robot operation and assembly processes on the production line.
