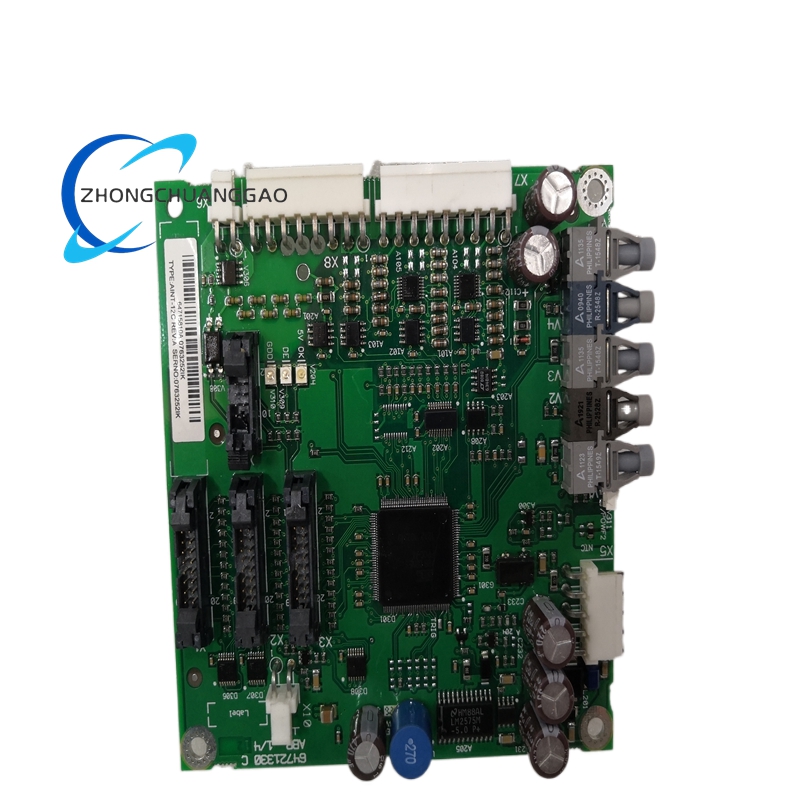

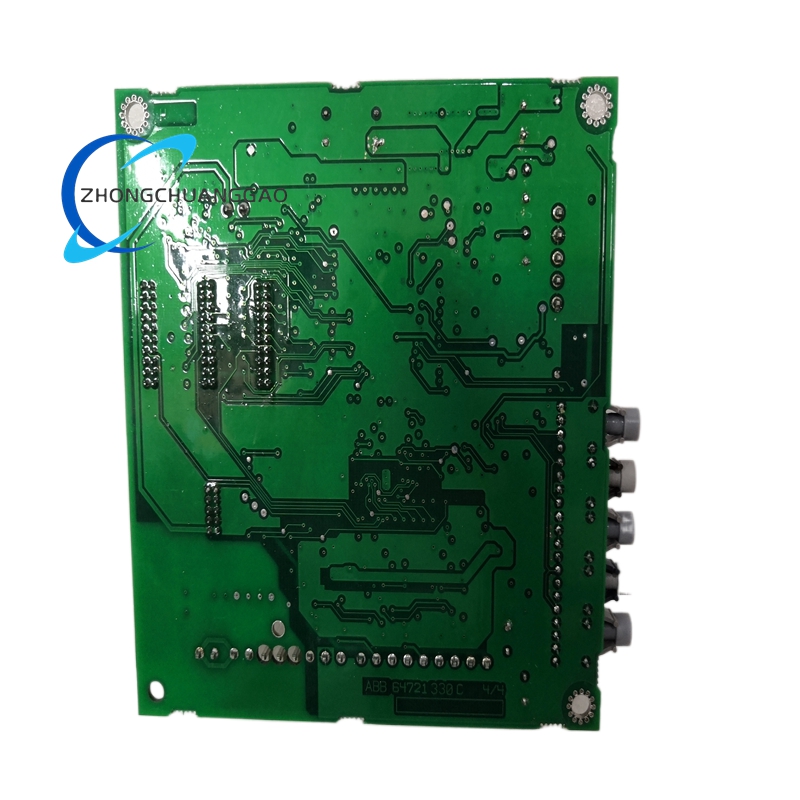

ABB AINT-02C Communication Control Board

Technical Specifications:

• Input Type: Supports voltage/current signals, including 0-10V DC, ±10V, 4-20mA, and 0-20mA, with short-circuit protection.
• Resolution: 16-bit (0.0015% FS accuracy).
• Sampling Rate: 10ms/channel (high-speed version) or 100ms/channel (standard version).
• Isolation Level: 1500V AC between channels; 3000V AC between input and system.
• Power Supply: 24V DC (±10%), power consumption ≤3W.
• Communication Interface: Supports PROFIBUS-DP, RS485 Modbus RTU, and other standard protocols.
• Operating Temperature: -25°C to +70°C (industrial wide temperature range).
• EMC Protection: Complies with IEC 61000-4-4 Level 4 standard (strong anti-interference capability).
• Mechanical Design: Compact size (132mm × 105mm × 52mm), IP30 protection rating, aluminum alloy reinforced casing, and 35mm DIN rail mounting.

Functional Characteristics:

• Diagnostics and Fault Localization: Built-in diagnostic tools for quick troubleshooting and system maintenance.
• Protection Functions: Overload, short-circuit, and over-temperature protection, ensuring reliable operation in harsh environments.
• High Precision and Stability: 16-bit resolution and high sampling rate enable accurate signal acquisition and processing.
• Strong Anti-Interference Capability: Meets stringent EMC standards, ensuring stable performance in electrically noisy environments.
• Easy Integration: Compatible with ABB drives (e.g., ACS800 series) and can be integrated with other systems (e.g., Siemens S7, Rockwell ControlLogix) via adapters.

Application Scenarios:

• Process Control: Connects to PT100 temperature sensors and pressure transmitters for precise monitoring and control in industries such as metallurgy, petrochemicals, and chemicals.
• Automation Production Line Monitoring: Used in paper manufacturing, textile printing and dyeing, electronic manufacturing, and automotive manufacturing for real-time equipment status monitoring and production line automation.
• Energy Management and Equipment Protection: Applied in power generation, water treatment, and municipal engineering for energy efficiency optimization and equipment protection.
• System Diagnostics and Fault Prevention: Essential for boiler heating systems and power distribution networks, enabling proactive fault detection and prevention.

Advantages:

• High Reliability: Designed for continuous operation in industrial environments, with robust protection functions.
• Flexible Integration: Supports multiple communication protocols, facilitating seamless integration with various industrial systems.
• Easy Maintenance: Built-in diagnostic tools simplify troubleshooting and reduce downtime.
• Wide Temperature Range: Suitable for both extreme cold and hot environments, ensuring stable performance.
