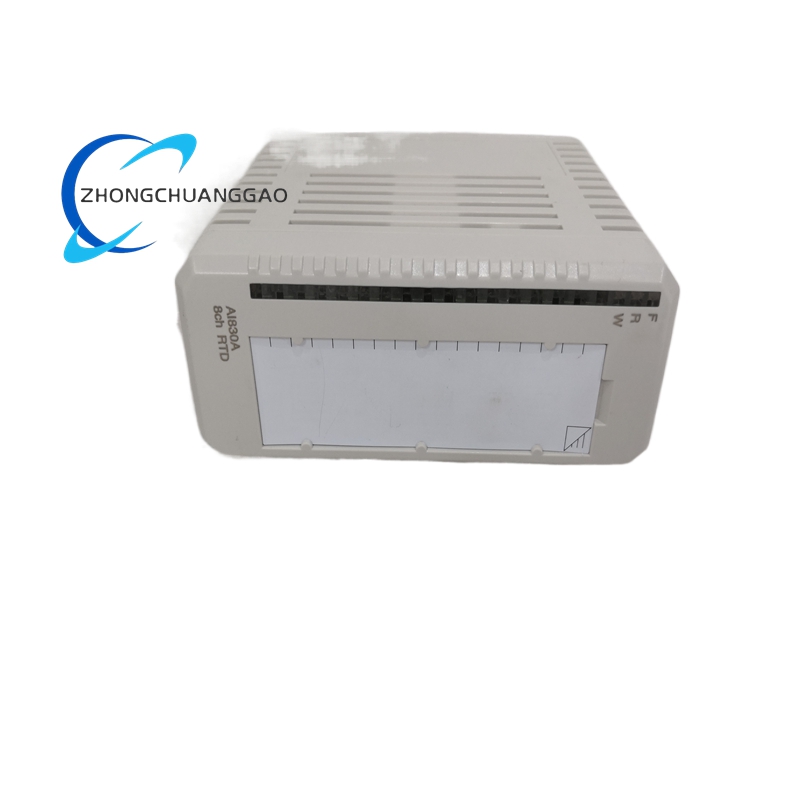

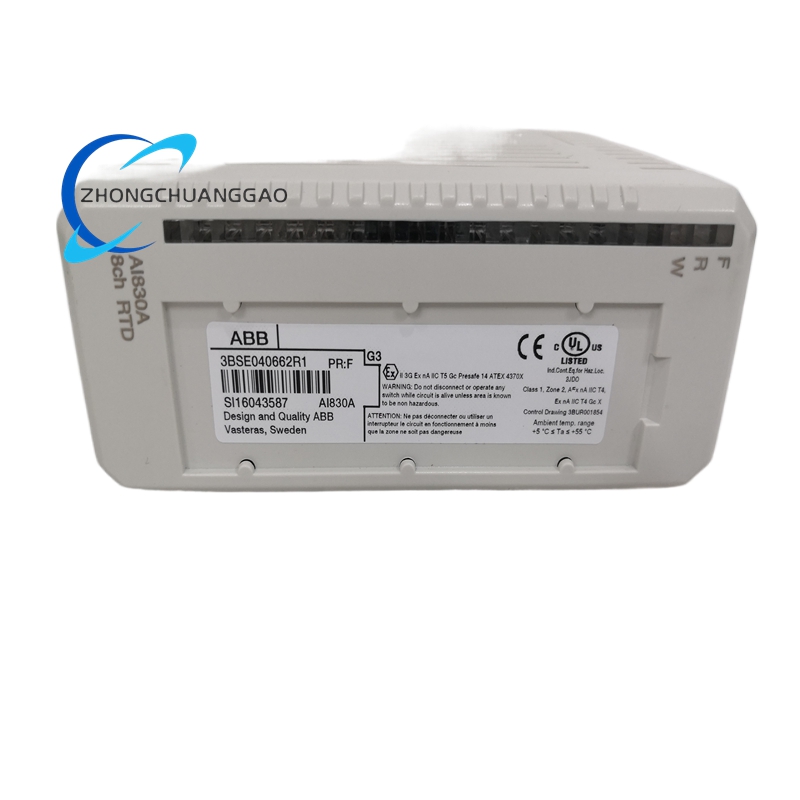

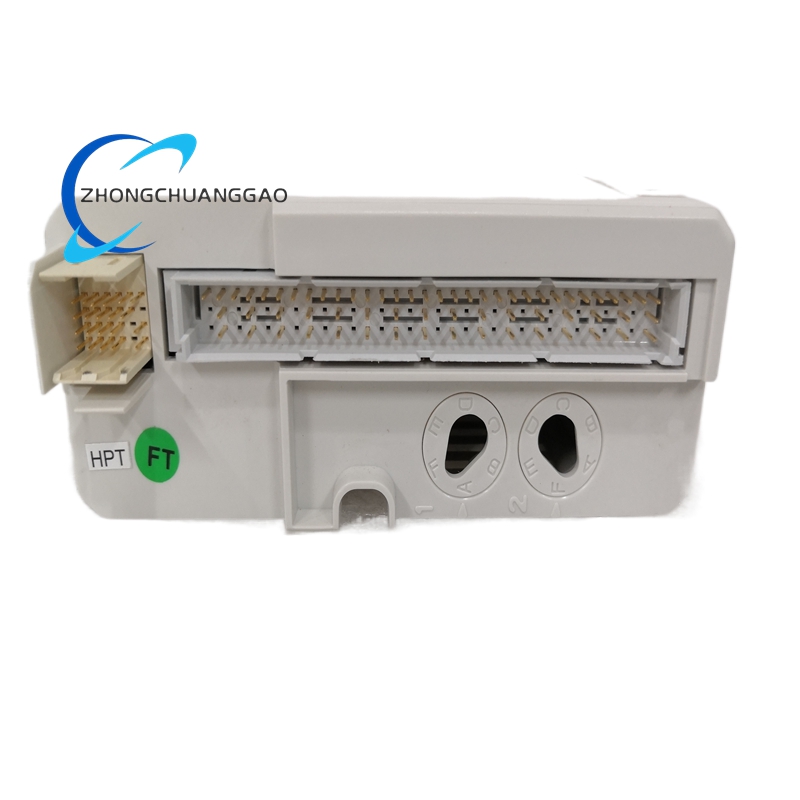

ABB AI830A Analog Input Module

Technical Specifications

• Input Channels: 8 analog input channels, supporting simultaneous monitoring of multiple analog signals.
• Signal Types: Compatible with various standard industrial analog signals, including voltage (0-10V) and current (4-20mA), as well as thermocouples and resistance temperature detectors (RTDs) such as Pt100, Cu10, Ni100, and Ni120.
• Resolution: 14-bit high-resolution analog-to-digital conversion, ensuring accurate measurement of analog signals.
• Sampling Speed: Each channel supports a sampling speed of 50ms, enabling rapid data acquisition.
• Accuracy: Measurement error controlled within ±0.1%, providing reliable data for industrial processes.
• Isolation Voltage: Effective isolation between channels to prevent signal interference.
• Operating Temperature: -20°C to +60°C, suitable for various industrial environments.
• Response Time: Less than 100ms, ensuring real-time data transmission.

Functional Characteristics

• High Precision and Stability: Utilizes a high-performance analog-to-digital converter to ensure measurement accuracy and stability.
• Multi-Signal Compatibility: Supports multiple types of analog signals, meeting diverse measurement needs in complex environments.
• Channel-Independent Configuration: Each input channel can be individually configured, including range, sensitivity, and filter parameters, allowing for optimized measurement settings based on actual requirements.
• Built-in Linearization and Temperature Conversion: For temperature measurement applications, the module features built-in linearization and temperature conversion functions, supporting seamless switching between Celsius and Fahrenheit.
• Open/Short Circuit Monitoring: The input terminals are equipped with open-circuit and short-circuit monitoring functions, along with an input grounding sensor, to ensure measurement safety.
• Power Frequency Filter: The MainsFreq parameter allows setting the main frequency filter cycle time, providing 50Hz or 60Hz notch filters to reduce power frequency interference and improve measurement accuracy.
• Modular Design: Based on a DIN rail design, the module is easy to install and maintain, saving on-site construction time and facilitating system upgrades and expansions.

Application Scenarios

• Chemical Industry: Accurate temperature and pressure signal acquisition is crucial for safe production. The AI830A supports multi-channel rapid feedback, meeting the requirements for precise control in chemical processes.
• Petrochemical Industry: The module’s high-precision input capabilities are essential for monitoring various parameters in petrochemical production, ensuring process stability and product quality.
• Metallurgical Industry: In high-temperature and strong electromagnetic interference environments, the AI830A demonstrates excellent anti-interference capabilities and stability, making it suitable for metallurgical applications.
• Pharmaceutical and Food Processing Industries: The module’s high-precision input helps ensure product quality compliance, meeting stringent industry standards.
• Power Industry: Automatic monitoring systems in the power sector rely on a large amount of stable data input. The AI830A’s multi-channel and high-precision advantages make it ideal for complex data acquisition needs in power generation, transmission, and distribution.

Additional Features

• Simple Installation and Configuration: The module can be quickly installed on a DIN rail and configured via parameters or programming, reducing installation and commissioning time.
• Strong Environmental Adaptability: Capable of operating stably under high electromagnetic noise, vibration, and high-temperature conditions, complying with industrial-grade safety and reliability standards.
• Comprehensive Protection Mechanisms: Includes overvoltage, overcurrent, short-circuit, and overheating protection to safeguard downstream equipment.
