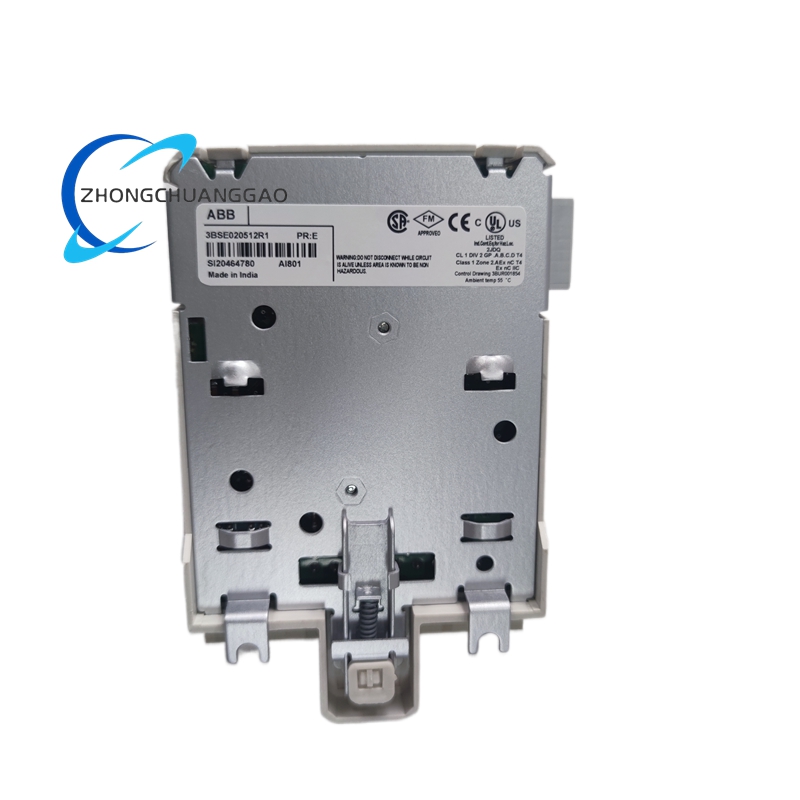

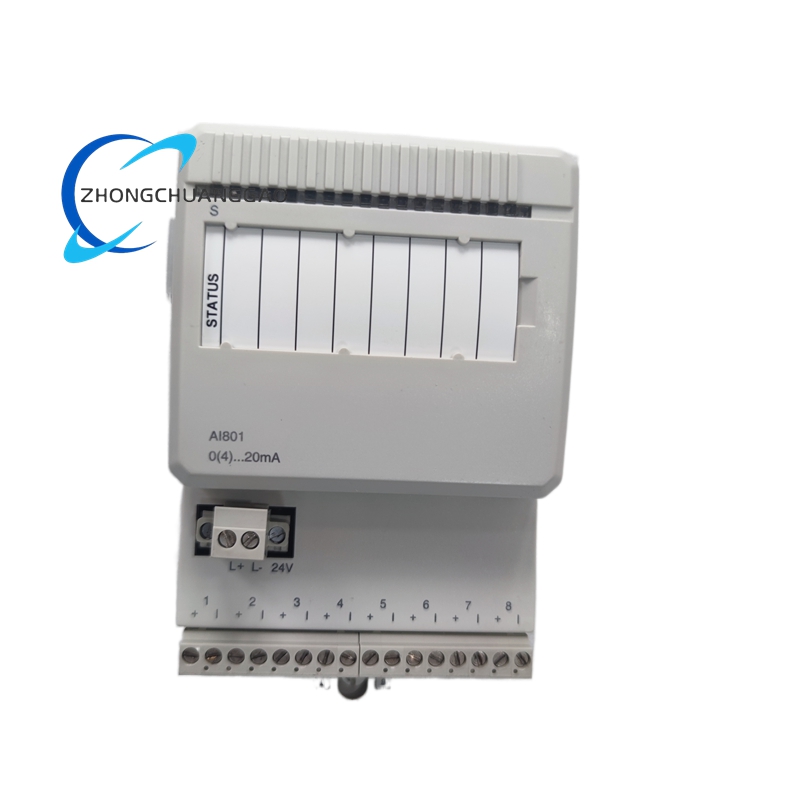

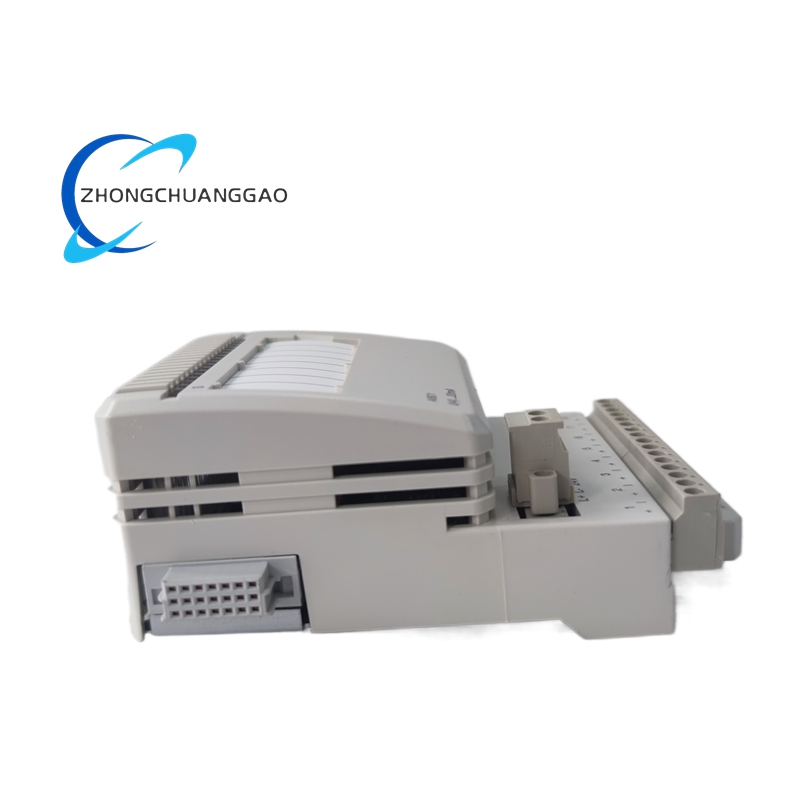

ABB AI801 Analog Input Module

• Supported Signal Types:
  • Current signals: 0-20 mA, 4-20 mA d.c.
  • Voltage signals: 0-10 V, 2-10 V
• Resolution: 12-bit
• Input Impedance:
  • Voltage input: 290 kΩ
  • Current input: 230-275 Ω
• Maximum Cable Length: Up to 600 meters (656 yards)
• Isolation: One group of 8 channels isolated from the module bus
• Input Protection:
  • Overvoltage protection up to 30 V d.c. via PTC resistors
  • Short-circuit protection on analog inputs
• Power Supply: External 24 V d.c. converted to power the input stage
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +80°C
• Relative Humidity: 5% to 95% (non-condensing)
• Dimensions: 82 mm x 50 mm x 23 mm
• Weight: Approximately 200 grams

Functional Characteristics

• High Precision Measurement: Utilizes 12-bit resolution for accurate conversion of analog signals into digital data.
• Versatile Input Support: Supports both current and voltage input signals, accommodating a wide range of sensors and transducers.
• Robust Protection Mechanisms: Features overvoltage and short-circuit protection to safeguard the module and connected equipment.
• Isolation Design: All eight channels are isolated as a group from the module bus, enhancing system stability and reducing interference.
• HART Communication Compatibility: Inputs are capable of handling HART communication signals, facilitating advanced sensor diagnostics and configuration.
• Easy Installation and Connection: Uses removable connectors for simple wiring and module replacement.

Application Scenarios

• Industrial Automation: Widely used in factory automation systems for monitoring and controlling various processes.
• Process Control: Integral to DCS systems for precise measurement and regulation of process variables such as temperature, pressure, and flow.
• Energy Management: Monitors electrical parameters in power generation and distribution systems.
• Machine Monitoring: Collects data on machine performance indicators like vibration, speed, and temperature.
• Water Treatment: Measures water quality parameters and controls pumping systems in water treatment plants.
• Oil and Gas: Monitors reactor temperatures and pipeline pressures in refineries and petrochemical plants.
• Chemical Processing: Ensures process safety by controlling reaction temperatures and monitoring chemical concentrations.
