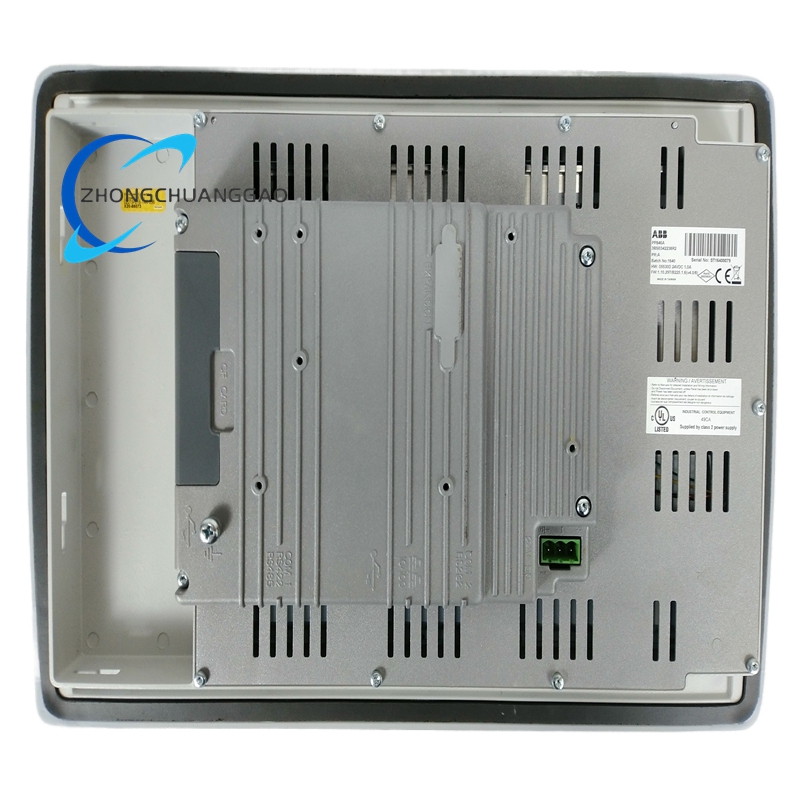

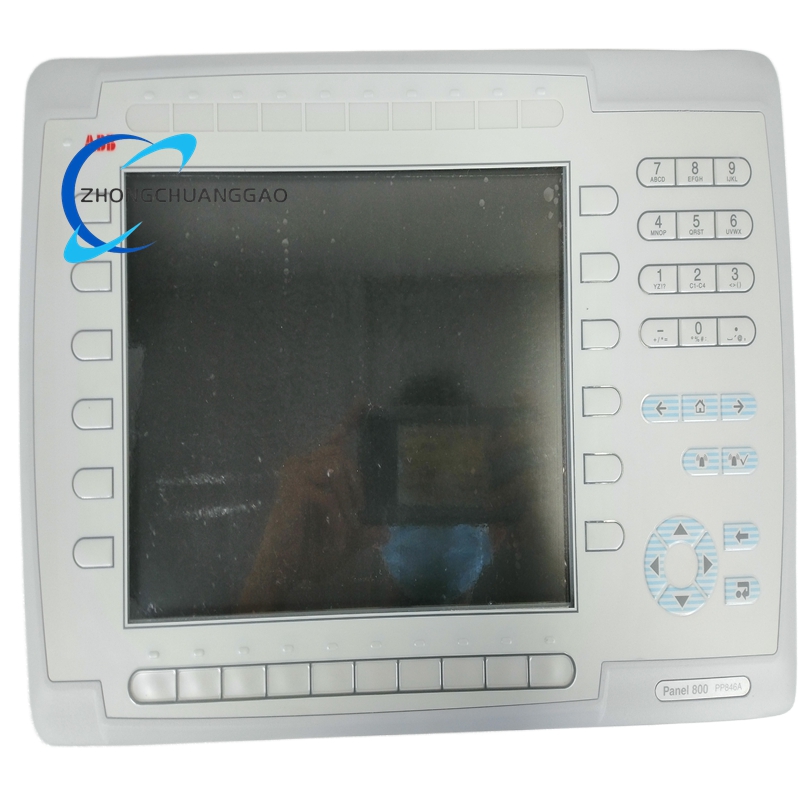

ABB 800PP846A Industrial Touch Panel

• Resolution: 800 x 600 pixels (SVGA)
• Touch Technology: Resistive analog touch screen with 4-wire technology
• Backlight: LED edge array with a lifespan of 50,000 hours (half brightness)
• System Memory: 512 MB DDR3 RAM
• Storage: 2 GB onboard flash memory
• Processor: ARM-based industrial CPU
• Power Supply: 24 V DC (18 to 30 V DC), typical power consumption of 15 W
• Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
• Storage Temperature: -40 °C to +85 °C
• Front Panel Protection: IP65 (NEMA 4X when panel-mounted)
• Rear Panel Protection: IP20
• Dimensions (W x H x D): 275 mm x 215 mm x 52 mm
• Weight: 2.0 kg (4.4 lbs)
• Communication Interfaces:
  • 2 x 10/100 Ethernet (RJ45)
  • 1 x isolated RS-485 port
  • USB-A service port
• Certifications: CE, UL 508, cULus, RCM, RoHS

Functional Characteristics

• High Reliability: Built with robust components to ensure stable operation in harsh industrial environments.
• Fast Startup: The panel is ready for use in less than 8 seconds after power-on, minimizing downtime.
• Resistive Touch Screen: Compatible with gloved operation, including nitrile gloves, ensuring ease of use in various industrial settings.
• High Contrast Display: Even when operators wear polarized safety glasses, the display maintains high contrast and readability.
• Solid-State Storage: Internal solid-state disk stores application images and up to 30 days of cyclic trend data, enabling local historical analysis even during network failures.
• Wide Temperature Range: Operates reliably in environments ranging from -20 °C to +60 °C, making it suitable for diverse industrial applications.
• Easy Integration: Seamlessly integrates with ABB’s Control Builder F or 800xA engineering environments, reducing commissioning time through automatic download of tag databases, alarm categories, and panels.
• Modular Design: Hardware slots directly into 7.5 mm DIN rail cutouts, powered by the same 24 V DC supply as adjacent I/O racks, eliminating the need for additional transformers.

Application Scenarios

• Process Industries: Widely used in chemical, petrochemical, and refining industries for monitoring and controlling critical process parameters such as temperature, pressure, and flow.
• Power Generation: Essential for power plants, including fossil-fueled and renewable energy facilities, for real-time monitoring of generator performance and grid stability.
• Oil & Gas: Deployed in upstream, midstream, and downstream operations for remote monitoring and control of pipelines, wells, and processing units.
• Water Treatment: Utilized in municipal and industrial water treatment plants for monitoring water quality, flow rates, and chemical dosing.
• Food & Beverage: Suitable for hygienic environments in food processing plants, where the panel’s IP65 front panel protects against high-pressure water jets and corrosive cleaning agents.
