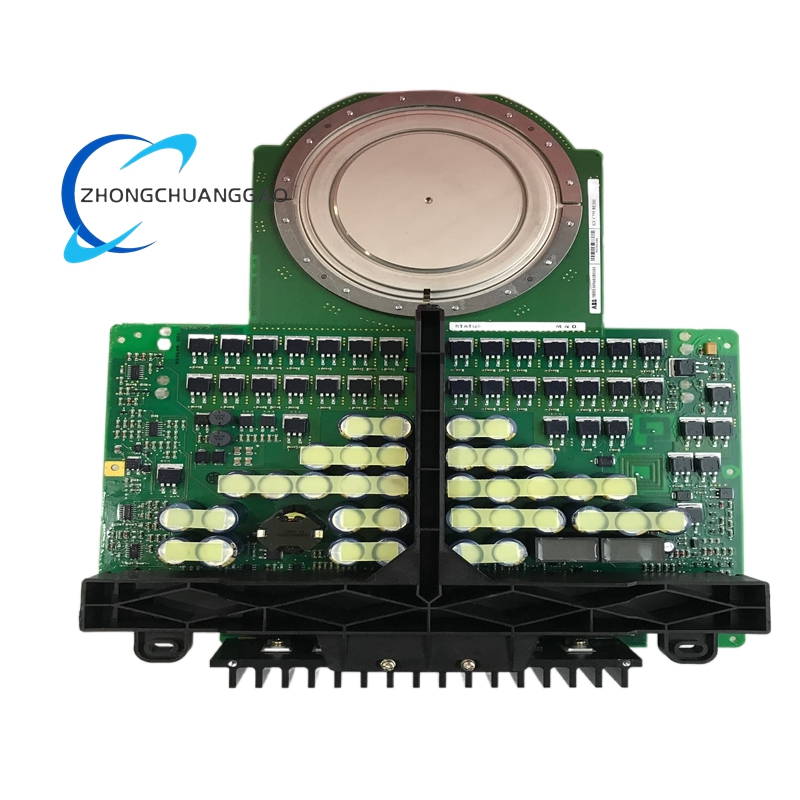

ABB 5SHY4045L0001 3BHB018162R0001 Integrated Gate-Commutated Thyristor (IGCT) Module

• Current Rating: Up to 4000 A
• Switching Frequency: High-frequency operation, supporting rapid switching cycles
• Conduction Loss: Low voltage drop during conduction, enhancing energy efficiency
• Operating Temperature Range: -40°C to 85°C, ensuring reliable performance in extreme environments
• Thermal Resistance: Optimized for efficient heat dissipation, supporting continuous high-load operation
• Protection Class: IP20, suitable for industrial environments with moderate dust and moisture levels
• Cooling Method: Supports forced air cooling or liquid cooling for enhanced thermal management

Functional Characteristics

• High Power Handling: Capable of managing thousands of amperes and kilovolts, making it ideal for demanding industrial applications.
• Fast Switching Performance: Enables high-speed switching, improving system dynamic response and reducing energy losses.
• High Reliability: Built with robust materials and advanced manufacturing processes to ensure long-term stability and minimal downtime.
• Low Conduction Loss: Minimizes power dissipation during operation, enhancing overall system efficiency and reducing cooling requirements.
• Compact Design: Modular architecture allows for easy integration into existing systems, saving space and simplifying installation.
• Integrated Protection: Features overcurrent and short-circuit protection to safeguard against operational faults and extend component lifespan.

Application Scenarios

• Industrial Motor Drives: Powers high-torque, low-speed motors in sectors such as cement, mining, and metals processing.
• Renewable Energy Systems: Converts DC power from solar arrays or wind turbines into AC grid-compatible electricity in inverters.
• High-Voltage DC Transmission (HVDC): Facilitates efficient long-distance power transmission with minimal losses.
• Energy Storage Systems: Manages bidirectional power flow in battery energy storage systems (BESS) for grid stabilization and load shifting.
• Electric Vehicles: Supports traction inverters in electric buses and heavy-duty vehicles, enabling high-efficiency propulsion.
• Industrial Heating: Controls resistive heating elements in induction furnaces and thermal processing equipment for precise temperature management.

Additional Features

• Wide Compatibility: Works seamlessly with ABB’s IRC5 and IRC5P robotic controllers, as well as third-party systems using standard industrial communication protocols.
• Global Support: Backed by ABB’s extensive service network, providing technical assistance, spare parts availability, and maintenance services worldwide.
• Customization Options: Available with optional temperature sensors (e.g., PT100) for real-time junction temperature monitoring and enhanced operational control.
• Long Service Life: Designed for extended operation in harsh industrial environments with minimal maintenance requirements.
