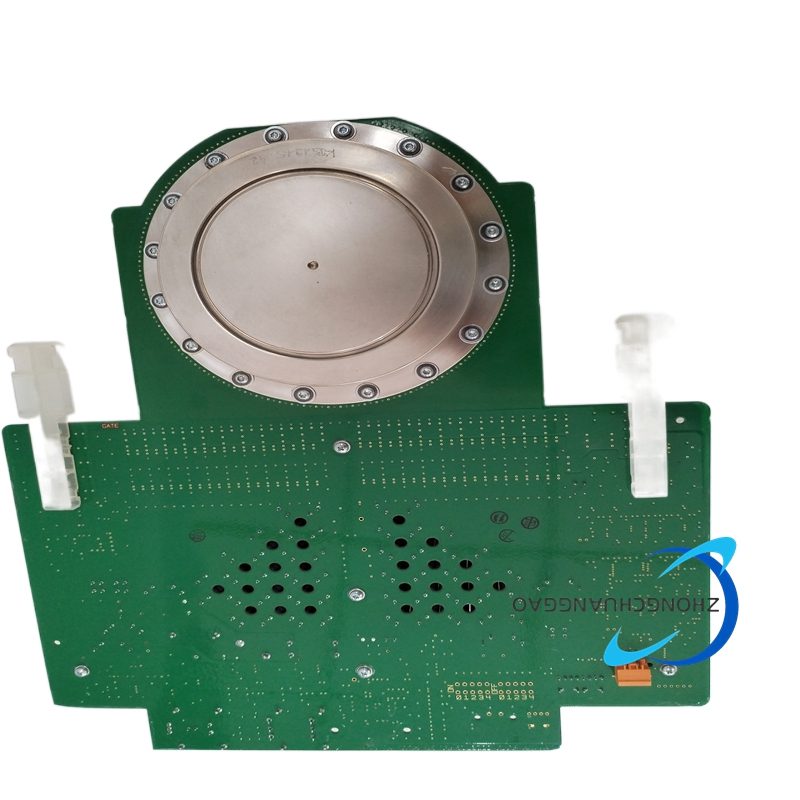

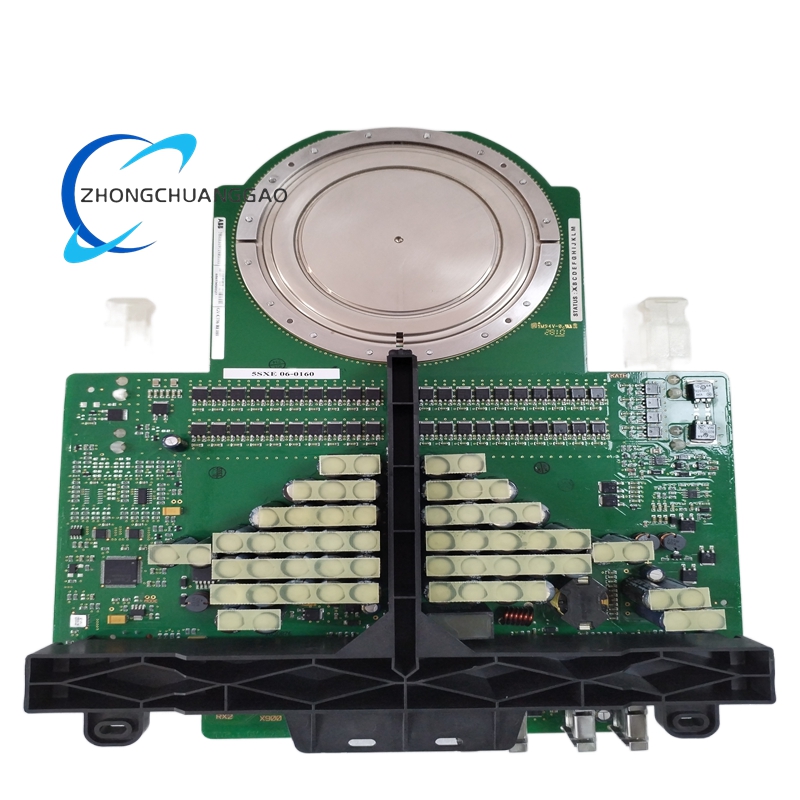

ABB 5SHY3545L0016 Integrated Gate-Commutated Thyristor (IGCT) Module

Technical Specifications

• Rated Voltage: Typically around 6000V DC (varies based on specific design and application requirements)
• Rated Current: High current-carrying capacity, suitable for controlling high-power circuits and equipment (exact value varies based on model and application)
• Switching Frequency: Up to several tens of kHz, allowing for fast and precise control of power flow
• Conduction Voltage Drop: Low, ensuring minimal power dissipation during operation and enhancing overall energy efficiency
• Control Method: Pulse triggering, compatible with optical triggering for enhanced reliability and control precision
• Cooling Method: Supports both forced air cooling and water cooling systems, depending on application requirements
• Operating Temperature Range: Typically from -40°C to 85°C (or higher, based on specific design and cooling method)
• Protection Class: IP65 or higher, providing effective protection against dust and water ingress
• Dimensions and Weight: Vary based on specific design, but typically designed for compact integration into industrial systems

Functional Characteristics

• High Power Handling: Designed to handle high voltage and current levels, enabling efficient power conversion in large-scale industrial applications.
• Fast Switching Speed: The high switching frequency allows for precise control of power flow, reducing energy losses and improving system efficiency.
• Low Conduction Losses: The low conduction voltage drop ensures minimal power dissipation during operation, enhancing overall energy efficiency.
• Robust Design: Built to withstand harsh industrial environments, including temperature extremes, humidity, dust, and vibrations.
• Advanced Protection Features: Includes overcurrent, overvoltage, and overheating protection mechanisms to safeguard the module and connected equipment from damage.
• Flexible Cooling Options: Supports both forced air cooling and water cooling systems, allowing for optimal thermal management based on application requirements.
• Easy Integration: Designed for seamless integration into ABB’s range of industrial controllers, DCS systems, and power electronics converters.

Application Scenarios

• Renewable Energy Systems: Utilized in wind turbine converters and solar photovoltaic inverters for efficient power conversion and grid integration.
• Railway Traction Systems: Applied in traction converters for electric trains and trams, providing reliable power control and energy regeneration capabilities.
• Industrial High-Power Drives: Used in motor control systems for large industrial machinery, such as rolling mills, compressors, and pumps, ensuring precise speed and torque control.
• High-Voltage DC Transmission (HVDC): Employed in HVDC systems for long-distance power transmission with minimal losses, enhancing grid stability and efficiency.
• Power Electronics Converters: Integrated into various power electronic converters, including static var compensators (SVCs) and energy storage systems, for improving power quality and system reliability.
• Manufacturing Processes: Applied in manufacturing processes that require precise control of electrical components, such as metal processing, automotive manufacturing, and electronics assembly.
