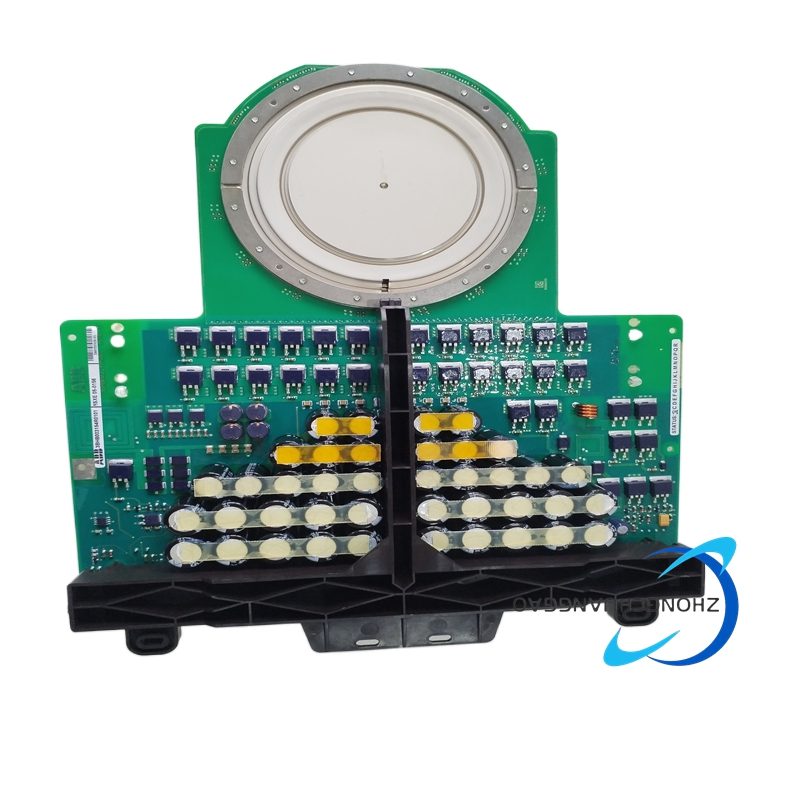

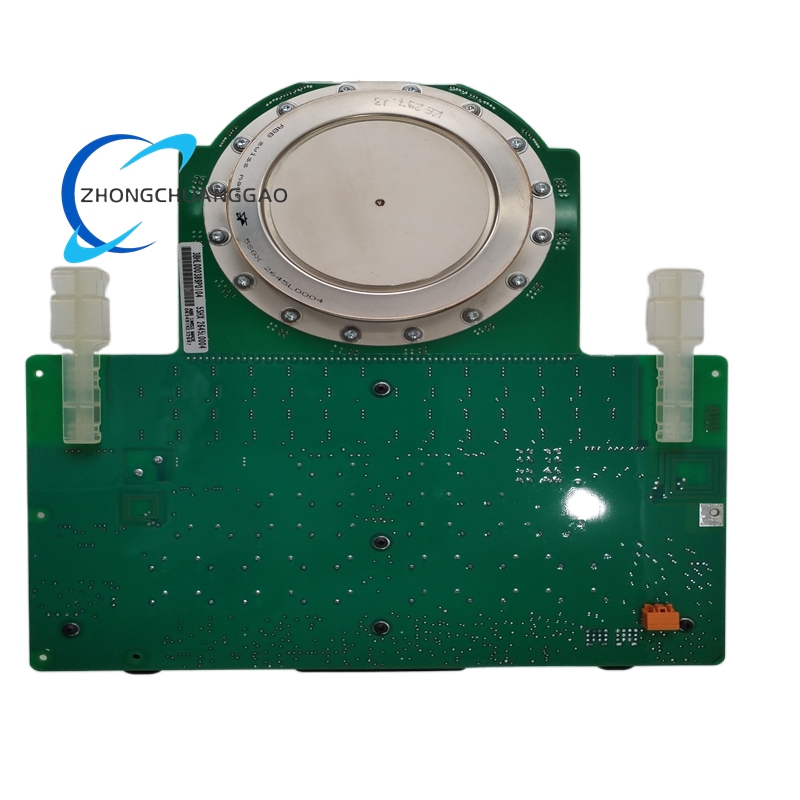

ABB 5SHY2645L0004 Integrated Gate-Commutated Thyristor (IGCT) Module

• Voltage Rating: Up to several kilovolts (specific rating depends on the application and configuration)
• Current Rating: High current handling capability, typically in the range of several thousand amperes
• Switching Speed: Fast switching speed, suitable for high-frequency applications
• Conduction Losses: Low, ensuring high efficiency
• Gate Drive: Integrated gate drive circuit for precise control
• Cooling Method: Typically liquid-cooled (e.g., deionized water cooling) to handle high power dissipation
• Protection Features: Overcurrent, overvoltage, and overtemperature protection
• Efficiency: Greater than 98% in typical applications
• Switching Frequency: Up to 2kHz or higher, depending on the specific application

Functional Characteristics

• High Power Handling: Designed to handle high voltage and current levels, making it suitable for demanding industrial applications.
• Fast Switching: Enables high-frequency operation, reducing switching losses and improving system efficiency.
• Low Conduction Losses: Minimizes power loss during conduction, enhancing overall energy efficiency.
• Integrated Gate Drive: Simplifies control and reduces external component requirements.
• Robust Protection: Incorporates multiple protection mechanisms to safeguard against electrical faults and operational risks.
• High Reliability: Built with high-quality materials and advanced manufacturing processes to ensure long-term stability and durability.
• Self-commutating: Features a 6-pulse, 3-level voltage source inverter with good harmonic performance.

Application Scenarios

• Motor Drives: Used to drive various types of motors, including AC induction motors, DC motors, and stepper motors, in industries such as oil and gas, chemicals, and metallurgy.
• Renewable Energy Generation: Converts renewable energy sources such as wind and solar into electricity, facilitating grid integration and power quality management.
• Power Transmission and Distribution: Transmits electricity from power plants to users, ensuring efficient and reliable power delivery.
• Metallurgy and Mining: Utilized in electrolysis, smelting, and rolling applications within the metallurgy and mining industries.
• Chemical and Petrochemical: Employed in electrolysis, synthesis, and cracking processes in the chemical and petrochemical industries.
• Industrial Automation: Enhances the performance of industrial automation systems by providing precise power control and regulation.
• Rail Transportation: Supports the power needs of electric trains and trams, ensuring efficient and safe operation.
• Ships and Aerospace: Used in marine and aerospace applications where high-power and reliable power electronics are essential.
