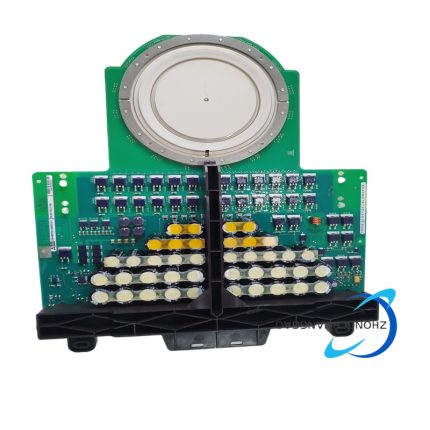

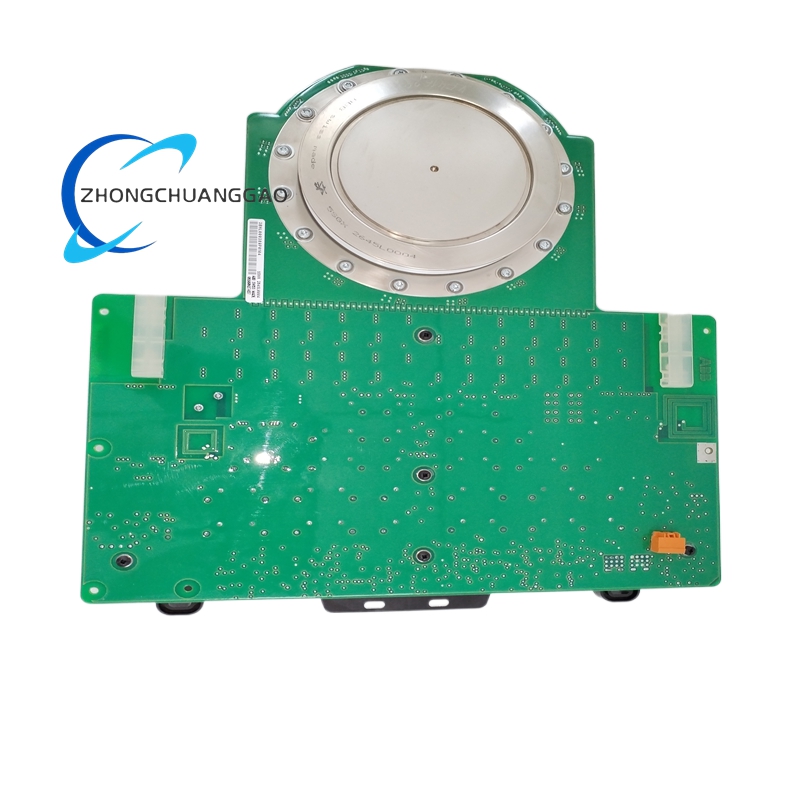

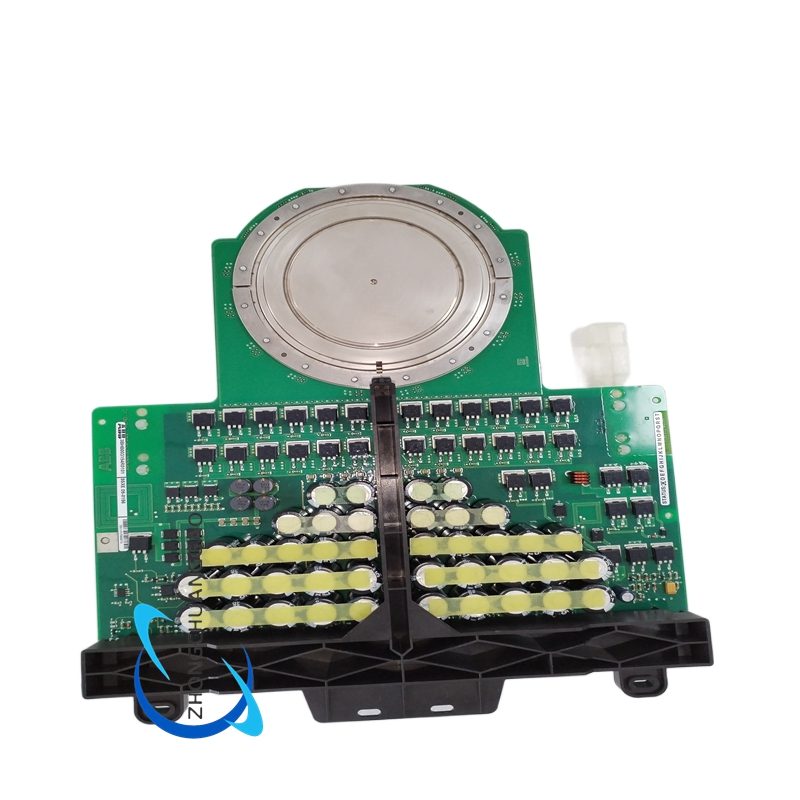

ABB 5SHX2646L0004 Integrated Gate-Commutated Thyristor (IGCT) Module

• Voltage Rating: Up to several kilovolts (specific rating depends on the application and configuration)
• Current Rating: High current handling capability, typically in the range of several thousand amperes
• Switching Speed: Fast switching speed, suitable for high-frequency applications
• Conduction Losses: Low, ensuring high efficiency
• Gate Drive: Integrated gate drive circuit for precise control
• Cooling Method: Typically liquid-cooled (e.g., deionized water cooling) to handle high power dissipation
• Protection Features: Overcurrent, overvoltage, and overtemperature protection
• Certifications: Complies with relevant industry standards such as IEC 60700, IEEE 1158, and ABB internal HVDC specifications

Functional Characteristics

• High Power Handling: Designed to handle high voltage and current levels, making it suitable for demanding industrial applications.
• Fast Switching: Enables high-frequency operation, reducing switching losses and improving system efficiency.
• Low Conduction Losses: Minimizes power loss during conduction, enhancing overall energy efficiency.
• Integrated Gate Drive: Simplifies control and reduces external component requirements.
• Robust Protection: Incorporates multiple protection mechanisms to safeguard against electrical faults and operational risks.
• High Reliability: Built with high-quality materials and advanced manufacturing processes to ensure long-term stability and durability.

Application Scenarios

• High-Voltage Direct Current (HVDC) Transmission: Used in HVDC systems for efficient power transmission over long distances, such as cross-sea cable projects and asynchronous grid interconnections.
• Industrial Drives: Employed in large-scale variable-frequency drives (VFDs) for motors in industries such as oil and gas, chemicals, and metallurgy.
• Renewable Energy: Utilized in solar and wind power conversion systems for grid integration and power quality management.
• Electric Arc Furnaces: Controls power supply in electric arc furnaces for steel production and other metal smelting processes.
• Dynamic Reactive Power Compensation: Used in urban load centers for dynamic reactive power compensation to improve grid stability.
