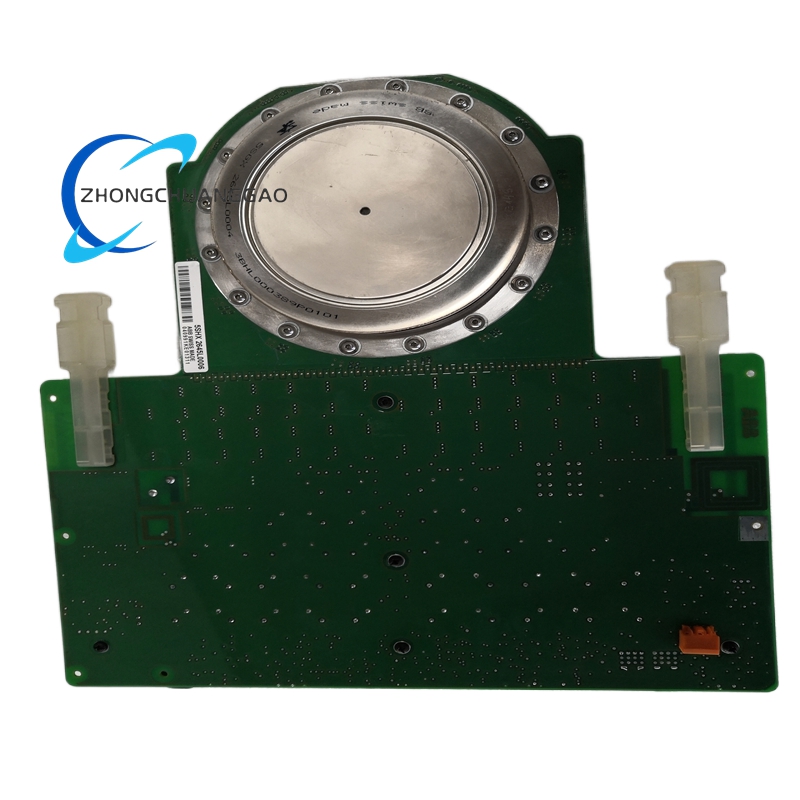

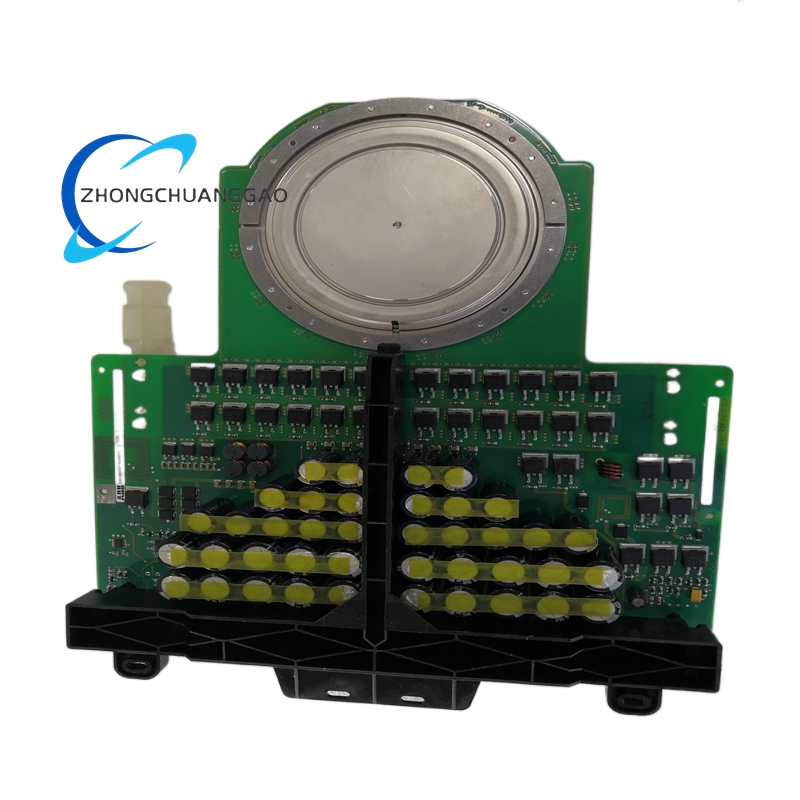

ABB 5SHX2645L0006 Integrated Gate-Commutated Thyristor (IGCT) Module

Technical Specifications

• Type: IGCT (Integrated Gate-Commutated Thyristor)
• Voltage Rating: Up to 4.5 kV (dependent on configuration)
• Current Rating: Up to 3 kA (dependent on configuration)
• Switching Frequency: Low to medium (optimized for high-power applications)
• Gate Drive Requirements: Requires precise gate control for commutation
• Cooling: Liquid-cooled design for efficient heat dissipation
• Package: Press-pack construction for high reliability under harsh conditions
• Certifications: Complies with IEC, UL, and RoHS standards

Functional Characteristics

• High Power Handling: Capable of managing thousands of amperes and kilovolts, making it suitable for demanding industrial applications.
• Efficient Switching: Low conduction and switching losses improve system efficiency and reduce thermal stress.
• Robust Design: Press-pack construction ensures high reliability and resistance to vibration and shock.
• Integrated Protection: Includes features to protect against overvoltage, overcurrent, and thermal overload.
• Easy Integration: Designed for seamless integration into existing power electronics systems.

Application Scenarios

• Motor Drives: Used in high-power motor drives for industries such as cement, mining, and metals processing.
• HVDC Transmission: Essential component in high-voltage direct current transmission systems for long-distance power transfer.
• Renewable Energy: Integral to wind turbines and solar inverters for efficient energy conversion and grid connection.
• Industrial Power Supplies: Provides stable power for large-scale industrial processes and equipment.
• Energy Storage: Supports energy storage systems by enabling efficient charging and discharging cycles.

Compatibility

• Works seamlessly with ABB’s power electronics controllers and converters.
• Compatible with third-party systems that support standard IGCT interfaces and protocols.

Additional Features

• Long Service Life: Designed for extended operation in demanding environments with minimal maintenance.
• Global Support: Backed by ABB’s global service network for technical assistance and spare parts availability.
• Customizable Solutions: Can be tailored to specific application requirements through ABB’s engineering services.
