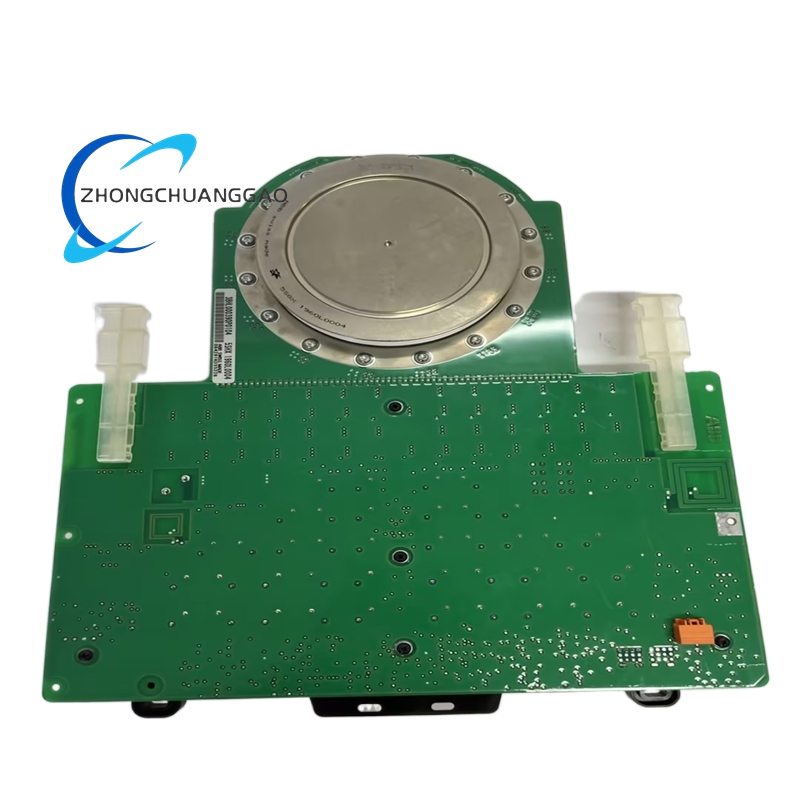

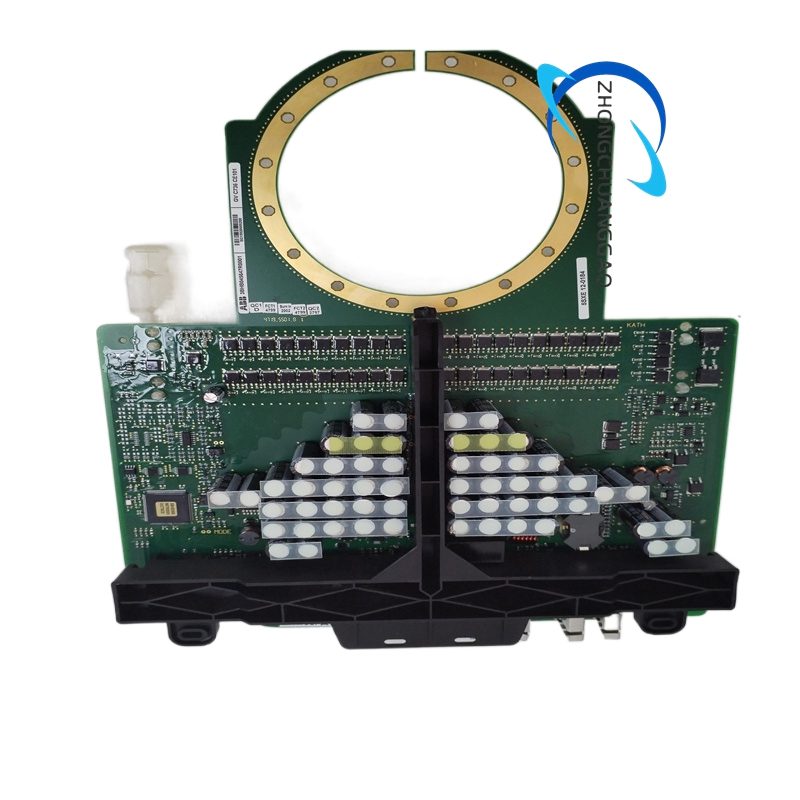

ABB 5SHX1960L0004 Integrated Gate-Commutated Thyristor (IGCT) Module

• Switching Frequency: Up to 10kHz
• Conduction Voltage Drop: Typical 2.8V, Maximum 3.2V
• Control Method: Pulse triggering (compatible with optical triggering)
• Cooling Method: Forced air cooling (compatible with water cooling systems)
• Operating Temperature Range: -40°C to 85°C
• Storage Temperature Range: -55°C to 100°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP65
• Dimensions: 335mm × 250mm × 120mm (length × width × height)
• Weight: 15kg
• Certifications: CE, UL, IEC 60747, IEC 61800, ISO 9001

Functional Characteristics

• High Power Handling: Designed to handle high voltage and current levels, enabling efficient power conversion in large-scale industrial applications.
• Fast Switching Speed: The 10kHz switching frequency allows for precise control of power flow, reducing energy losses and improving system efficiency.
• Low Conduction Losses: The typical conduction voltage drop of 2.8V ensures minimal power dissipation during operation, enhancing overall energy efficiency.
• Robust Design: Built to withstand harsh industrial environments, including temperature extremes, humidity, dust, and vibrations.
• Advanced Protection Features: Includes overcurrent, overvoltage, and overheating protection mechanisms to safeguard the module and connected equipment from damage.
• Flexible Cooling Options: Supports both forced air cooling and water cooling systems, allowing for optimal thermal management based on application requirements.
• Easy Integration: Designed for seamless integration into ABB ACS series frequency converters, industrial DCS/SCADA systems, and high-power drive platforms.

Application Scenarios

• Renewable Energy Systems: Utilized in wind turbine converters and solar photovoltaic inverters for efficient power conversion and grid integration.
• Railway Traction Systems: Applied in traction converters for electric trains and trams, providing reliable power control and energy regeneration capabilities.
• Industrial High-Power Drives: Used in motor control systems for large industrial machinery, such as rolling mills, compressors, and pumps, ensuring precise speed and torque control.
• High-Voltage DC Transmission (HVDC): Employed in HVDC systems for long-distance power transmission with minimal losses, enhancing grid stability and efficiency.
• Power Electronics Converters: Integrated into various power electronic converters, including static var compensators (SVCs) and energy storage systems, for improving power quality and system reliability.
• Electric Vehicle Charging Infrastructure: Utilized in high-power charging stations for electric vehicles, enabling fast and efficient battery charging.
