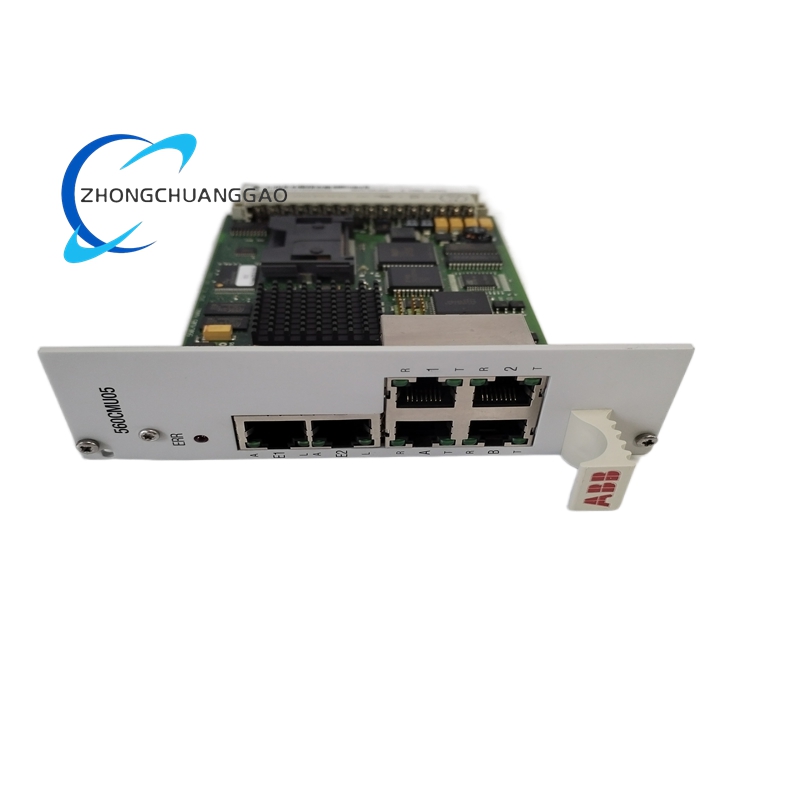

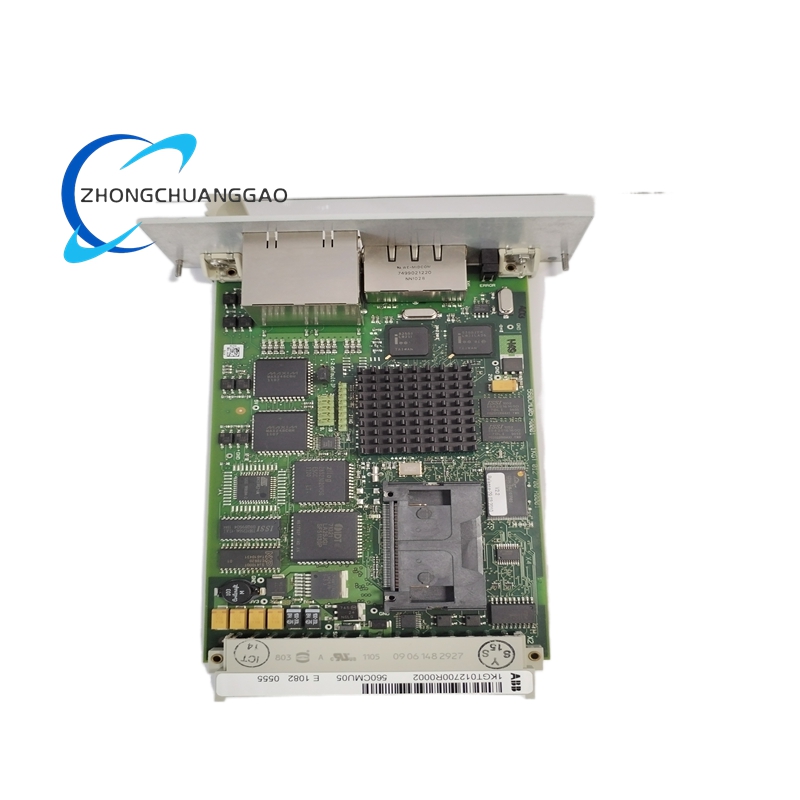

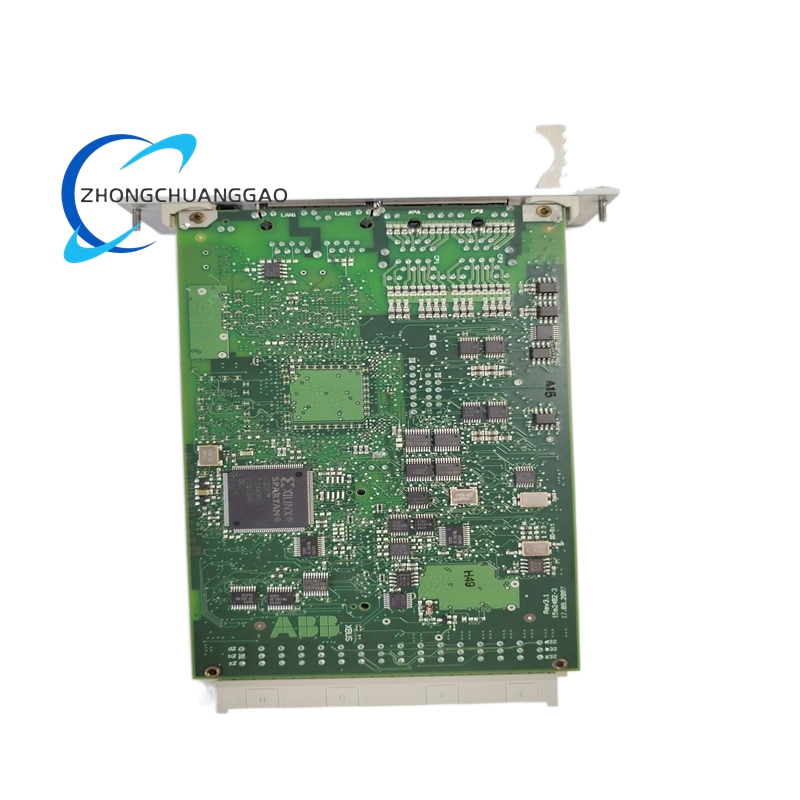

ABB 560CMU05 Central Communication Module

• Communication Interfaces:
  • 4 serial communication ports (RS-232 or RS-485)
  • 2 Ethernet ports
• Power Supply: 24VDC wide voltage range
• Rated Power Consumption: ≤10W
• Physical Dimensions: Approximately 140mm (length) x 203mm (width) x 58mm (height)
• Weight: Around 0.21kg to 0.29kg (depending on the specific model)
• Certifications: IEC 60870-5-101/104, CE, EMC

Functional Characteristics

• High Reliability: The module is built with industrial-grade components, ensuring stable performance in harsh environments, including high temperatures, vibrations, and electromagnetic interference.
• Versatile Communication: Supports multiple communication protocols such as Modbus and Profibus, facilitating seamless integration with various devices and systems.
• Modular Design: Allows for flexible configuration and easy expansion of functionality based on specific application requirements.
• Remote Monitoring and Management: Enables remote monitoring and management of devices, allowing users to view equipment status, configure parameters, and monitor data flow in real-time.
• Data Encryption and Security: Supports data encryption and authentication measures to ensure secure data transmission and storage.
• Flash Memory Data Protection: Features Flash Memory for drop-out data protection, eliminating the need for battery backup and preventing data loss during power outages.

Application Scenarios

• Power Industry: Used in power generation, transmission, and distribution systems for remote monitoring and control of electrical parameters.
• Oil and Gas Industry: Applied in offshore platforms, pipelines, and oil production facilities for precise control and monitoring of various processes.
• Chemical Industry: Utilized in chemical processing plants for monitoring and controlling equipment, enhancing safety and productivity.
• Water Treatment Industry: Employed in water treatment plants for controlling pumps, valves, and other equipment, ensuring efficient and reliable water treatment processes.
• Metallurgy and Mining: Used in metallurgical and mining operations for monitoring and controlling equipment, improving operational efficiency.
• Industrial Automation: Integral to industrial automation systems, facilitating communication and control in manufacturing processes, assembly lines, and other complex systems.
• Remote Data Acquisition: Suitable for remote data acquisition applications, enabling the collection and transmission of data from various sensors and devices to a central control system.
