ABB 3HAC031683-001 Industrial Robot Servo Drive Module

Technical Specifications

• As a Servo Drive Module:
  • Compatible with ABB IRC5 and OmniCore robot control systems.
  • Supports multi-axis integration, capable of driving one or more robot axes depending on system configuration.
  • Output power rating suitable for medium-load applications.
  • Typical output current range covers common servo motor requirements.
  • Advanced digital vector control algorithm and high-bandwidth current loop for superior dynamic response and torque control precision.
  • High-resolution encoder interface supporting EnDat, SSI, Resolver, etc.
  • Compliance with international safety and electromagnetic compatibility standards such as CE, UL, cUL, and EAC.

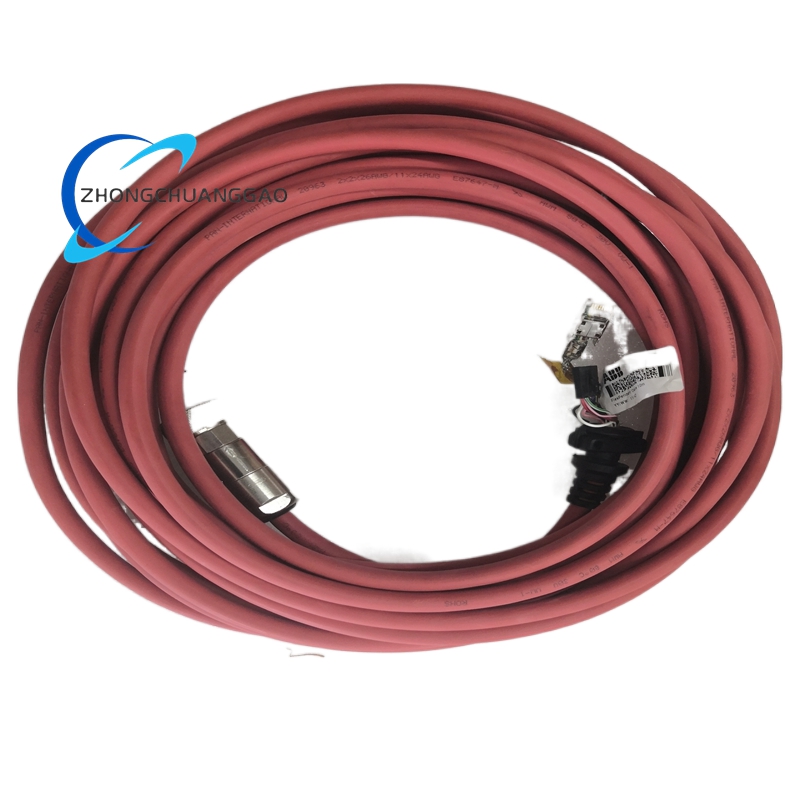

• As a Teach Pendant Cable:
  • Standard length of 10 meters, with custom lengths available upon request.
  • 17-pin dedicated connector on the teach pendant end and DSQC 679 dedicated interface on the control cabinet end.
  • Designed for integrated functions including power supply, communication, emergency stop, and enable signals.
  • High-quality materials and shielding to ensure signal integrity and minimize electromagnetic interference.

Functional Characteristics

• As a Servo Drive Module:
  • Enables precise motion control, high-speed operation, and stable running of industrial robots.
  • Supports ABB’s TrueMove™ and QuickMove™ motion optimization technologies for enhanced path accuracy and cycle efficiency.
  • Comprehensive protection mechanisms including overcurrent, overvoltage, undervoltage, overheating, short circuit, ground fault, and motor overspeed protection.
  • Hot-swappable functionality (system-dependent) to minimize production line downtime.
  • Front panel status indicator LEDs for real-time monitoring of power, operation, communication, and fault status.
  • Seamless integration with ABB’s robot control system for parameter configuration, firmware upgrades, fault log reading, and performance monitoring via RobotStudio programming software or the teach pendant.
• As a Teach Pendant Cable:
  • Robust and durable construction to withstand the rigors of industrial environments.
  • Easy installation and maintenance, with plug-and-play functionality.
  • Reliable communication and power transmission to ensure uninterrupted operation of the teach pendant.

Application Scenarios

• As a Servo Drive Module:
  • Widely used in various ABB industrial robots such as IRB 120, IRB 140, IRB 1520, etc.
  • Essential for applications requiring high-precision motion control, such as assembly, welding, material handling, and painting in automotive, electronics, metal fabrication, and other industries.
• As a Teach Pendant Cable:
  • Suitable for most workshop robot workstations where the distance between the teach pendant and the control cabinet is within 5-10 meters, such as in 3C electronics and automotive component assembly lines.
  • Also applicable in large workstations or robot installations located far from the control cabinet (10-30 meters), where longer cables (e.g., 3HAC031683-004) may be required.
