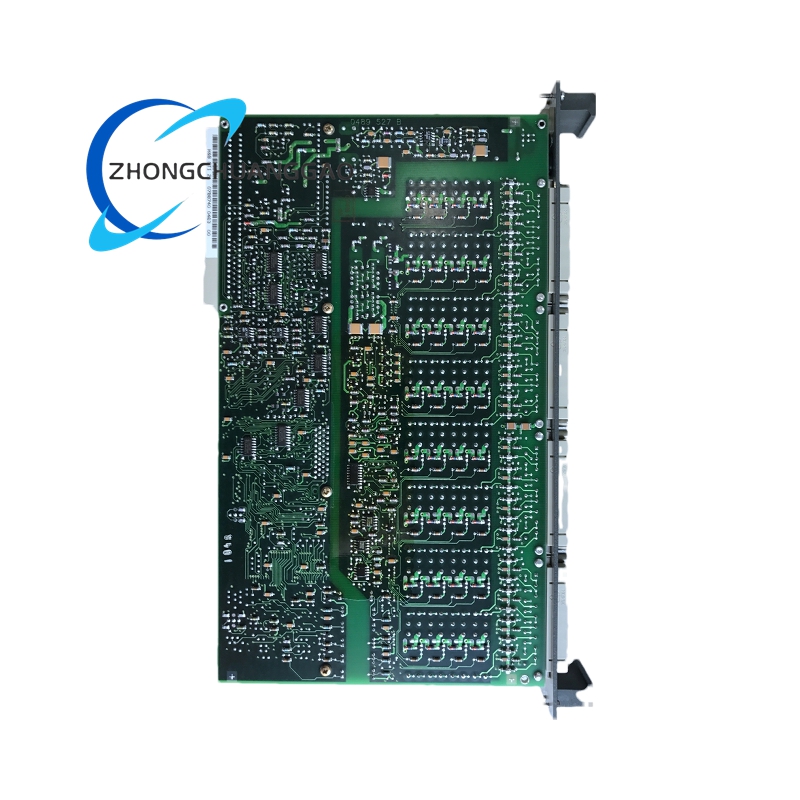

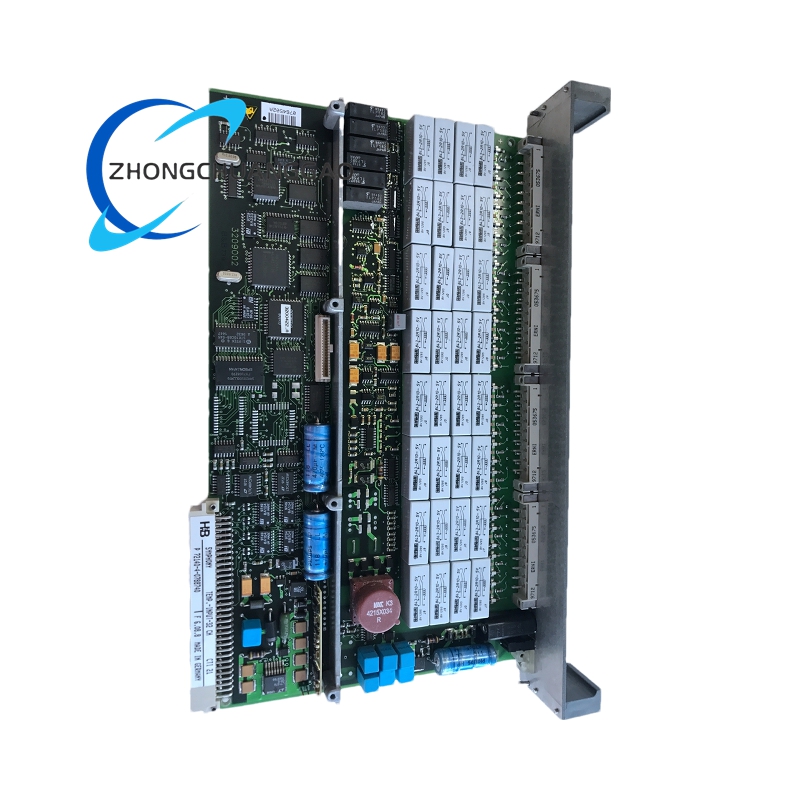

ABB 3BDH000741R1 Industrial Automation Controller Module

• Operating Temperature Range: -40°C to 85°C
• Storage Temperature Range: -40°C to 85°C
• Humidity Range: 5% to 95% (non-condensing)
• Protection Level: IP65; IP67 (alternative)
• Material: Aluminum alloy; metal alloy (alternative)
• Dimensions: 100mm x 80mm x 35mm; 100mm x 100mm x 50mm (alternative); 150mm x 90mm x 60mm (alternative)
• Weight: 0.5kg; 0.8kg (alternative); 2kg (alternative)
• Installation Method: Wall-mounted installation
• Overload Capacity: 150% for 1 minute, 180% for 2 seconds (when used as an inverter)
• Protection Function: Overcurrent, overvoltage, undervoltage, overheating, short circuit, etc. (when used as an inverter)

Functional Features

• High Reliability: Adopts industrial-grade design and high-quality materials to withstand harsh industrial environments and ensure long-term stable operation.
• High-Precision Measurement: Can accurately measure voltage signals and convert analog signals from sensors, ensuring the accuracy of the control system.
• Strong Anti-Interference Ability: Maintains signal stability and accuracy in complex industrial environments with strong electromagnetic interference.
• Modular Design: Facilitates installation and maintenance, and supports the connection of various sensors and actuators.
• Versatility: Supports multiple input types and signal ranges, is compatible with various models of ABB circuit breakers, and can be applied to temperature control, pressure control, flow control and other scenarios.
• Easy Maintenance: Supports remote diagnosis and maintenance. Users can configure and control it through the operation panel or network management tools.
• Efficient Data Processing: Equipped with a high-speed processor and sufficient memory, it can quickly process a large amount of collected data and control commands.

Application Scenarios

• Industrial Automation: Widely used in industries such as automobile manufacturing, electronic manufacturing, food processing, and chemical industry, for equipment control, data collection and process monitoring in the production process.
• Process Control: Used to control parameters such as temperature, pressure, and flow in the production process, ensuring the stability and quality of the production process. It is applicable to process control in the pharmaceutical industry and production process control in the food and beverage industry.
• Energy and Infrastructure: Suitable for power systems, wind power generation, hydropower generation, and grid management, used for monitoring and protection of power equipment.
• Transportation: Applied to traffic signal lights, railway systems and other transportation equipment, providing support for signal collection and control of transportation equipment.
• Building Automation: Used to collect environmental parameters such as temperature and humidity in buildings to provide a basis for building environmental control.
• Hazardous Areas: Can be used in hazardous areas such as oil and gas refineries, chemical plants, and grain processing facilities to achieve safe and reliable control and monitoring.
