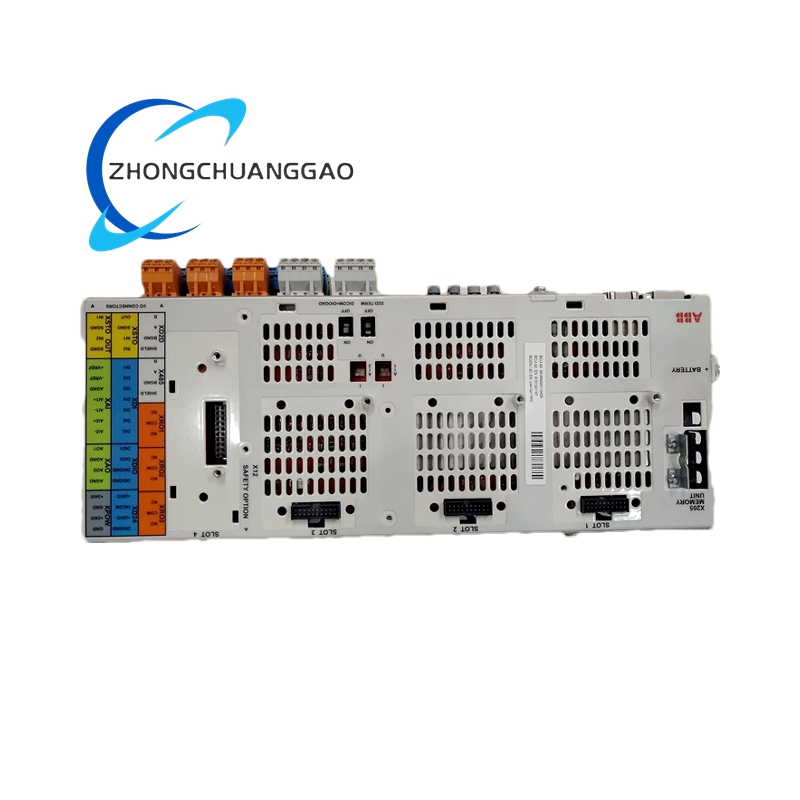

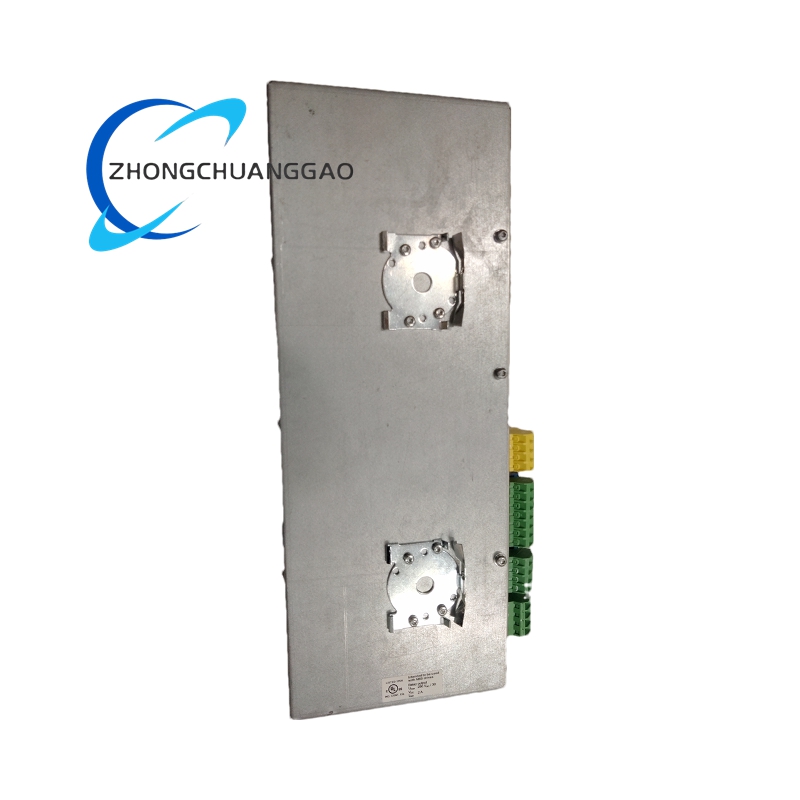

ABB 3AUA0000110429 BCU-02 Control Unit Module

Technical Specifications

  • Electrical Parameters
    • Operating voltage: AC 220V or DC 24V (different versions have different voltages).
    • Input signal: SSI signal.
    • Relay contact capacity: AC 220V/3A or DC 125V/3A.
    • Input current: Maximum 5mA or 0.5A.
    • Output frequency: 100Hz.
  • Performance Parameters
    • Processing speed: 550μs.
    • Program capacity: 300.
    • Data capacity: 200.
    • Maximum system I/O capacity: 192 channels.
  • Environmental and Protective Parameters
    • Operating temperature range: -20°C to 45°C (some versions are -20°C to 55°C).
    • Protection level: IP20.
  • Physical Parameters
    • Dimensions: 76mm×152mm×250mm.
    • Weight: 1kg (transport weight is 2kg).
  • Other Parameters
    • Processor: ARM Cortex A9 dual-core processor.
    • Memory: 1GB RAM and 4GB storage.
    • Communication interface: Supports Modbus protocol, Ethernet, serial port, RS-485, CAN bus, etc.
Category:
Description

Functional Features

  • High Performance
    • Adopts high-performance microprocessor and vector control technology to provide high-performance servo control.
    • It has strong processing capability, can process a large amount of data, and has a fast processing speed.
  • High Reliability
    • Adopts software and hardware watchdog technology and multiple filtering to ensure stable and reliable system operation.
    • It has safety, can protect industrial processes and machines from external interference and attacks, and is easy to maintain, enabling remote diagnosis and maintenance.
  • Strong Anti-Interference Ability
    • It is designed with industrial-grade four-level anti-electromagnetic interference capability, which can effectively prevent interference signals from interfering with the system and ensure the stable operation of the equipment.
  • Flexible and Convenient
    • Modular design, independent functional modules, easy configuration and maintenance.
    • Supports a variety of communication protocols and interfaces, which is convenient for integration with other equipment and flexible installation and deployment.
    • It can be programmed to control industrial processes and machines.

Application Scenarios

  • Industrial Automation
    • Used for production line control and machine control, such as control of manufacturing production lines and CNC machine tools.
  • Process Control
    • In chemical, metallurgical, petrochemical and other industries, it is used to control various parameters in the production process.
  • Power System
    • Used for the control of power generation, transmission and distribution processes, and the monitoring and management of the power system.
  • Building Automation
    • Used for the control of heating, ventilation, air conditioning and other systems in buildings.
  • Transportation
    • Used for traffic signal control and electric vehicle charging facilities.
  • Energy Management
    • Used to optimize energy utilization efficiency.
