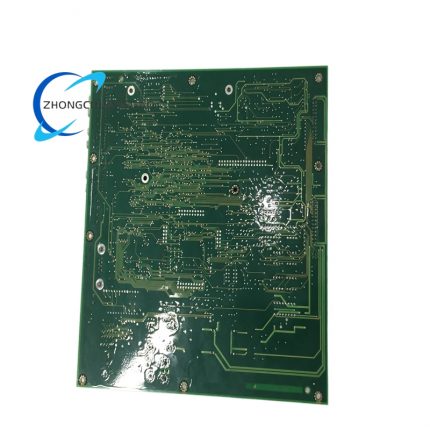

ABB 3ASC25H209 DATX110 Variable Frequency Drive (VFD) Control Module

Technical Specifications

• Model: 3ASC25H209 DATX110
• Rated Power: 2.5 kW
• Rated Voltage: 380 V AC
• Rated Current: 5.8 A
• Output Frequency: 0-400 Hz
• Speed Control Accuracy: ±0.5%
• Efficiency: >95%
• Protection Level: IP20
• Dimensions: 300 mm x 180 mm x 100 mm
• Weight: 6 kg
• Material: Aluminum alloy
• Series: ACS300 series (includes other models like 3ASC07H209, 3ASC15H209, and 3ASC40H209)

Functional Characteristics

• High Precision Control: Ensures accurate and stable motor operation through advanced speed control algorithms.
• High Efficiency: Reduces energy consumption and operating costs with an efficiency rating of over 95%.
• High Reliability: Built with industrial-grade components and features strong anti-interference capabilities for stable performance in harsh environments.
• Flexible Configuration: Supports modular expansion with optional analog input/output modules (4-20 mA) for customized applications.
• Real-Time Monitoring: Provides comprehensive monitoring of input/output status, current/voltage parameters, and device runtime for proactive maintenance.
• Fault Diagnosis: Includes built-in fault locator and logic control functions for rapid response to power system events.
• Communication Capabilities: Supports multiple communication protocols, including Modbus, IEC 61850, and others, for seamless integration into automation networks.

Application Scenarios

• Power Generation: Used in power plants for controlling boiler systems, turbine generators, and electrical distribution networks to ensure safe and efficient operation.
• Water Treatment: Integrates with water treatment facilities for automated control of pumps, valves, and chemical dosing systems, optimizing water quality and reducing operational costs.
• Manufacturing Industry: Applied in assembly lines, robotic systems, and CNC machines for precise control and synchronization of production processes, improving efficiency and product quality.
• Oil and Gas: Utilized in upstream and downstream operations for process control, safety monitoring, and equipment management, enhancing operational safety and productivity.
• Building Automation: Supports intelligent building management systems for automated control of HVAC, lighting, and security systems, improving energy efficiency and occupant comfort.
