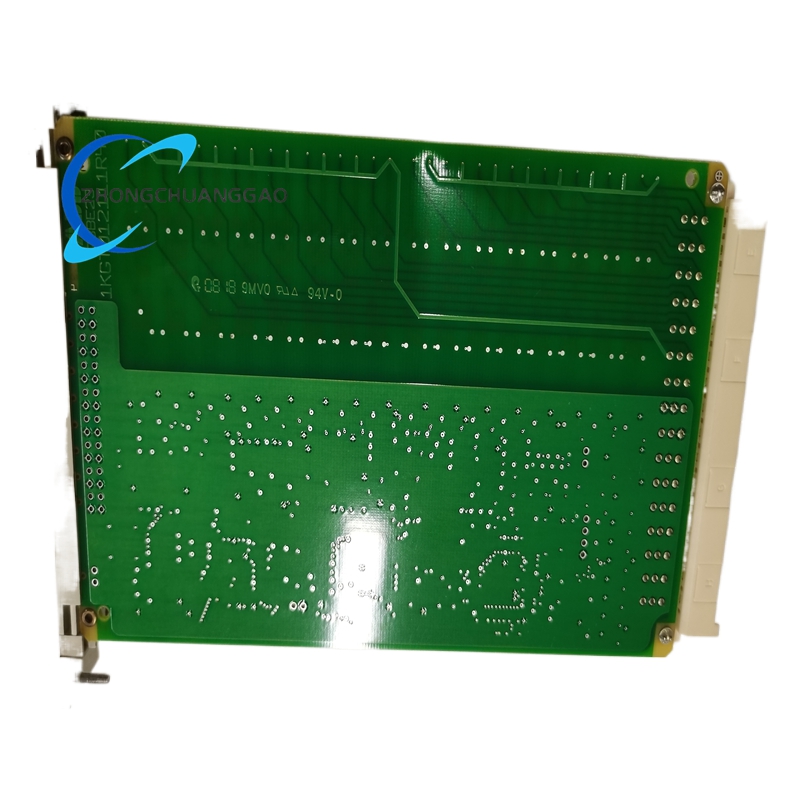

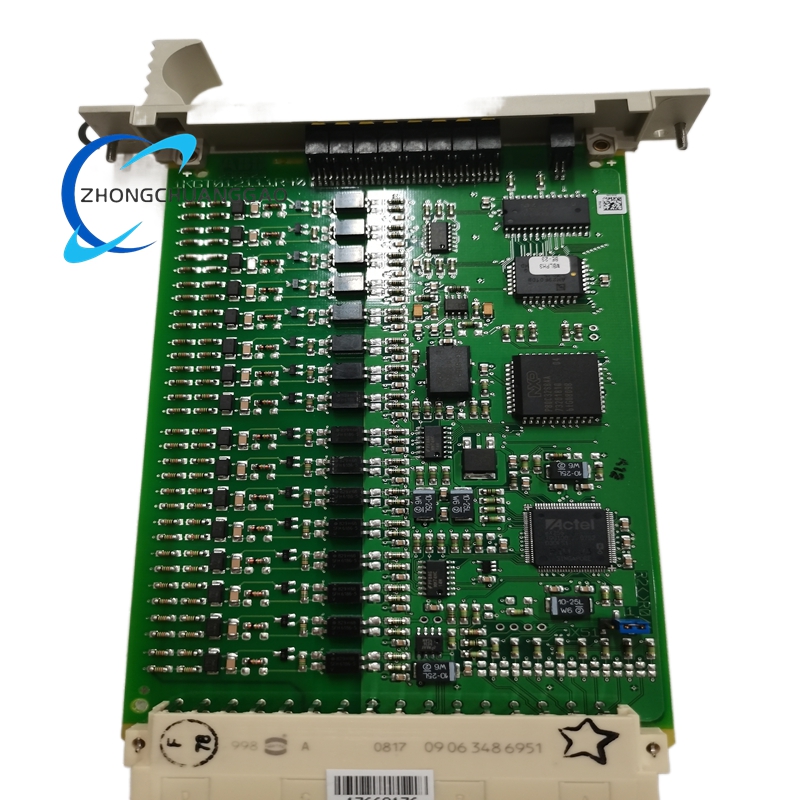

ABB 23BE23 Binary Input Module with 16 Channels and LED Indicators

Product Overview

The ABB 23BE23 is an industrial-grade binary input module designed to handle a variety of binary signals in automation systems. It provides a reliable interface for connecting and processing up to 16 binary process signals, ensuring efficient data acquisition and control in industrial environments.

Technical Specifications

  • Input Channels: Up to 16 binary process signals
Category:
Description
  • Signal Types:
    • 16 single-point information with timestamps (SPI)
    • 8 double-point information with timestamps (DPI)
    • 2 digital measurement values, each 8 bits (DMI8)
    • 1 digital measurement value, 16 bits (DM16)
    • 16 integrated totals (max 120Hz) (ITI)
    • 2-step position information, each 8 bits (STI)
    • 2 bit-string inputs, each 8 bits (BSI8)
  • Process Voltage: 24 to 60VDC
  • Input Isolation: Electrical isolation via optocouplers
  • LED Indicators: 16 LEDs for indicating the signal status of each input channel
  • Maximum Inverse Pulse Frequency: 120Hz
  • Power Supply: Provided through the RTL J560 backplane connector
  • Communication: Interactive communication with RTU/IO bus via RTU V0 bus communication unit

Functional Characteristics

  • Signal Processing:
    • Digital filtering to suppress contact bounce
    • Suppression of oscillating signals caused by the process
    • Validity checking and suppression of intermediate input states for double indications
    • Consistency checking for all channels assigned to digital measurements or step position information
    • Incremental pulse addition to form a 31-bit resolution register
    • Copying of integrated total values to freeze registers
  • Diagnostics:
    • Up to 50 event messages with timestamps
    • Common fault signals displayed by a red LED
    • Detection by the communication unit (CMU)
  • Configuration: The module allows for flexible configuration of input signals, enabling it to handle various combinations of binary signal types.

Application Scenarios

  • Industrial Automation: Widely used in industrial automation systems for monitoring and controlling binary signals from sensors, switches, and other devices.
  • Process Control: Applied in process control systems for accurate data acquisition and signal processing in manufacturing, chemical, and power generation industries.
  • Machine Control: Utilized in machine control systems for monitoring the status of machine components and ensuring safe and efficient operation.
  • Building Automation: Integrated into building automation systems for managing HVAC, lighting, and security systems through binary signal control.
