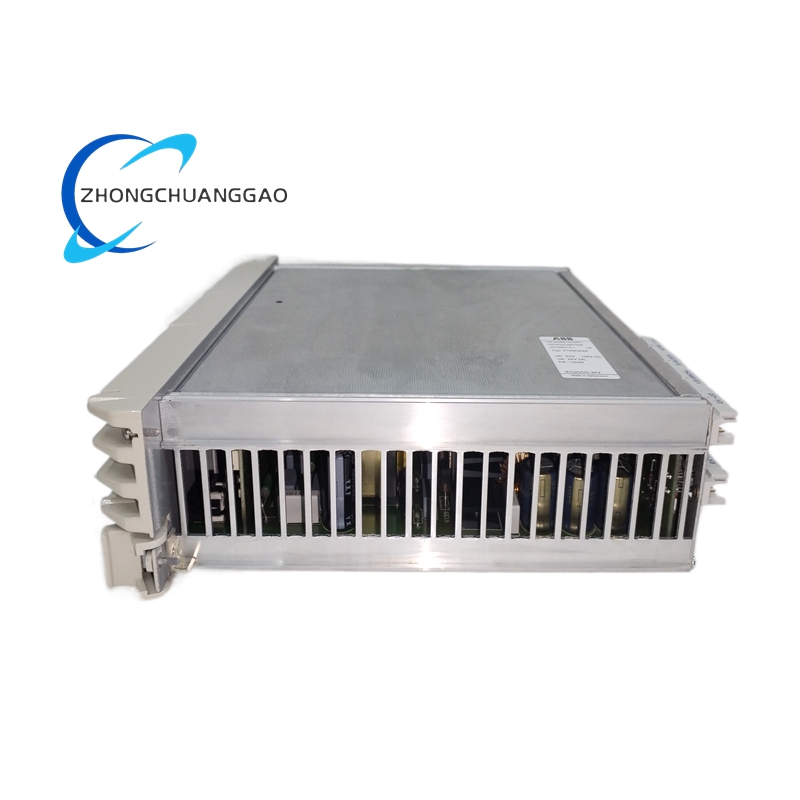

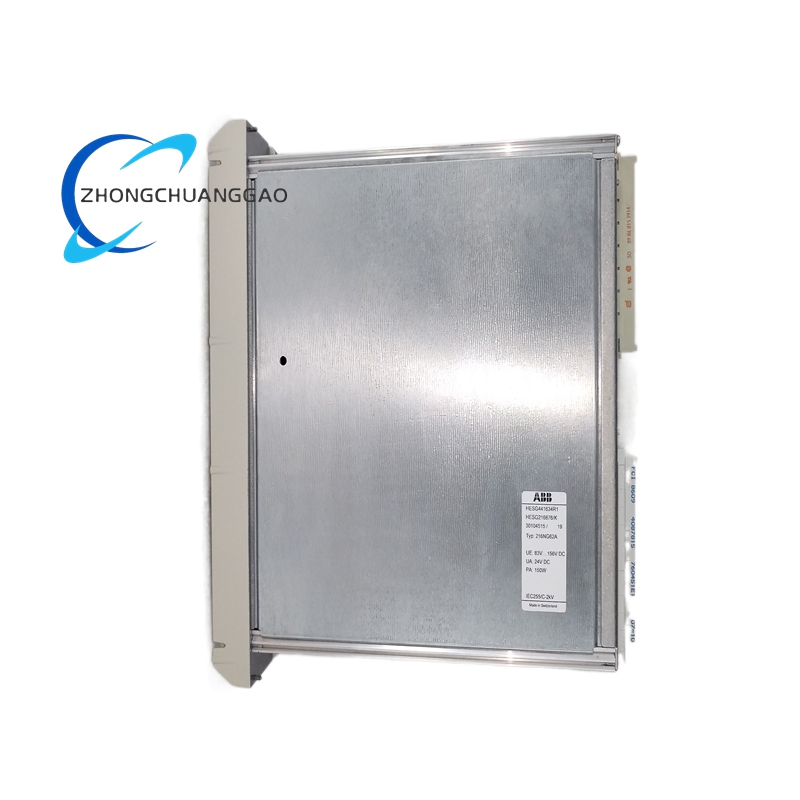

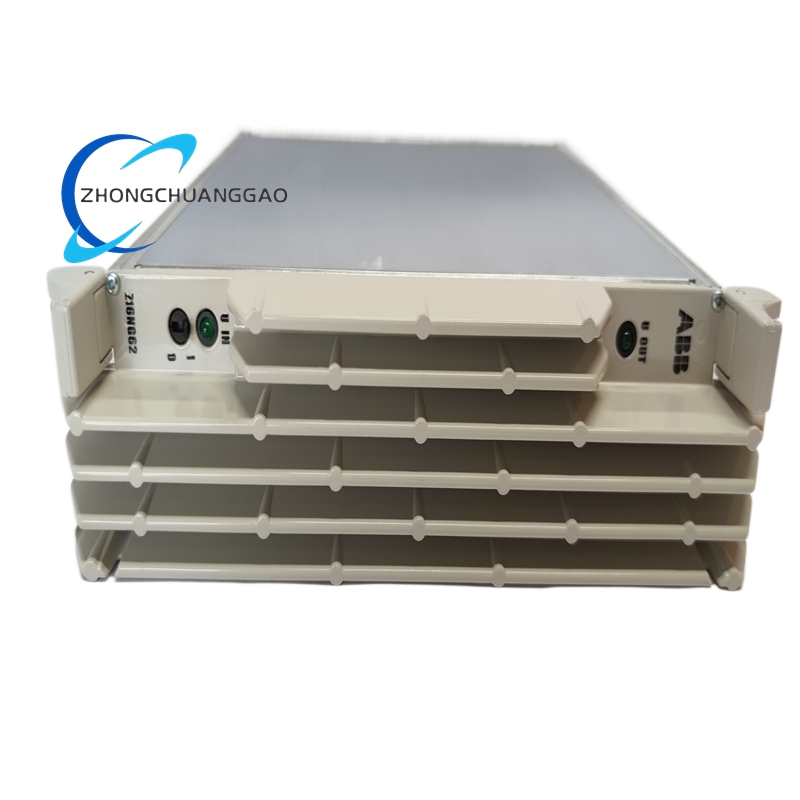

ABB 216NG62A HESG441634R1/K HESG216876 Automation Processor Module

• Input Channels: Supports up to 48 single-channel safety inputs or 24 dual-channel safety inputs.
• Output Channels: Features 2 pairs of OSSD (Output Signal Switching Device) outputs, each capable of handling 400 mA at 24 VDC.
• Safety Level: Complies with SIL 3 (Safety Integrity Level 3) and PL e (Performance Level e) standards, ensuring high reliability in safety-critical applications.
• Communication: Utilizes the B448C parallel bus for data exchange within the DCS framework.
• Power Supply: Accepts a wide range of input voltages, including 110/125 VDC ±25% (82.5 to 156 VDC), with an output of 24 VDC at 150 W.
• Environmental Conditions:
  • Operating Temperature: -10°C to +55°C
  • Storage Temperature: -20°C to +85°C
  • Relative Humidity: Up to 95% (non-condensing)
• Mechanical Design: Compact and rugged, suitable for installation in standard industrial equipment racks.

Functional Characteristics

• High Precision: Provides accurate and reliable data acquisition and processing, ensuring stable system operation.
• Flexible Configuration: Can be configured as a standalone unit or integrated into larger DCS networks, supporting complex control strategies.
• Safety Features: Incorporates advanced safety functions, including automatic diagnostics and protective measures to prevent equipment damage and ensure personnel safety.
• Easy Integration: Offers multiple communication interfaces and protocols, facilitating seamless integration with other industrial devices and systems.
• Robust Design: Built to withstand harsh industrial environments, with high resistance to vibration, shock, and electromagnetic interference.

Application Scenarios

• Power Generation: Used in power plants for boiler control, turbine control, and grid synchronization applications, ensuring efficient and stable power generation.
• Water Treatment: Applied in water and wastewater treatment facilities to monitor water quality and control treatment processes, contributing to environmental protection and resource conservation.
• Oil and Gas: Employed in upstream and downstream operations for process monitoring and control, enhancing operational efficiency and safety.
• Chemical and Petrochemical: Supports chemical processing plants in precise control of reaction conditions, ensuring product quality and safety.
• Metallurgy and Mining: Used in metallurgical and mining processes for monitoring and controlling critical parameters, improving production efficiency and resource utilization.
