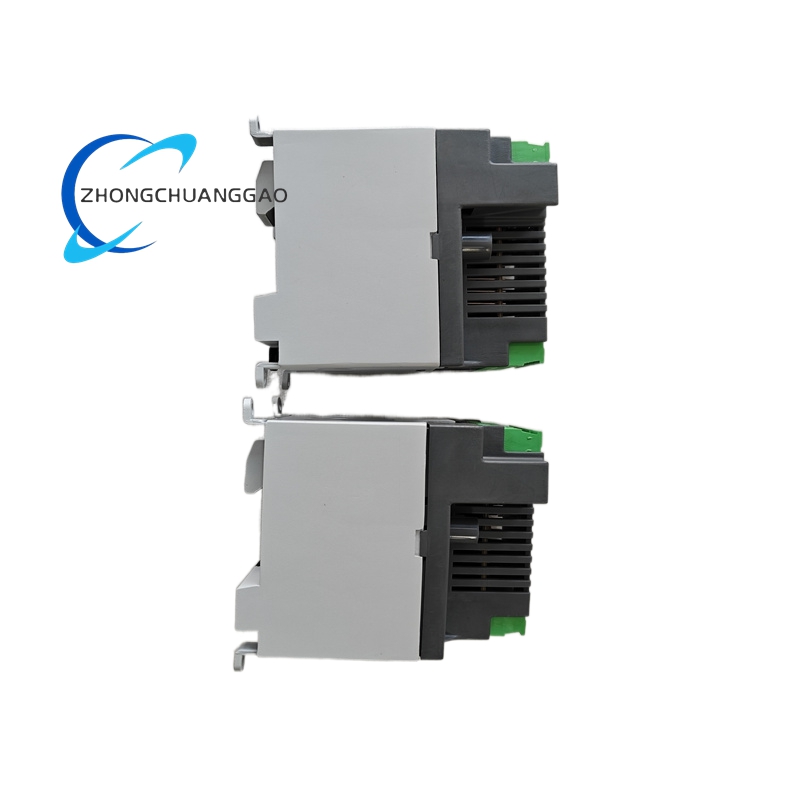

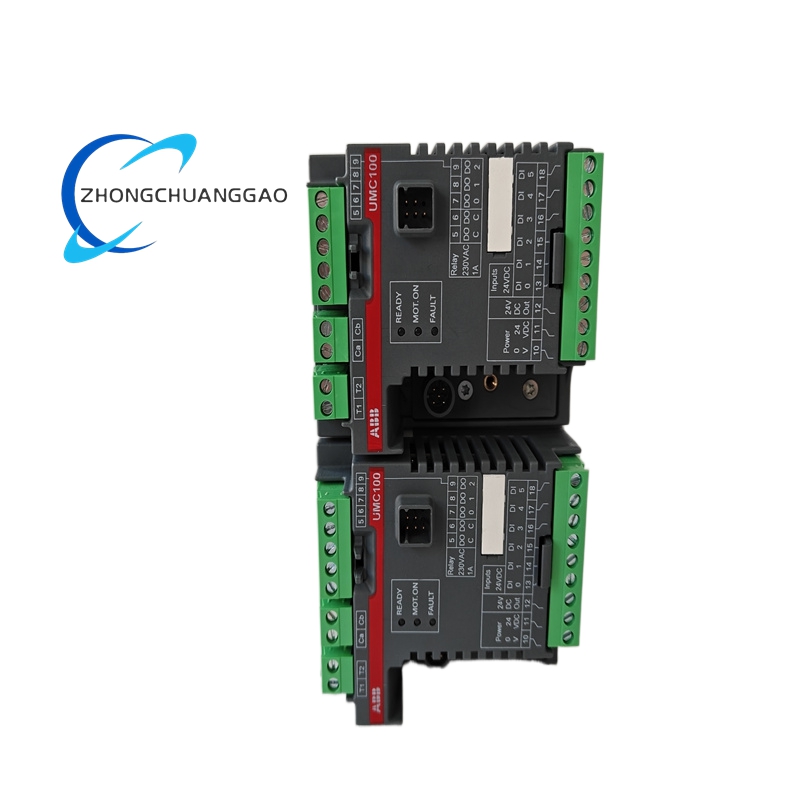

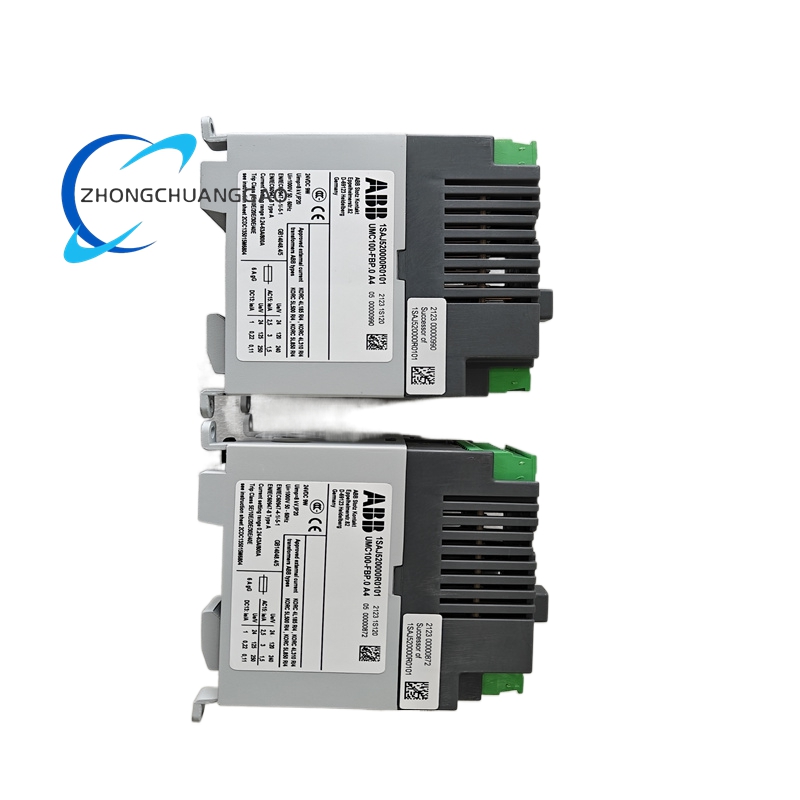

ABB 1SAJ520000R0101 UMC100-FBP.0 A4 Motor Controller

• Current Range: 0.24 A to 63 A
• Working Temperature: -25 °C to +70 °C
• Storage Temperature: -25 °C to +70 °C
• FieldBusPlug (FBP) Communication Interface: Supports protocols such as Modbus, Profibus, Profinet, DeviceNet, etc.
• Installation Method: DIN rail installation
• Input/Output: Up to 6 digital inputs and 3 digital outputs
• Protection Functions: Overload protection, short circuit protection, ground fault protection, and locked rotor protection
• Display Mode: Status LED or external HMI display
• Protection Level: IP20
• Dimensions:
  • Width: 17.6 mm (0.69 inches)
  • Height: 56.7 mm (2.23 inches)
  • Depth: 42.3 mm (1.67 inches)
• Weight: 90 grams (0.20 pounds)

Functional Characteristics

• Motor Protection: Provides comprehensive protection for low-voltage motors, including overload, short circuit, ground fault, and locked rotor protection.
• Motor Control: Supports full control over motor start, operation, monitoring, and stop functions.
• Communication Capabilities: Features an advanced FieldBusPlug (FBP) interface for easy integration with industrial fieldbus systems, enabling real-time data exchange and remote monitoring.
• Modular Design: Supports modular expansion through optical connection ports, allowing for scalable and flexible system configurations.
• User-Friendly Interface: Equipped with status LEDs or an external HMI display for intuitive operation and diagnostics.

Application Scenarios

• Industrial Automation: Used in industrial automation production lines for precise motor control and protection.
• Equipment Management: Manages the operation of pumps, fans, compressors, and other motor-driven equipment.
• Distribution and Control Cabinets: Provides motor monitoring and control functions within distribution cabinets and control panels.
• Modern Industrial Sectors: Applied in power generation, oil and gas, mining, water treatment, metallurgy, paper manufacturing, textiles, chemicals, and水利 (water conservancy) sectors.

Key Advantages

• High Reliability: Built with industrial-grade components to ensure stable performance in harsh environments.
• Scalability: Supports modular expansion to meet evolving system requirements.
• Ease of Integration: Compatible with standard industrial communication protocols, facilitating seamless connectivity with existing automation infrastructure.
• Cost-Effectiveness: Reduces total cost of ownership through long service life, low maintenance needs, and energy-efficient operation.
