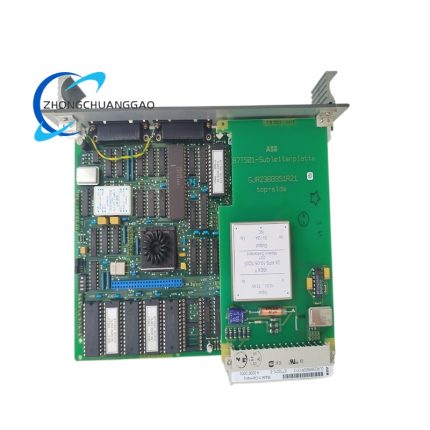

ABB 87TS01L Digital Output Module
ABB 87TS01L Digital Output Module
Back to products
A-B 150-F135NBR Soft Starter
A-B 150-F135NBR Soft Starter

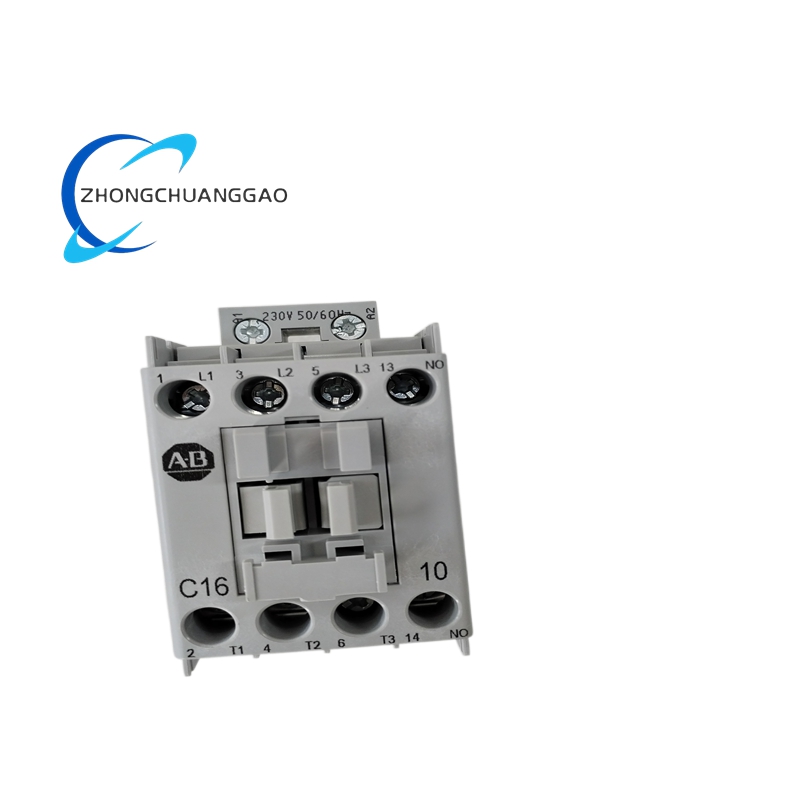

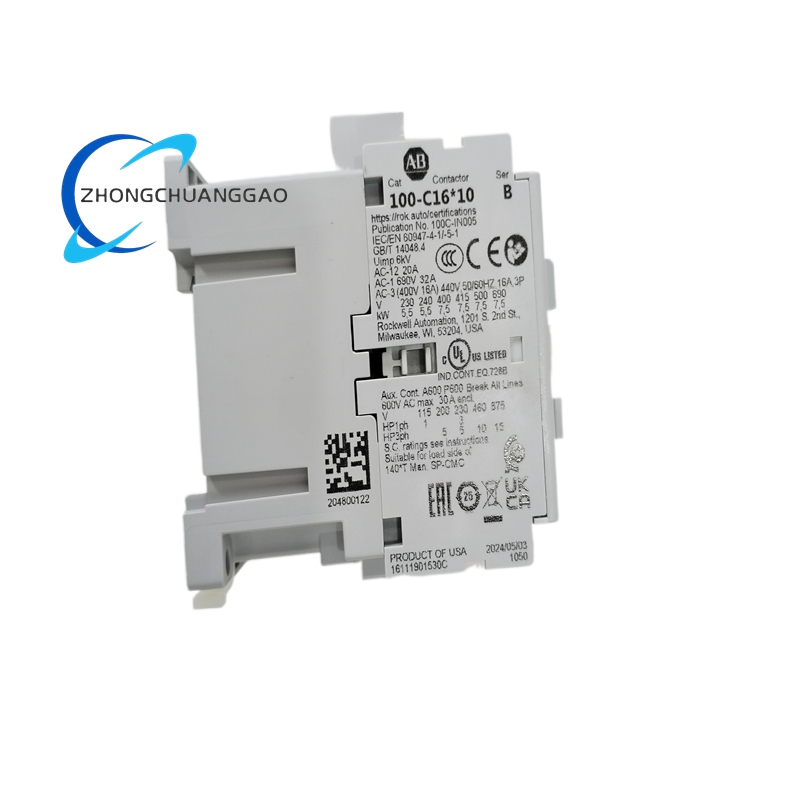

ABB 100-C16KF10 IEC Standard Contactor

Product Overview

The ABB 100-C16KF10 is an IEC standard contactor designed for high-performance switching in industrial automation applications. It is part of ABB’s Bulletin 100 series, known for its reliability, long service life, and high electrical and mechanical endurance. This contactor is suitable for controlling various loads, including motors, lighting, and heating systems, in diverse industrial environments.

Technical Specifications

  • Rated Current: 16A
  • Rated Voltage: Up to 690V AC
Category:
Description
  • Pole Configuration: 3-pole
  • Coil Voltage: Available in various DC and AC voltages (e.g., 24V DC, 110V AC, 220V AC)
  • Electrical Life: Typically up to 1 million operations under specified conditions
  • Mechanical Life: Up to 20 million operations
  • Contact Material: Silver alloy for high conductivity and wear resistance
  • Isolation: Double-break contacts for enhanced safety and reliability
  • Mounting: DIN rail or panel mounting for easy installation
  • Approvals: Complies with IEC standards, including IEC 60947-4-1 and IEC 60947-5-1

Functional Characteristics

  • High Reliability: Designed for long service life with minimal maintenance requirements.
  • Versatile Control: Suitable for both AC and DC coil voltages, providing flexibility in different control systems.
  • Robust Construction: Built to withstand harsh industrial environments, including temperature variations, humidity, and vibration.
  • Easy Installation: Compact design with DIN rail or panel mounting options simplifies installation and replacement.
  • Safety Features: Double-break contacts ensure complete isolation of the controlled circuit when the contactor is open.
  • Environmental Resistance: The contactor is resistant to dust, moisture, and corrosive substances, making it suitable for a wide range of applications.

Application Scenarios

  • Motor Control: Used for starting, stopping, and reversing three-phase motors in various industrial machinery and equipment.
  • Lighting Systems: Controls the switching of lighting circuits in factories, warehouses, and commercial buildings.
  • Heating Systems: Manages the operation of electric heating elements in industrial ovens, boilers, and HVAC systems.
  • Power Distribution: Part of power distribution panels for controlling the flow of electricity to different loads.
  • Automation Systems: Integrates with PLCs and other control devices in automated production lines and process control systems.
  • Renewable Energy: Utilized in solar power and wind turbine systems for controlling inverters and other components.
