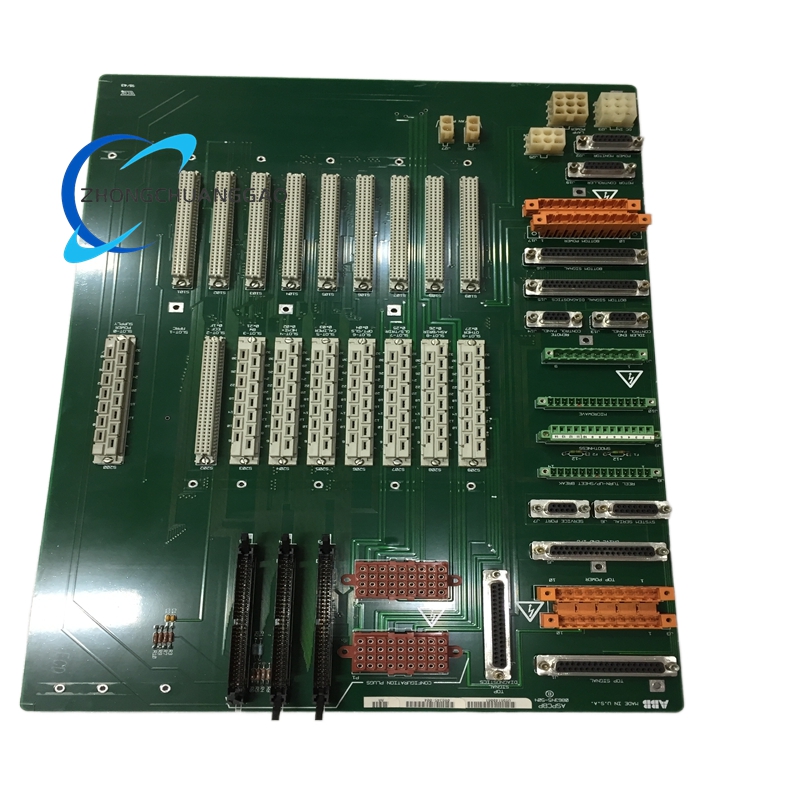

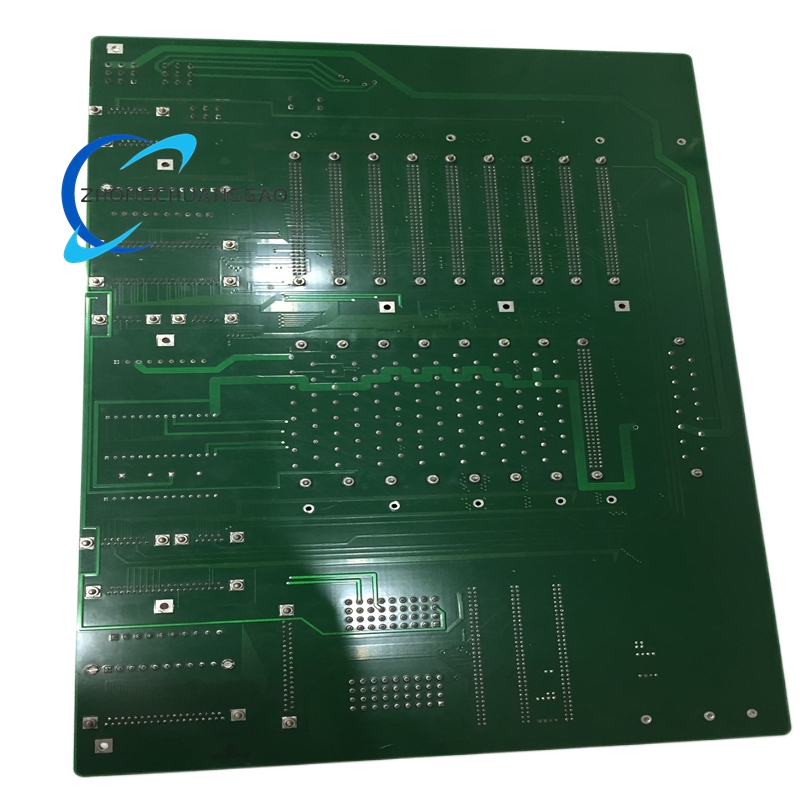

ABB 086345-004 Dynamic Measurement and Control Module

Technical Specifications

• Power Supply: Supports 24VDC power supply, ensuring stable operation in various industrial environments.
• Operating Temperature Range: Withstands temperatures from -40°C to 100°C, making it suitable for harsh conditions.
• Protection Grade: Features an IP20 protection grade, providing basic protection against dust and solid objects.
• Communication Protocols: Compatible with PROFIBUS-DP and Modbus TCP/IP protocols, facilitating seamless integration into existing industrial networks.
• Control Functions: Supports V/F closed-loop control, ensuring precise speed regulation of motors.
• Speed Control Accuracy: Achieves a speed control accuracy of ±0.2%, enhancing the stability and efficiency of controlled processes.
• Low-Frequency Starting Torque: Delivers a low-frequency starting torque of 200% at 0.5Hz, enabling smooth starts under heavy loads.
• Protection Mechanisms: Integrates overvoltage, overcurrent, phase loss, and overheating protection, safeguarding the module and connected equipment from damage.
• Safety Certification: Complies with SIL2/3 safety standards, ensuring high levels of safety and reliability in critical applications.
• Channel Isolation: Features channel isolation voltage of 1500V AC, preventing interference between channels and enhancing measurement accuracy.
• RS485 Calibration: Supports RS485 differential pressure calibration with a minimum of 1.5V, ensuring accurate data transmission.
• Insulation Resistance: Exhibits an insulation resistance of ≥100MΩ@500V DC, providing excellent electrical isolation.
• Programming Languages: Compatible with Ladder Logic, SFC, and ST programming languages, offering flexibility in system configuration and control logic development.

Functional Characteristics

• High-Precision Measurement: Utilizes advanced measurement techniques to capture minute changes in dynamic parameters, enabling early fault detection and prevention.
• Real-Time Monitoring: Continuously monitors the status of connected equipment, providing real-time data for analysis and decision-making.
• Flexible Configuration: Supports customization of measurement parameters and control logic to meet diverse application requirements.
• Robust Design: Built with industrial-grade components and protected by a sturdy enclosure, ensuring reliable operation in demanding industrial environments.
• Easy Maintenance: Features hot-swappable design and internal battery maintenance functions, simplifying module replacement and reducing downtime.

Application Scenarios

• Industrial Automation: Widely used in elevator systems, textile machinery, machine tools, cranes, and conveyor systems for precise control and monitoring of dynamic parameters.
• Power Generation: Applied in power plants for monitoring turbines, generators, and other critical equipment to prevent catastrophic failures and ensure stable power supply.
• Oil and Gas: Utilized in the oil and gas industry for monitoring compressors, pumps, and other rotating machinery, optimizing production efficiency and safety.
• Water Treatment: Employed in water treatment facilities for monitoring pumps, valves, and other equipment, ensuring efficient water treatment processes.
• Manufacturing: Used in manufacturing lines for monitoring motors, conveyors, and other machinery, improving production quality and reducing downtime.
• Transportation: Integrated into transportation systems, such as railways and airports, for monitoring signaling equipment, baggage handling systems, and other critical infrastructure.
• Special Environments: Suitable for use in offshore platforms, wind farms, and other special environments where reliable dynamic measurement and control are essential.
