MOTOROLA MVME-5500-0163 VMEbus Single Board Computer

Technical Specifications
  • Processor: Equipped with a high-performance 1 GHz MPC7455 or MPC7457 PowerPC processor, featuring 512 KB L2 cache and 2 MB L3 cache for superior computational capabilities.
  • Memory: Supports up to 512 MB ECC SDRAM onboard, with options for expansion via memory mezzanine cards. It also includes flash memory for firmware storage.
  • I/O Interfaces:
    • Ethernet: One Gigabit Ethernet port and one additional 10/100BaseTX Ethernet port for high-speed network connectivity.
    • Serial Ports: Two asynchronous serial ports for communication with peripheral devices.
    • PCI and PMC Sites: Dual independent 64-bit PCI buses operating at 33/66 MHz, each with a PMC site for expansion cards.
    • VME Interface: Universe II VME interface for seamless integration with VMEbus systems.
    • Expansion Connectors: 64-bit PCI expansion mezzanine connector for additional I/O expansion.
Read more
Quick view

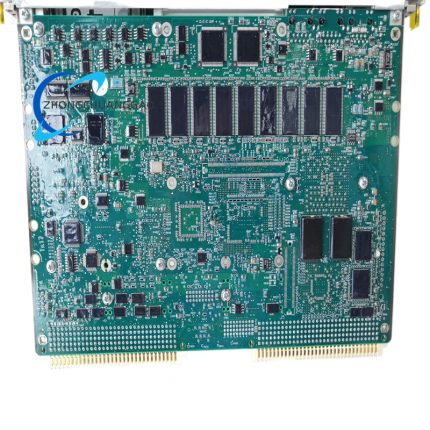

Motorola MVME-6100

Product Introduction

The MVME - 6100 is a high - performance VMEbus single - board computer originally developed by Motorola, now under GE (via Emerson Network Power acquisition). It is the first VMEbus SBC to feature the Tundra Tsi148 interface chip supporting the 2eSST (two edge source synchronous transfer) protocol, which boosts VMEbus practical bandwidth to 320MB/s. Powered by a 1.267 GHz MPC7457 PowerPC processor with a 128 - bit AltiVec parallel processing coprocessor, it delivers robust computing power for real - time data processing and control. It comes with up to 2GB DDR ECC SDRAM, 128MB on - board flash memory, dual Gigabit Ethernet ports, and dual PMC/XMC expansion slots, making it suitable for mission - critical scenarios that demand high reliability, determinism, and scalability.
Read more
Quick view

Motorola MVME-6100 VMEbus Single Board Computer

Technical Specifications
  • Processor: Equipped with an NXP MPC7457 PowerPC processor running at up to 1.267 GHz, featuring a 128-bit AltiVec coprocessor for enhanced parallel processing capabilities.
  • Memory: Supports up to 2 GB of ECC-protected DDR DRAM for reliable data storage and processing, along with up to 128 MB of flash memory for firmware and application storage.
  • VMEbus Interface: Utilizes the Tundra Tsi148 VMEBridge ASIC, providing 2eSST protocol support for a VMEbus transfer rate of up to 320 MB/s, ensuring high-speed data communication within the VMEbus system.
  • I/O Interfaces:
    • Ethernet: Dual Gigabit Ethernet ports for high-speed network connectivity.
    • Serial Ports: One asynchronous serial port for communication with peripheral devices.
    • PMC Sites: Two 64-bit PMC (PCI Mezzanine Card) sites, supporting PCI bus speeds from 33 MHz to 100 MHz, allowing for expansion with industry-standard modules.
    • Other Interfaces: Includes a reset and abort switch, and LED indicators for board status monitoring.
Read more
Quick view

Motorola MVME-61006E-0163 VMEbus Single Board Computer

Technical Specifications
  • Processor: Equipped with an NXP MPC7457 PowerPC processor, running at up to 1.267 GHz, featuring a 128-bit AltiVec coprocessor for enhanced parallel processing capabilities.
  • Memory: Supports up to 1 GB of ECC-protected DDR DRAM for reliable data storage and processing, along with up to 128 MB of flash memory for firmware and application storage.
  • VMEbus Interface: Utilizes the Tundra Tsi148 VMEBridge ASIC, providing 2eSST protocol support for a VMEbus transfer rate of up to 320 MB/s, ensuring high-speed data communication within the VMEbus system.
  • I/O Interfaces:
    • Ethernet: Dual Gigabit Ethernet ports for high-speed network connectivity.
    • Serial Ports: One asynchronous serial port for communication with peripheral devices.
    • PMC Sites: Two 64-bit PMC (PCI Mezzanine Card) sites, supporting PCI bus speeds from 33 MHz to 66 MHz, allowing for expansion with industry-standard modules.
    • Other Interfaces: Includes a reset and abort switch, and LED indicators for board status monitoring.
Read more
Quick view

MOTOROLA MVME-717 VMEbus-Based Controller Module

Technical Specifications
  • Processor: Features a high-performance processor (specific model may vary based on version) for fast and efficient computation.
  • Memory: Supports multiple memory configurations, including RAM and Flash/ROM, to meet different application requirements.
  • VMEbus Interface: A32/D32 VMEbus master/slave interface with system controller functionality, ensuring high-speed data transfer and reliable operation.
  • I/O Interfaces: Includes multiple serial communication ports, parallel interfaces, and optional additional interfaces such as SCSI and Ethernet for versatile connectivity.
  • Timers and Watchdog: Equipped with timers and a watchdog mechanism to ensure system stability and reliable operation.
Read more
Quick view
Placeholder

MOTOROLA MVME-761-001 VMEbus Single Board Computer

Technical Specifications
  • Processor: The MVME-761-001 is equipped with a high-performance processor (specific model may vary based on version) to ensure fast and efficient computation.
  • Memory: It supports multiple memory configurations, including RAM and Flash/ROM, to meet different application requirements.
  • VMEbus Interface: Features an A32/D32 VMEbus master/slave interface with system controller functionality, ensuring high-speed data transfer and reliable operation.
  • I/O Interfaces:
    • Serial Ports: Two EIA-574 asynchronous serial ports (DTE) and two asynchronous/synchronous serial ports configurable for EIA-232-D, EIA-530, V.35, or X.21 interfaces (DCE or DTE).
    • Parallel Port: One parallel port compliant with IEEE standard 1284-1.
    • Ethernet: One 10Base-T/100Base-TX Ethernet port for network connectivity.
    • SIM Connectors: Two 60-pin SIM (Serial Interface Module) connectors for configuring asynchronous/synchronous serial ports.
Read more
Quick view

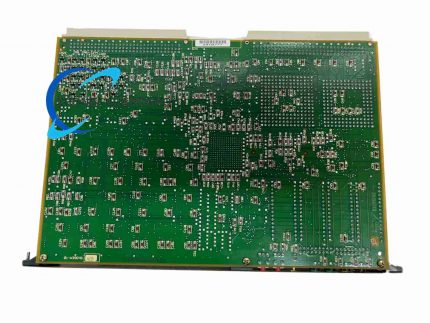

Motorola MVME147S-1

Technical Specifications:
  • Processor: MC68030 enhanced 32-bit microprocessor (16/25/33.33 MHz) with on-chip cache memory, improving efficiency by 20-40%.
  • Floating-Point Coprocessor: MC68882 for accelerated mathematical operations.
  • Memory:
    • 4/8/16/32 MB shared DRAM (with parity on MVME147S; parity-free on MVME147SRF).
    • 4K x 8 SRAM with battery backup for non-volatile storage.
    • Four 16-bit-wide sockets for ROM/PROM/EPROM/EEPROM.
  • VMEbus Interface: A32/D32 master/slave system controller with 4-level requester and 7-level interrupt handler.
Read more
Quick view

MOTOROLA MVME147S-1 VME Single-Board Computer

Technical Specifications
  • Microprocessor:
    • 16, 25, or 33.33 MHz MC68030 enhanced 32-bit microprocessor with on-chip cache memory for both instructions and data, increasing processor efficiency by 20% to 40%.
    • Optional 16, 25, or 33.33 MHz MC68882 floating-point coprocessor for enhanced numerical computation capabilities.
  • Memory:
    • 4, 8, 16, or 32MB shared DRAM with programmable parity checking.
    • 4K x 8 SRAM with battery backup for real-time clock and data retention.
    • Four 28/32-pin sockets for ROM/PROM/EPROM/EEPROM (16-bit wide).
  • VMEbus Interface:
    • A32/D32 VMEbus master/slave interface with system controller functionality.
    • Supports 4-level requester, 7-level interrupter, and 7-level interrupt handler for VMEbus operations.
Read more
Quick view

MOTOROLA MVME162-13 Embedded Controller

Technical Specifications
  • Microprocessor Options:
    • 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB cache, MMU, and FPU.
    • Optional 25 MHz MC68040 32-bit microprocessor with 8KB cache, MMU, and FPU.
    • Optional 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB cache and MMU.
  • Memory:
    • 4, 8, or 16MB shared DRAM.
    • 512KB SRAM with battery backup.
    • 1MB flash memory for onboard monitor/debugger or user-installed firmware.
    • 8K x 8 NVRAM with battery-backed clock.
  • VMEbus Interface:
    • A32/D64 VMEbus master/slave interface with system controller functionality.
    • High-performance DMA support for VMEbus D64 and local bus memory burst cycles.
Read more
Quick view

Motorola MVME162-213 – Compact VME Single-Board Computer

Technical Specifications

  • Processor: 25 MHz Motorola MC68LC040 32-bit microprocessor with 8 KB cache and Memory Management Unit (MMU), supporting deterministic real-time operations .
  • Memory:
    • DRAM: 4 MB parity-protected dynamic RAM (expandable to 8 MB via daughter cards) .
    • SRAM: 128 KB battery-backed static RAM for critical data storage .
    • Flash: 1 MB flash memory for firmware/BIOS storage .
Read more
Quick view

Motorola MVME162-213 Embedded Controller

Technical Specifications:
  • Processor:
    • 25 MHz or 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB cache, MMU (Memory Management Unit), and optional FPU (Floating-Point Unit).
    • Alternatively, a 25 MHz MC68LC040 enhanced 32-bit microprocessor (without FPU) is available.
  • Memory:
    • 4MB, 8MB, or 16MB shared DRAM with parity protection (expandable up to 64MB via expansion mezzanine).
    • 512KB SRAM with battery backup for non-volatile storage.
    • 1MB flash memory for firmware or user-installed applications.
    • 8K x 8 NVRAM with battery backup for clock and critical data retention.
Read more
Quick view

Motorola MVME2100 VMEbus Single Board Computer (SBC)

Technical Specifications:
  • Processor:
    • Typically equipped with an MPC8240 or PowerPC 603e processor (32-bit PowerPC architecture).
    • Clock speeds range from 200 MHz to 400 MHz, supporting high-performance computing tasks like real-time data processing and complex algorithm execution.
    • Integrated 16 KB L1 instruction cache and 16 KB L1 data cache to enhance instruction execution efficiency.
  • Memory:
    • Onboard 32 MB or 64 MB SDRAM (synchronous dynamic random-access memory) with optional ECC (Error-Correcting Code) protection for data reliability.
    • 1 MB flash memory (via two 32-pin PLCC/CLCC sockets) for firmware storage.
    • Supports 4 MB or 8 MB surface-mount flash memory (64-bit interface) for large-capacity storage needs.
    • 8 KB NVRAM (non-volatile random-access memory), with 4 KB available for user-defined critical configuration data.
Read more
