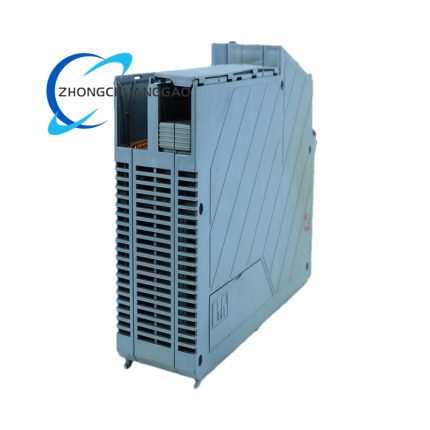

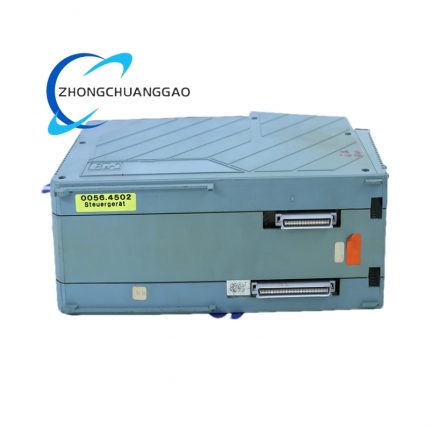

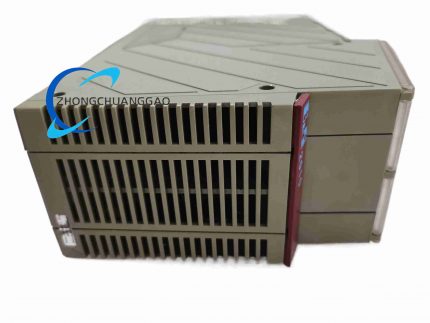

B&R 2CP100.60-1 Control Module

Technical Specifications:
  • Operating Voltage: 220V AC (±10%), 50Hz (±5%)
  • Power Consumption: ≤20VA
  • Indicating Accuracy: ±0.5%
  • Recording Accuracy: ±1%
  • Control Accuracy: ±0.5%
  • Output Contact Capacity: AC 220V/1A (non-inductive load), DC 28V/2A (resistive load)
  • Set Range: 0–100% (two groups)
  • Travel Time: ≤5 seconds
  • Indication Insensitivity Zone: ±0.25%
  • Scale Length: 550mm

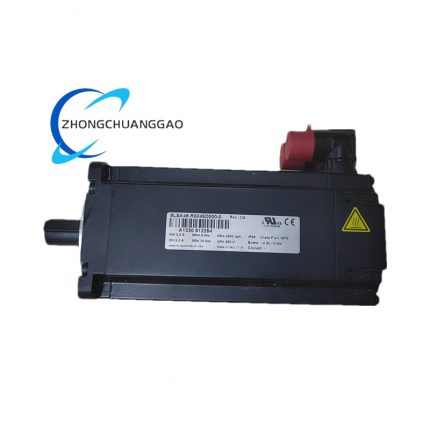

B&R 8LS46.R0045D000-0 – High-Performance Synchronous Servo Motor

Technical Specifications:
  • It belongs to the 8LS series of synchronous servo motors known for their compact design and high efficiency.
  • The motor offers a rated speed and torque suitable for precise motion control requirements.
  • Features an integrated encoder for feedback, ensuring accurate position control.
  • Designed to operate efficiently within a specified voltage range, contributing to energy savings and performance optimization.

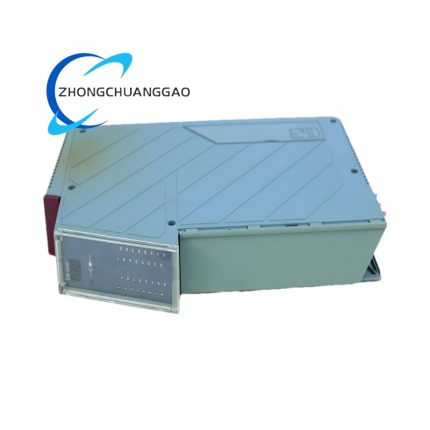

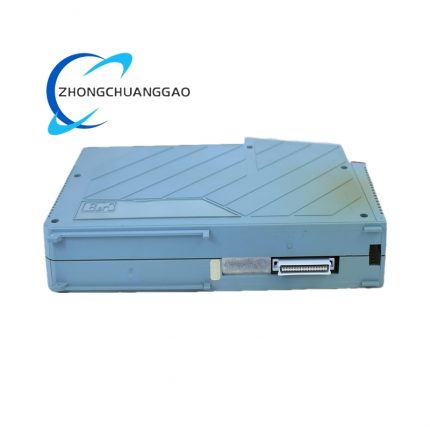

B&R DI426 Digital Input Module

Technical Specifications:
  • Input Channels: 32 digital inputs
  • Input Voltage: 24V DC
  • Response Time: 1 millisecond
  • Input Types: Supports both sink (NPN) and source (PNP) configurations
  • Isolation: 8-group electrical isolation between input channels
  • Module Design: Modular structure for easy installation and maintenance
  • Operating Temperature: -20°C to +60°C
  • Protection Rating: IP20 (non-condensing environments)

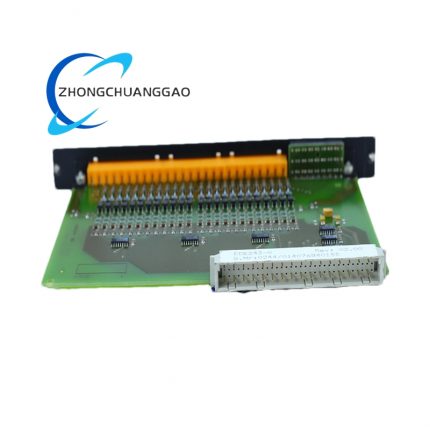

B&R ECE243-0 Ethernet Communication Module

Technical Specifications:
  • Interface: Dual Ethernet ports (10/100 Mbps)
  • Protocols Supported: POWERLINK, OPC UA, Modbus TCP, EtherNet/IP, PROFINET
  • Data Transfer Rate: Up to 100 Mbps
  • Operating Temperature: -25°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Resistance: Up to 95% non-condensing
  • Dimensions: 120mm × 80mm × 30mm (L × W × H)
  • Weight: 0.3kg
  • Power Consumption: 5W (typical)
  • Certifications: CE, UL, cUL
  • IP Rating: IP20 (dust and particle resistance)

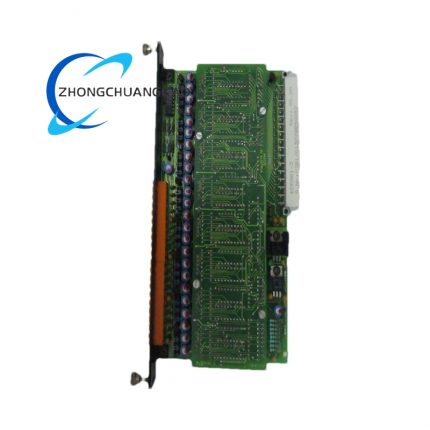

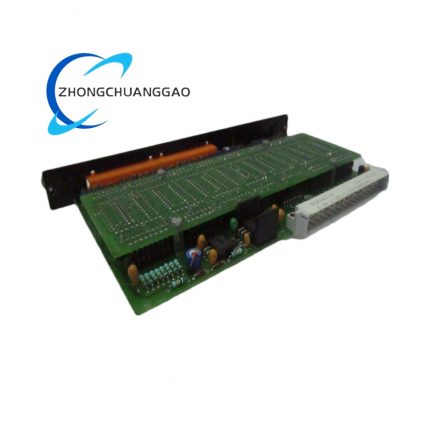

B&R ECPA81-2 Parallel Processor Interface Module

Technical Specifications:
  • Control Functions: Equivalent to PLC capabilities for logic operations, sequence control, timing, and counting.
  • Communication: Supports wireless pulse transmission.
  • Addressing: Configurable via 8-bit rotary dial.
  • Frequency Ranges: Two selectable frequency bands.
  • Backup Power: Integrated connection for uninterrupted operation during power failures.
  • Error Handling: Simplified detection and correction of setup errors.

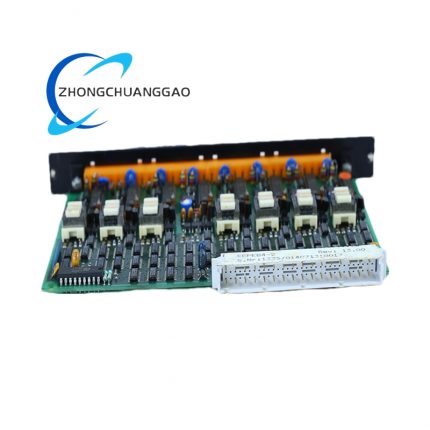

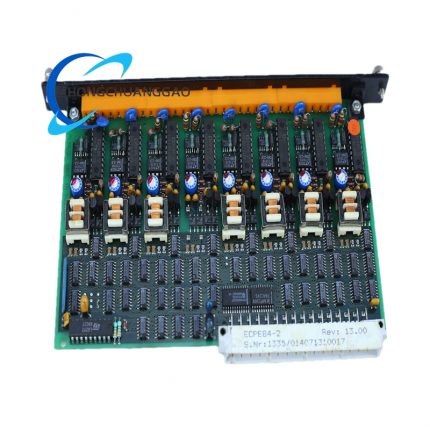

B&R ECPE84-2 Analog Input Module

Technical Specifications:
  • Input Channels: 8 analog inputs
  • Input Range: 0–25 mA (configurable)
  • Resolution: 15-bit
  • Isolation: Channel-to-system current isolation
  • Input Voltage: 24V DC
  • Operating Temperature: -20°C to +60°C
  • Communication Interfaces: Ethernet, RS232, RS485
  • Dimensions: 1.0 inch x 8.5 inches x 5.5 inches (2.5 cm x 21.6 cm x 14.0 cm)
  • Weight: 0.3 kg
  • Origin: Austria

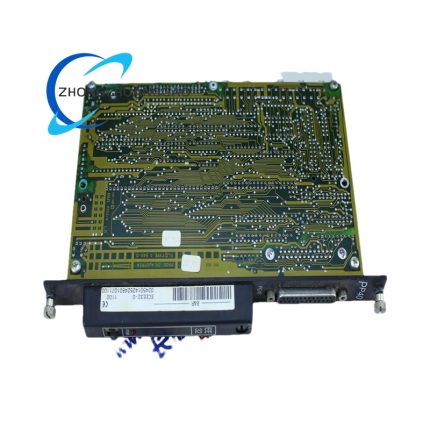

B&R ECPP40-01 Power Supply Module

Technical Specifications:
  • Input Voltage Range: 85-264V AC (50/60Hz)
  • Output Voltage: 24V DC
  • Rated Output Current: 1.7A (40W max power)
  • Efficiency: ≥88%
  • Protection Features: Overload, short-circuit, and overvoltage protection
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Cooling Method: Natural convection (fanless)
  • Dimensions: 125mm × 80mm × 100mm (L × W × H)
  • Weight: 0.6kg
  • Certifications: CE, UL, cUL
  • IP Rating: IP20 (dust and particle resistance)

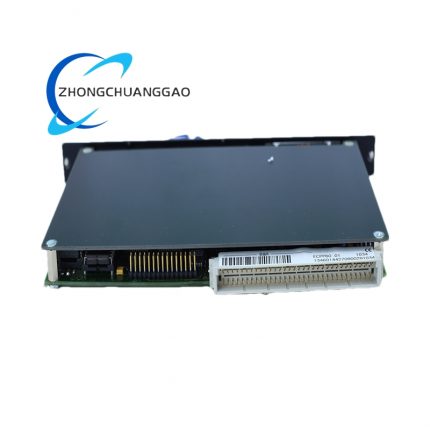

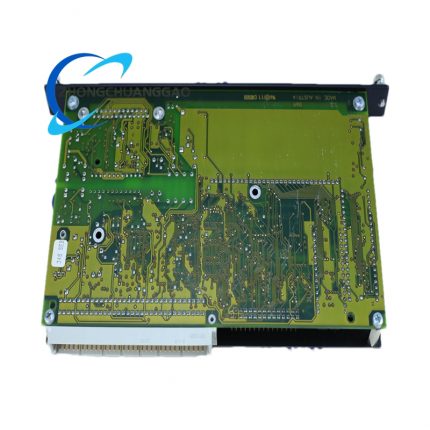

B&R ECPP60-01 Power Supply Module

Technical Specifications:
  • Input Voltage: 100–240V AC (50/60Hz)
  • Output Voltage: 24V DC
  • Output Current: 2.5A (60W max power)
  • Efficiency: ≥85%
  • Protection: Overload, short-circuit, and overvoltage protection
  • Operating Temperature: -25°C to +70°C
  • Cooling: Convection cooling (no fans required)
  • Dimensions: 125mm × 80mm × 100mm (L × W × H)
  • Weight: 0.5kg
  • Certifications: CE, UL, cUL

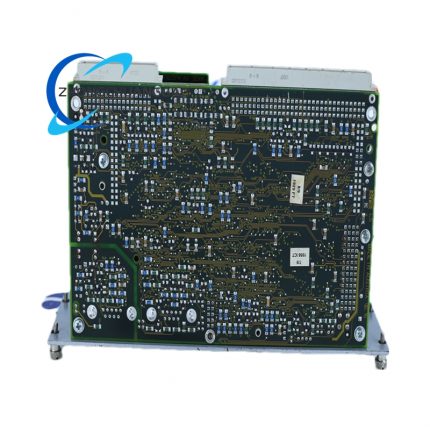

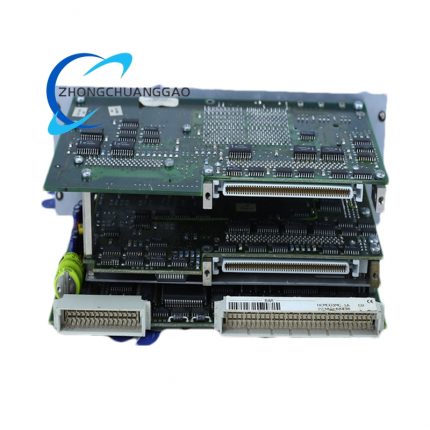

B&R HCMCO3MC-1A High-Performance Control Module

Technical Specifications:
  • Operating Voltage: 220V AC (some sources indicate 240V AC for specific variants).
  • Output Frequency: Up to 100kHz (30kHz in certain configurations).
  • I/O Configuration: Configurable for discrete inputs/outputs (e.g., 16 channels for digital signals).
  • Signal Types: Supports 4–20 mA, RS485, and HART protocols for sensor communication.
  • Environmental Rating: IP67 (dust-tight and waterproof), with operating temperatures ranging from -40°C to +85°C.
  • Material: Stainless steel housing for corrosion resistance.
  • Certifications: ATEX/CSA-certified for explosive atmospheres, complying with IEC 61511 (SIL 3) for safety systems.

B&R NT43 Power Supply Unit

Technical Specifications:
  • Output Voltage: 24V DC
  • Rated Current: 43A
  • Input Voltage Range: 85-264V AC
  • Efficiency: ≥90%
  • Protection: Overload, short-circuit, and overvoltage protection
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Cooling: Natural convection (fanless)
  • Dimensions: 125mm × 80mm × 100mm (L × W × H)
  • Weight: 0.8kg
  • Certifications: CE, UL, cUL
  • IP Rating: IP20 (dust and particle resistance)
