GE IC693CPU352 Series 90-30 Single-Slot CPU Module
Product Introduction

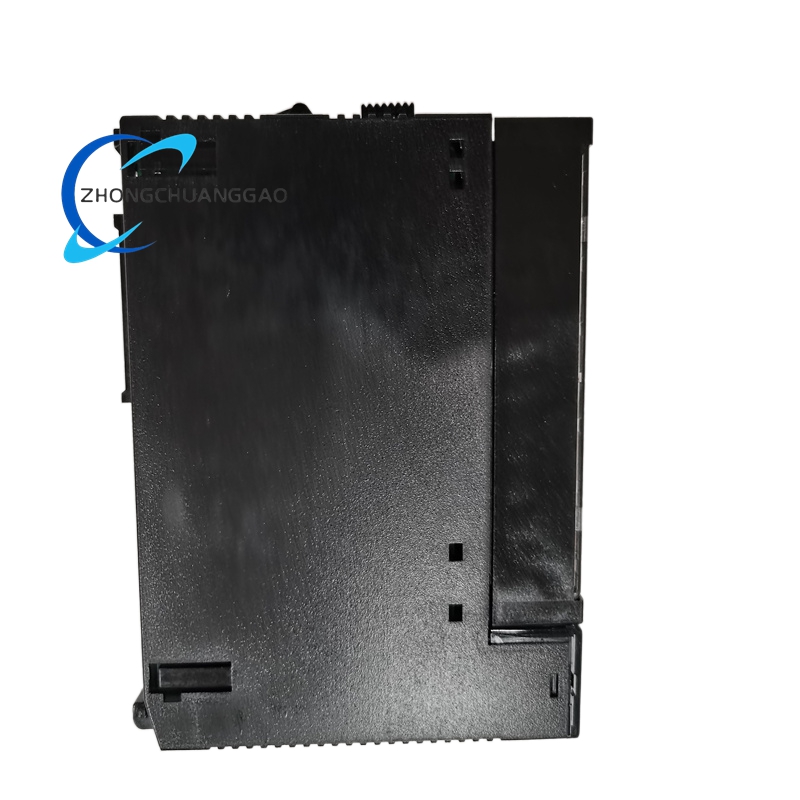

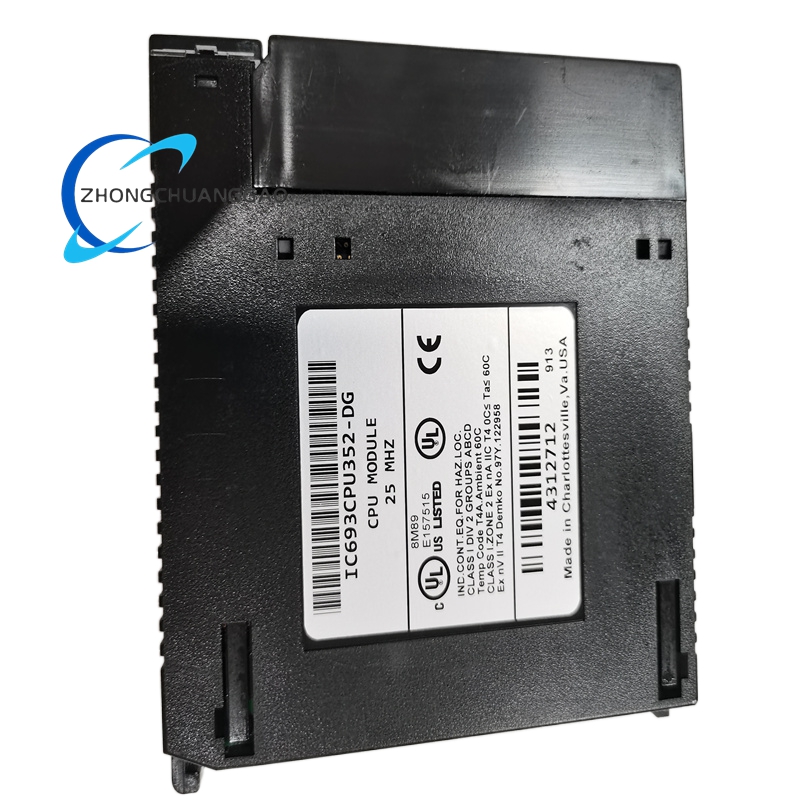

The IC693CPU352 is a single-slot CPU module of the GE Fanuc Series 90-30 PLC system, acting as the core control unit for industrial automation systems. It is powered by a 25 MHz Intel 80386EX 32-bit microprocessor, delivering reliable and efficient processing for medium to large-scale control tasks. This module offers 240 KB of configurable user memory (Flash + RAM) and supports up to 8 baseplates (1 CPU + 7 expansion/remote), ensuring scalability for diverse I/O requirements. It integrates three serial ports, supports multiple communication protocols, and is fully compatible with Proficy Machine Edition software, enabling seamless programming, configuration, and system integration. It maintains data integrity via battery backup and works with PCM/CCM modules for enhanced memory and configuration flexibility, serving as a robust solution for complex automation applications.
GE IC693CPU351-DF Series 90-30 Single-Slot CPU Module
Product Introduction
The IC693CPU351-DF is a high-performance single-slot CPU module belonging to the GE Fanuc Series 90-30 PLC system, designed to execute complex control logic and manage diverse automation processes efficiently. It is equipped with the Intel 80386EX 32-bit microprocessor running at 25 MHz, providing robust computational capabilities for industrial control applications. This module is suitable for medium to large - scale industrial automation systems that require reliable processing, extensive I/O connectivity, and flexible communication options, and is fully compatible with the Series 90-30 hardware and Proficy Machine Edition programming software. It also supports firmware updates to version 9.0 and later, enabling advanced functions like floating - point math for more complex control algorithms.
GE IC693CMM302
Technical Specifications:
- Compatible PLC Series: GE 90-30 series PLCs.
- Communication Protocol: Genius protocol, compatible with 90-30/90-70/six series PLCs and Genius Handheld Monitor (HHM).
- Device Connection Capacity: Supports up to 31 Genius devices per module (up to 62 devices per controller when using two modules).
- Data Transmission: Supports 693 bytes of transmission and 302 bytes of reception for global data, covering PLC registers such as %G, %I, %Q, %AI, %AQ, and %R.
GE IC693CMM302
Technical Specifications:
- Compatible PLC Series: GE 90-30 series PLCs.
- Protocol Support: Genius protocol, compatible with 90-30/90-70/six series PLCs and Genius Handheld Monitor (HHM).
- Device Connection Capacity: Up to 31 Genius devices per module (up to 62 devices per controller when using two modules).
- Global Data Exchange: Supports transmission of 693 bytes and reception of 302 bytes of global data per IC128CMM128 cycle.
GE IC693CBL313
Technical Specifications:
- Input Channels: 4 channels (supporting cascade expansion up to 32 channels).
- Input Type: Digital input (compatible with NPN/PNP sensors).
- Input Voltage Range: DC 24V (compatible with 12-30V wide voltage range).
- Response Time: ≤2ms (typical value).
- Isolation Characteristics: Channel-to-channel optical isolation with an isolation voltage ≥2000Vrms.
- Operating Temperature: -40°C to 70°C (wide temperature design).
GE IC693BEM331
Technical Specifications:
- Compatible PLC Series: GE 90-30 series PLCs (e.g., IC693CPU311K, IC693CPU321K, IC693CPU331L, and higher versions).
- Firmware Requirement: Firmware version 5.0 or higher.
- Number of Devices Supported: Up to 31 Genius devices can be connected.
- Data Handling Capacity: Processes up to 128 bytes of input and output data from field devices on the bus.
- Communication Protocols: Supports Genius communication protocol.
GE IC693BEM331
Technical Specifications:
- Compatible PLC Series: GE 90-30 series PLCs (e.g., IC693CPU311K, IC693CPU321K, IC693CPU331L, and higher versions)
- Firmware Requirement: Firmware version 5.0 or higher
- Number of Devices Supported: Up to 31 Genius devices can be connected
- Data Handling Capacity: Processes up to 128 bytes of input and output data from field devices on the bus
- Communication Protocols: Supports Genius communication protocol
GE IC693APU300
Technical Specifications:
- Processor: 80C186XL, with a clock speed of 33 MHz
- Memory: 512 KB
- Input Channels: 12 source inputs (12 positive logic inputs)
- Output Channels: 4 positive logic outputs
- Input Voltage Range: 5 V DC or 10 to 30 V DC
- Output Voltage Range: 4.7 to 40 V DC
- Maximum Count Rate: 80 kHz

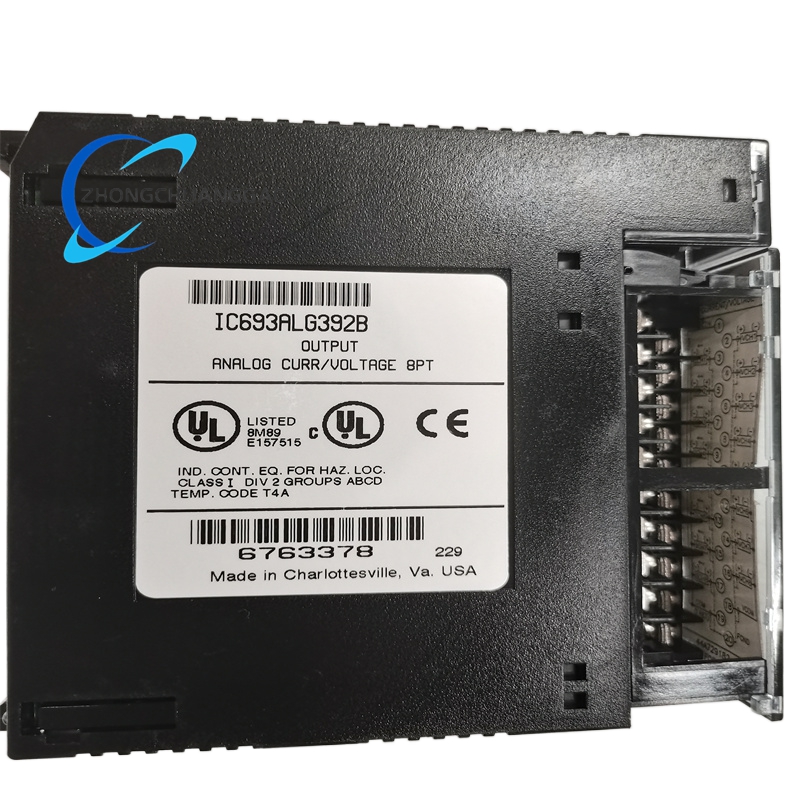

GE IC693ALG392
Technical Specifications:
- Output Channels: 8 single-ended channels
- Output Types: Configurable for voltage (0–10 V, ±10 V) or current (0–20 mA, 4–20 mA)
- Resolution: 15–16 bits for high-precision signal generation
- Update Rate: 8 milliseconds per channel (all channels updated every 8 ms)
- Power Supply: Isolated 24 VDC (ensures stability amid power fluctuations)
- Operating Temperature: -20°C to +50°C (storage range: -40°C to +70°C)

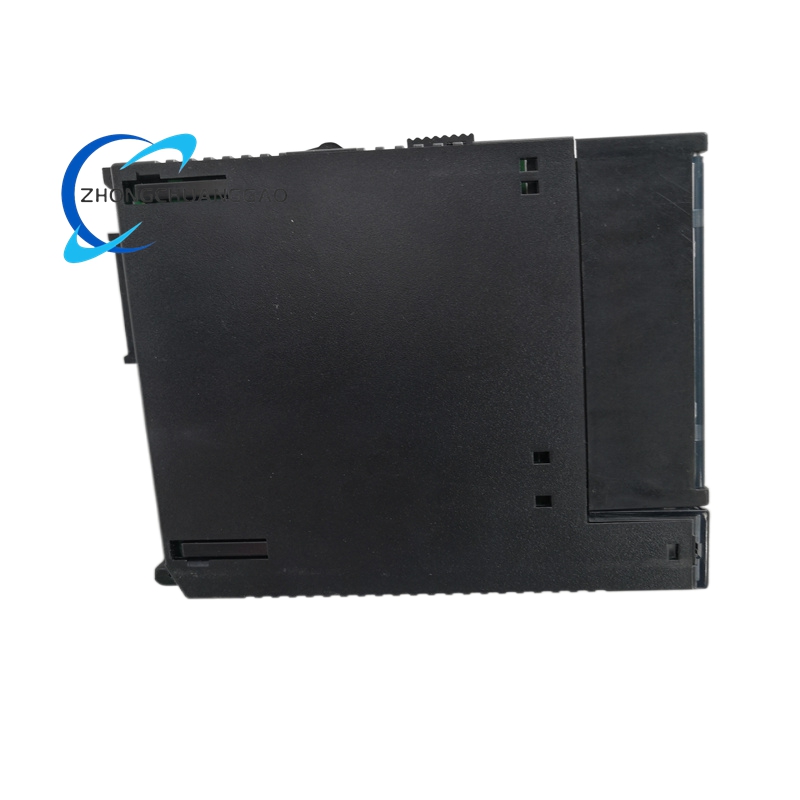

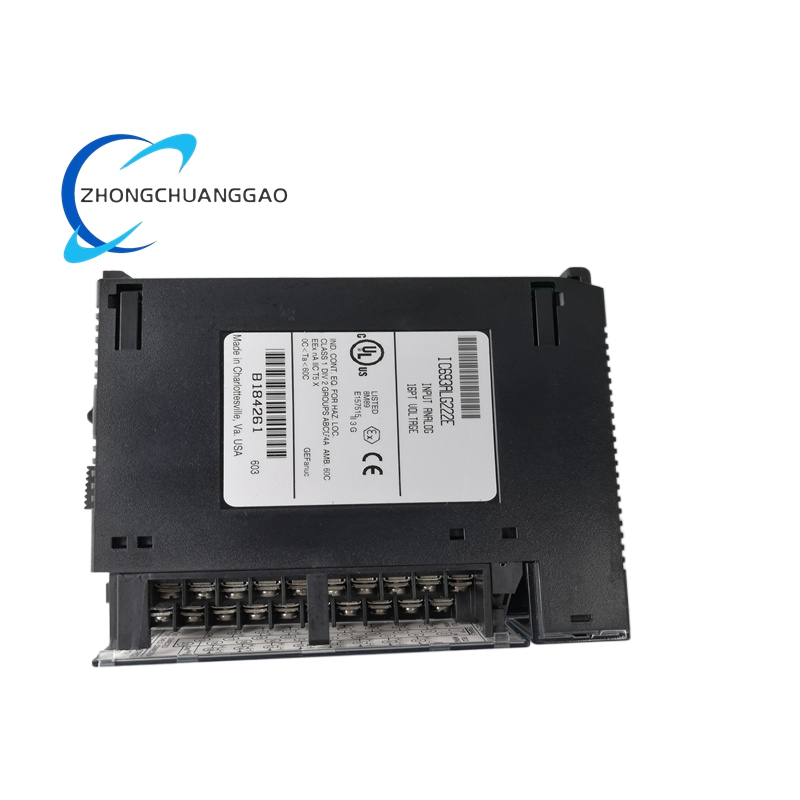

GE IC693ALG222
Technical Specifications:
- Input Type: Analog voltage input
- Number of Channels: 16 single-ended or 8 differential channels
- Input Range: Configurable for various voltage ranges, typically including 0-10V, ±10V, and other industry-standard ranges
- Resolution: 12-bit digital resolution for accurate signal conversion
- Accuracy: ±0.1% of full scale for precise measurements
- Conversion Time: Fast conversion rate, typically less than 1 ms per channel
GE IC676PBI016

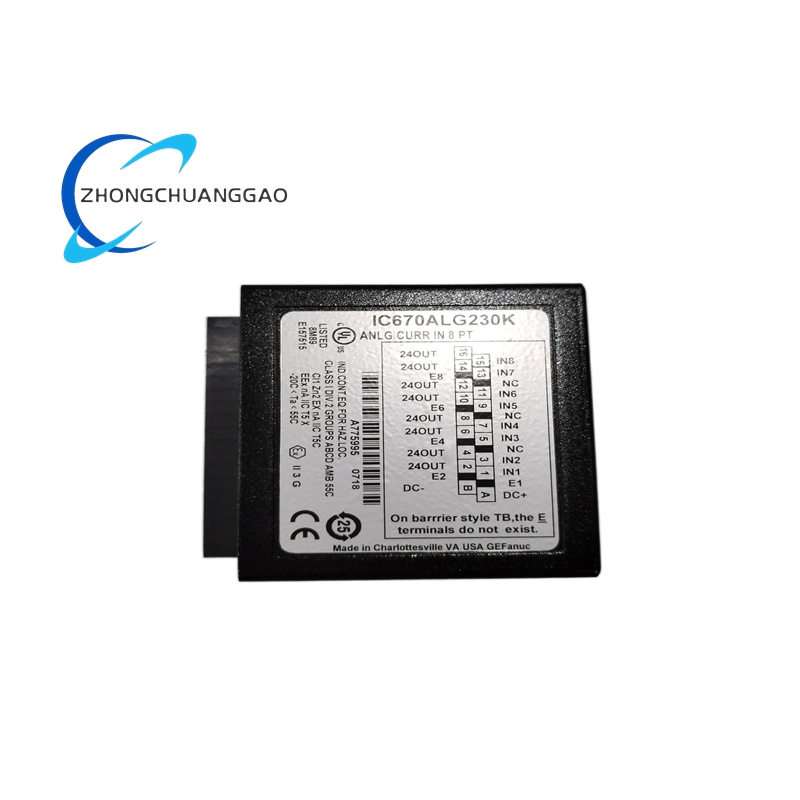

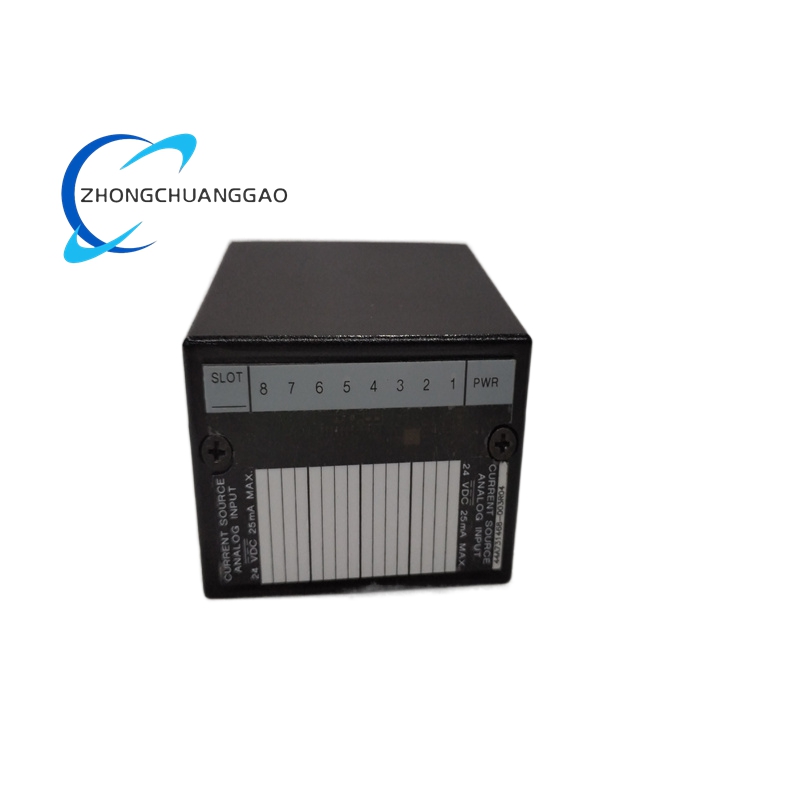

GE IC670ALG230
Technical Specifications:
- Input Channels: 8 single-ended analog current input channels.
- Supported Signal Ranges: Configurable for 0–20 mA or 4–20 mA current loops.
- Resolution: 12-bit digital resolution; 5.0 μA analog resolution.
- Conversion Time: 60 μs per channel (typical) under a 1 MHz module clock.
- Input Impedance: 2.87 kΩ.
- Isolation: Each channel provides ground and logic isolation rated at 1500 VAC for 1 minute (continuous 250 VAC).
